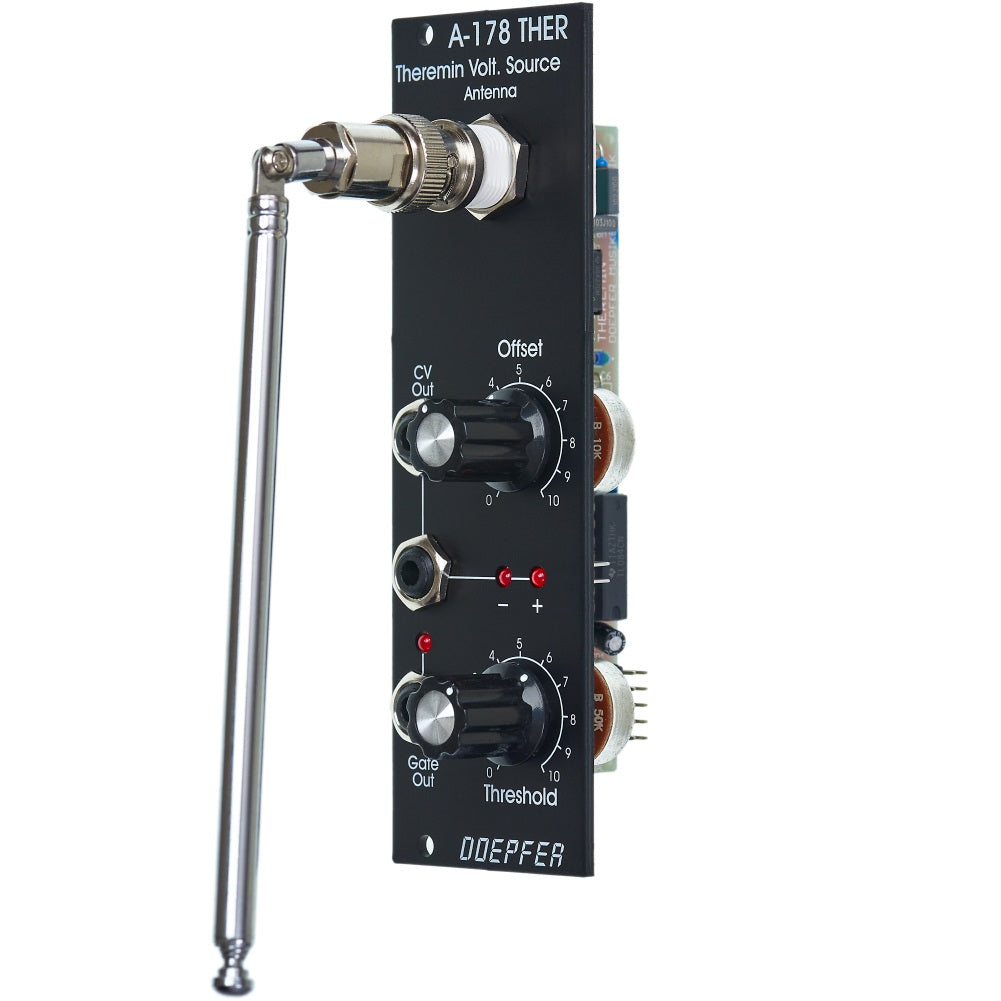

Theremin module for generating a variable control voltage by approaching/removing hand to/from an antenna.

The distance range is about 30 cm. Additionally the module is equipped with a Gate output with adjustable threshold level. To simulate the original Theremin two A-178V, a VCO (e.g. A-110) and a linear VCA (e.g. A-130 or A-132) are required. But of course the A-178V can be used to control other functions in the A-100 (e.g. filter frequency, modulation depth and/or speed, tempo, attack/decay time and so on).

The CV output voltage of the A-178V can range - according to the setting of the front panel controls - from -10V...+10V.

The gate output switches from 0V to about +10V.

Power consumption: 60mA at +12V and 20mA at -12V

Depth: 40mm
