4ms - VCA Matrix [VCAM]

  • HP:

The VCA Matrix from 4ms is a playable 4x4 matrix of 16 VCAs. Four CV or audio inputs can be... Read more Read more

$375.00

      Description

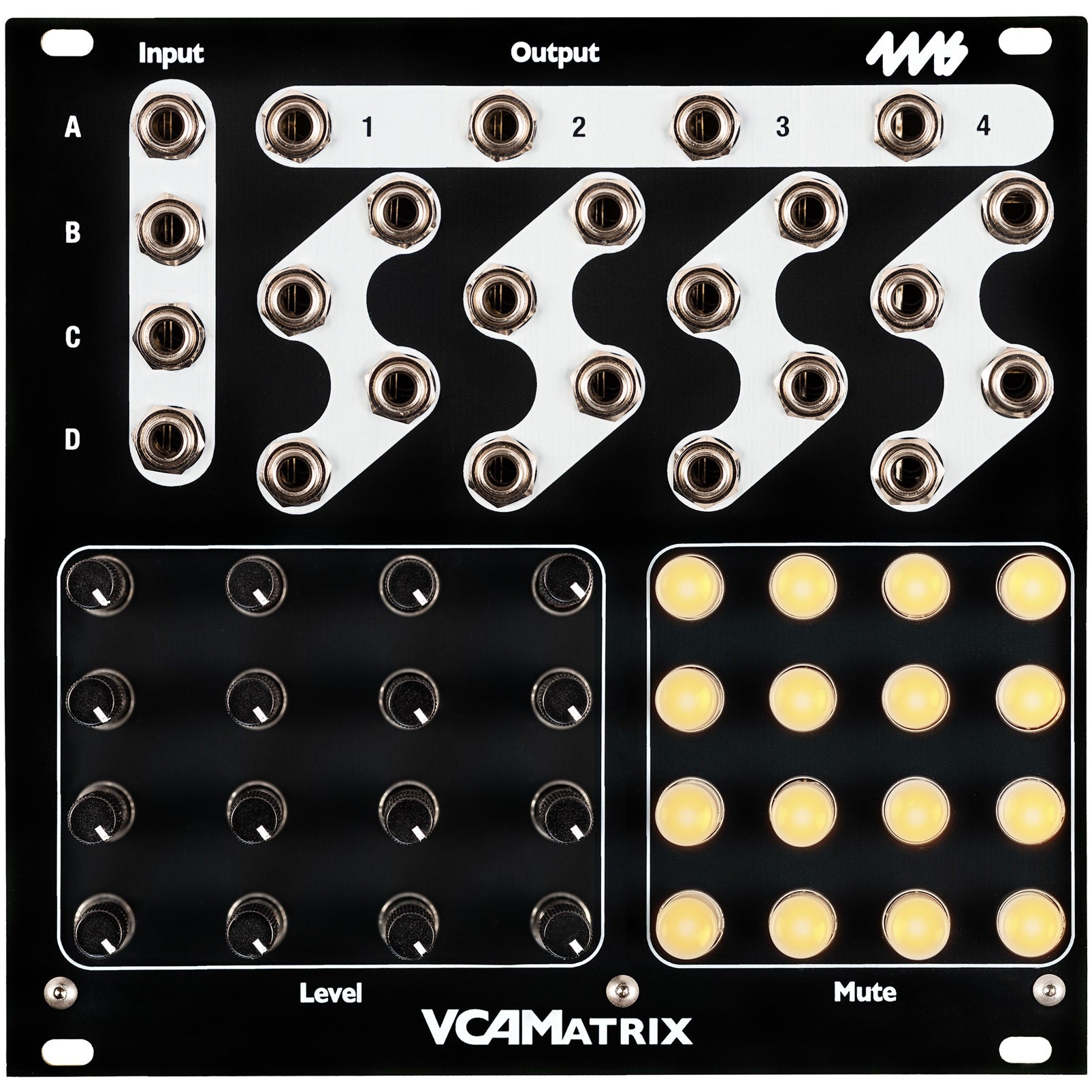

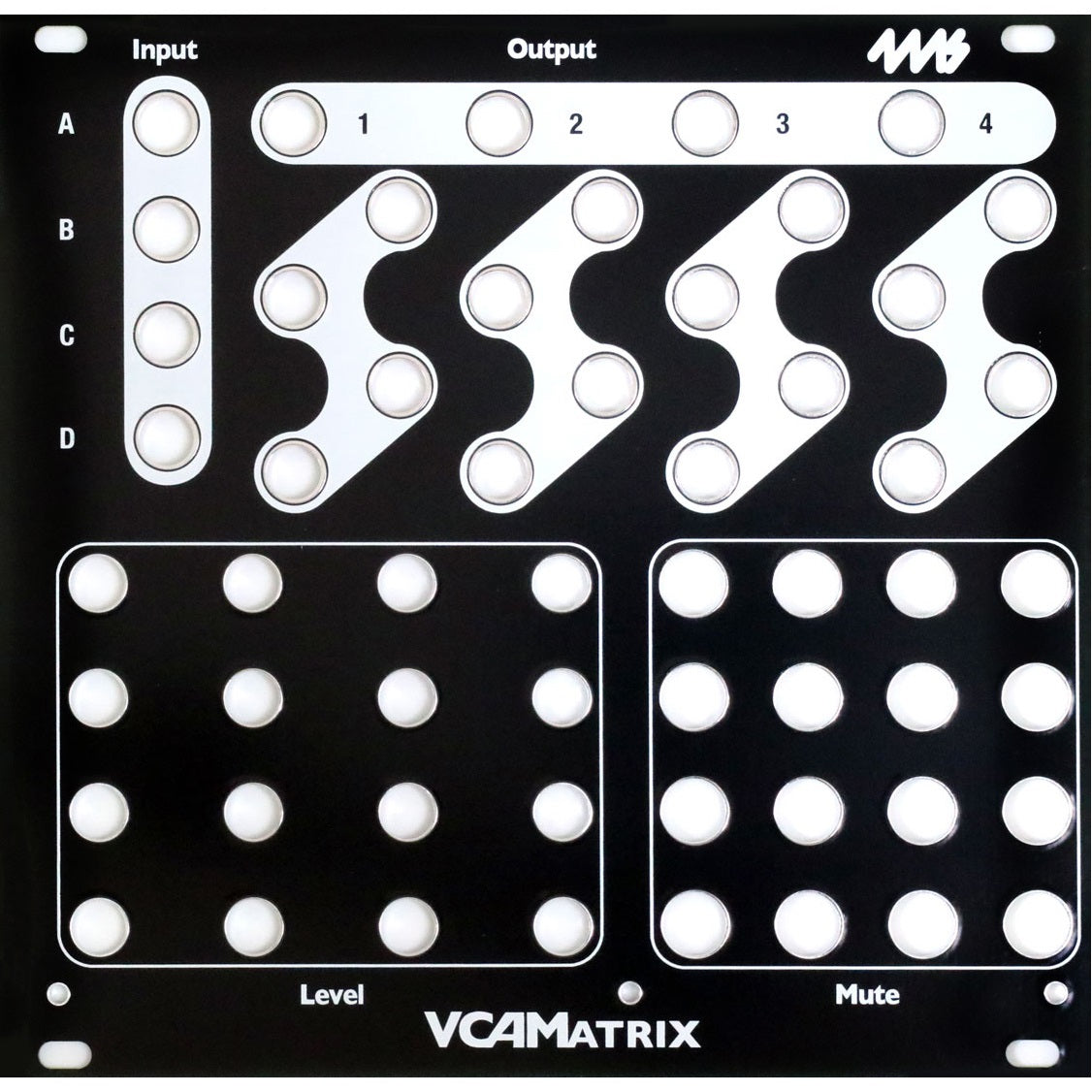

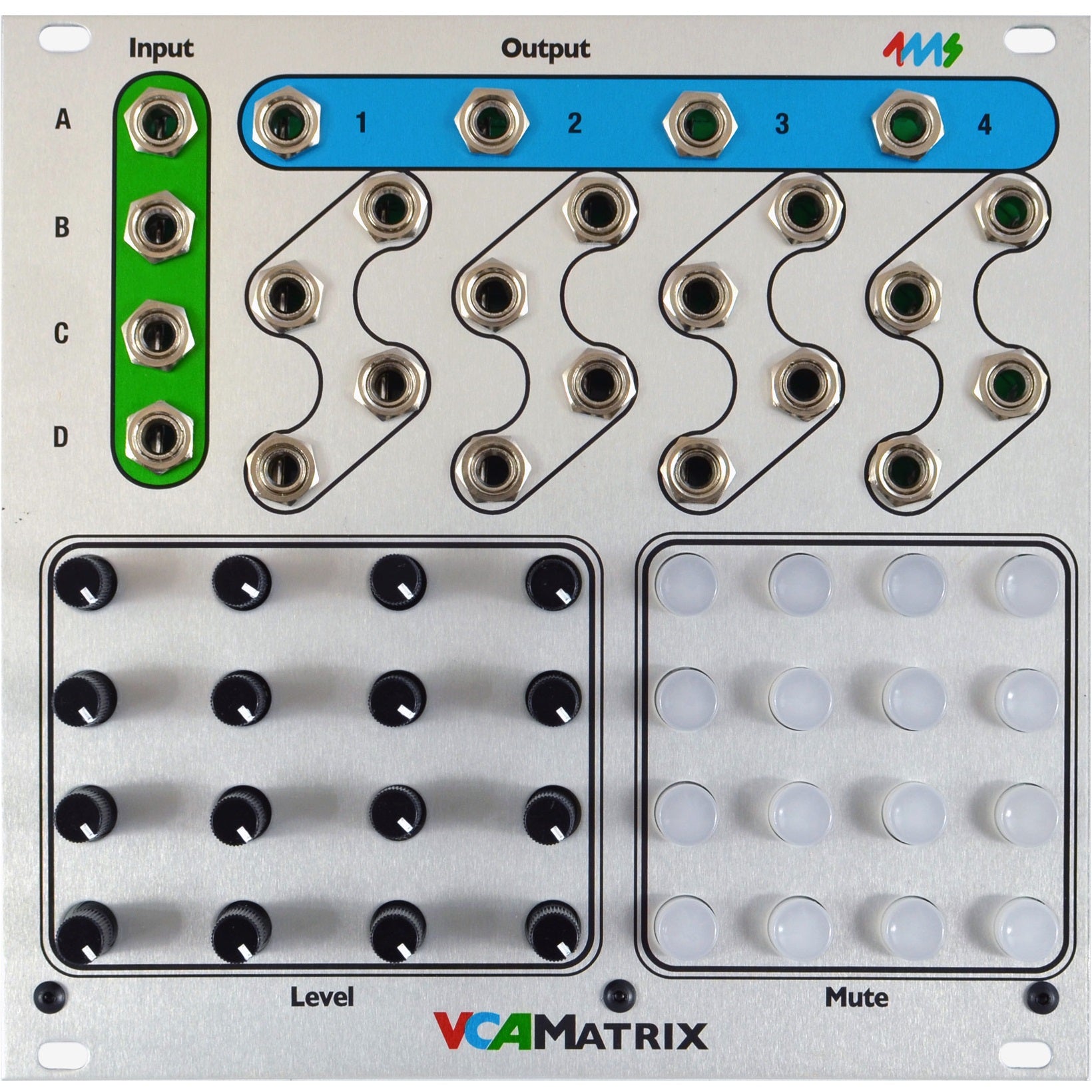

      The VCA Matrix from 4ms is a playable 4x4 matrix of 16 VCAs.

      Four CV or audio inputs can be routed in any amount/combination to four outputs, using the 16 CV control jacks, Level knobs, and Mute buttons.

      Basic Features:

      • 4 CV/audio inputs and 4 outputs (buffered and dc-coupled)
      • Full range (0Hz - 20kHz) for both Control and Signal inputs, allows for AM effects, etc.
      • 16 VCA's using high quality SSM chips
      • Attenuation/gain range from -100dB (mute) to 0dB (unity). Up to +20dB boost with trimpot adjustment.
      • Playable surface with 16 latching Mute LED buttons, used to mute each VCA individually (Mute button disconnects Control jack and Level knob, and fully attenuates the VCA)
      • LED button brightness indicates amount of attenuation and Control CV signal
      • 16 Control jacks for VCA level control
      • 16 Level knobs attenuate the incoming Control signals. The Level knobs act as manual level controls when nothing is plugged into the Control jack
      • Exponential VCA response in low control voltage range, pseudo-log response in higher voltage range.
      • "Soft Limit" effect limits gain to prevent clipping, while still responding to higher Control voltages with more "punch" and wider pulses

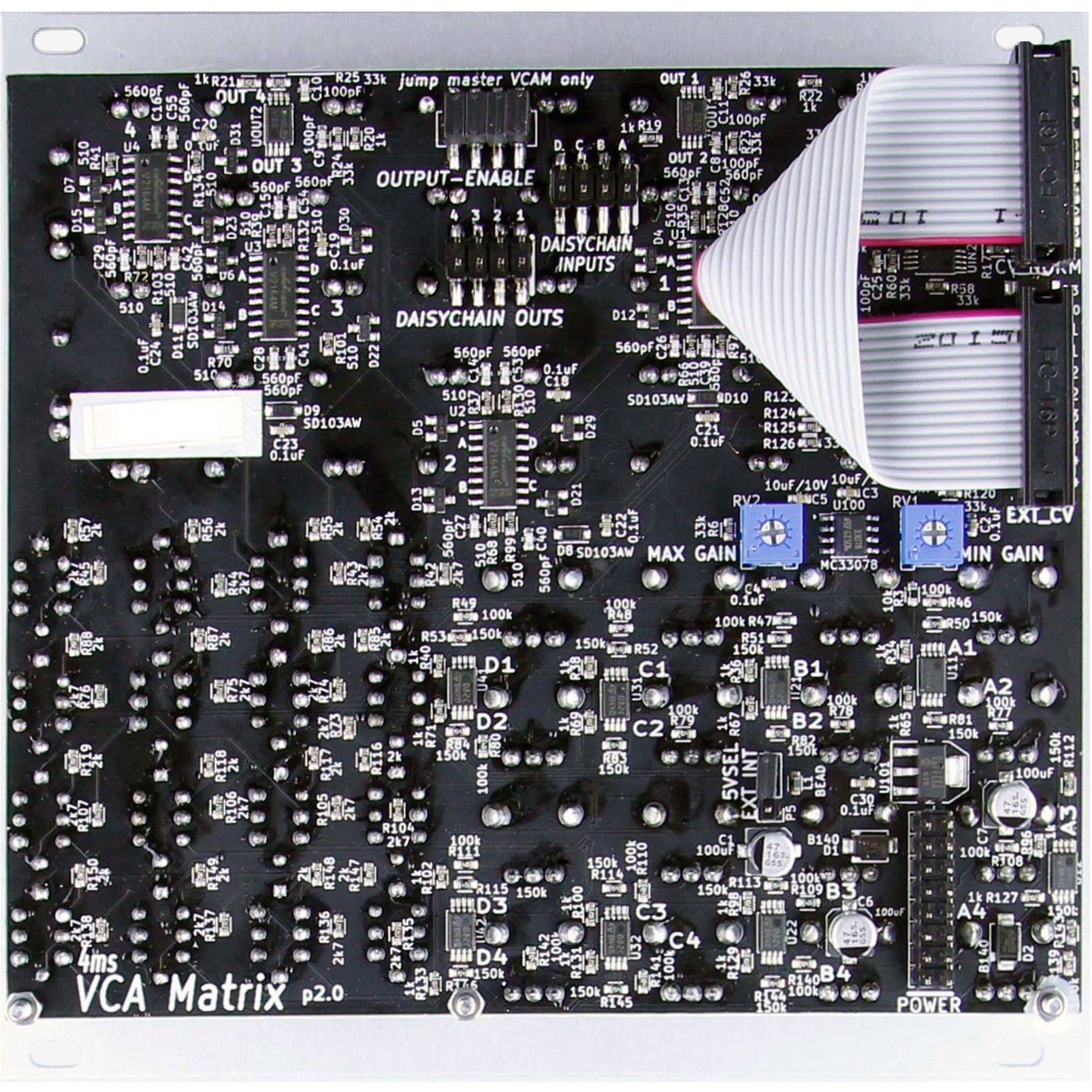

      • Matrix Expandability: VCA Matrices can be connected to form a larger matrix using headers on the back (4x8, 8x8, 12x4, etc)
      • Control Expandability: 16-pin header on back side of PCB allows an external device to control all VCAs: e.g. patch recall, patch sequencing, preset patterns such as quadrature panning, etc.
      • Suitable as a 4x4 mixer, splitter, dynamic signal router, limited waveshaper, etc.

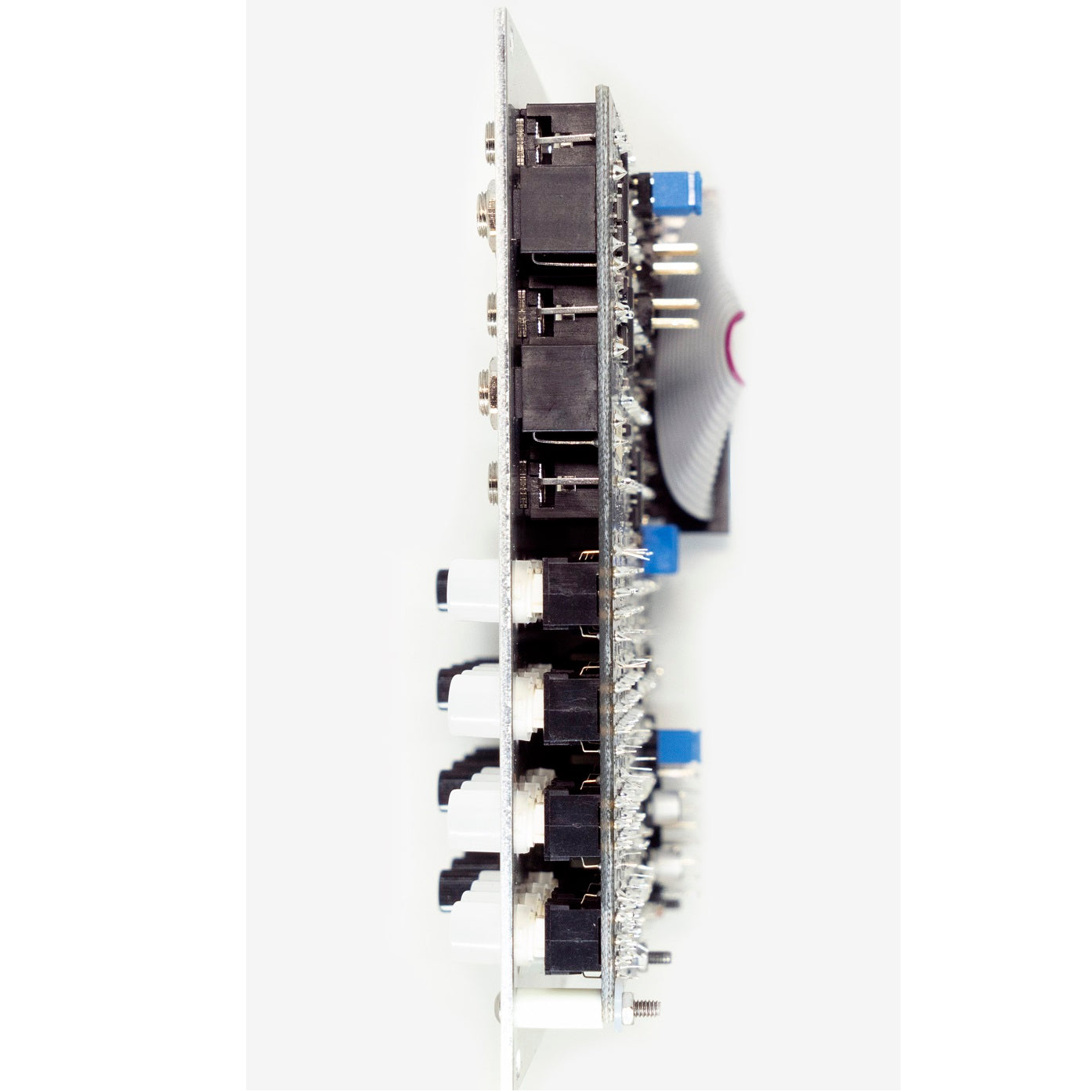

      Electrical and Mechanical Specifications:

      • Module size:
        • 26HP Eurorack format module
        • 1.0" (25mm) deep
      • Power consumption:
        • A jumper selects using +5V from the power supply, or generating +5V on-board from the +12V rail.
        • -12V rail: 110mA max
        • +12V rail:
          • 80 max with jumper selecting external 5V
          • 110mA max with jumper selecting internal 5V.
        • +5V rail:
          • 40mA max with jumper selecting external 5V
          • not used (0mA) with jumper selecting internal 5V.
      Included with the VCAM:
      • 16-to-16 pin power cable
      • 4 M3 Knurlie screws
