Manufacturer Description:

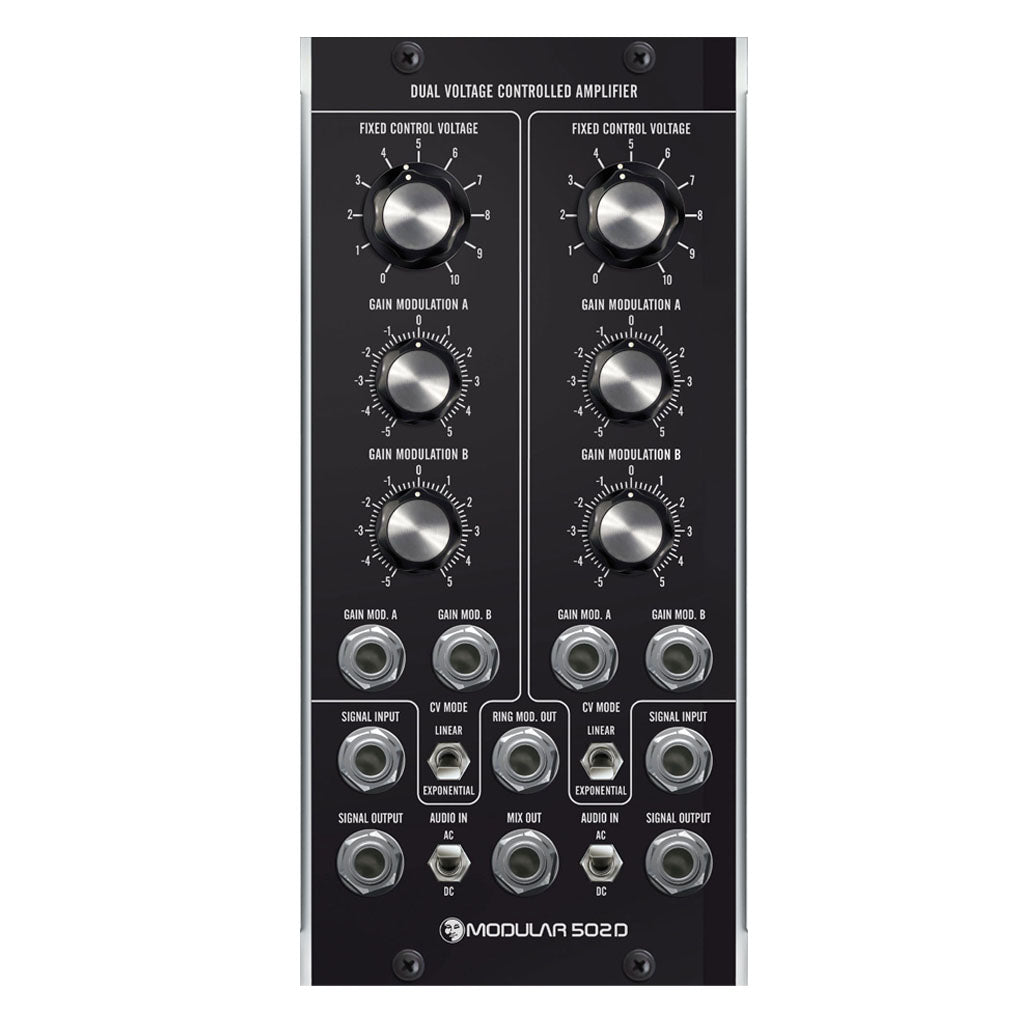

The M 502 D DUAL VCA module combines two separate voltage controlled amplifier circuits with each two modulation inputs, switch-able linear/exponential mode, switchable AC/DC mode (audio signals/control voltages), single, mix and ring modulator outputs.

The module can act as two independent mono or one stereo VCA, as dual channel VC mixer, as auto-pan module, as ring modulator and voltage controlled attenuator for control voltages.

Normalized connections:
· the right VCA’s gain mod. input A is daisy-chained to gain mod. input A of the left VCA
· the right VCA’s gain mod. input B is daisy-chained to gain mod. input B of the left VCA
· the right VCA’s signal input is daisy-chained to the signal input of the left VCA

This allows controling both VCAs by a single control voltage
