Moon Modular - 511AC: Quad Voltage Controlled Gate Delay

Manufacturer Description:

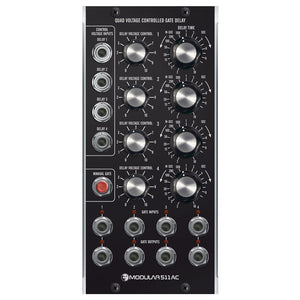

The M 511AC QUAD GATE DELAY combines four voltage controlled gate delay circuits in one module, which delay the incoming gate signals in a range from ca. 1 ms up to 20 seconds. Each delay unit hat its own pair of display LEDs.

The four gate in/outputs are internally connected like this:

Output 1 goes into input 2,

output 2 goes into input 3 and

output 3 goes into input 4.

This allows complex delay combinations without external patching.

The ‘Manual Gate’ button affects delay

input 1.

The time control voltage inputs are “chained“: i. e. a control voltage in the input 1 jack controls the inputs 2/3/4 as well, if there is nothing else patched.

(Input 1 is internally connected to +10 volts if nothing is patched).

Control range 0-10 volts, higher control voltages give longer delay times.
