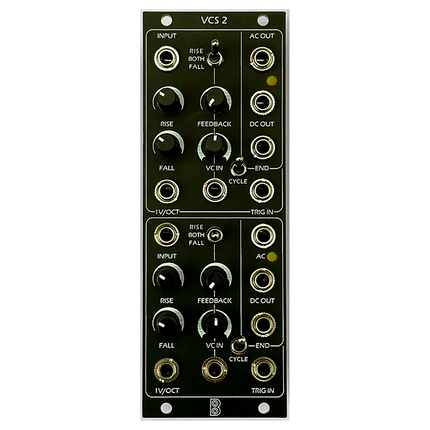

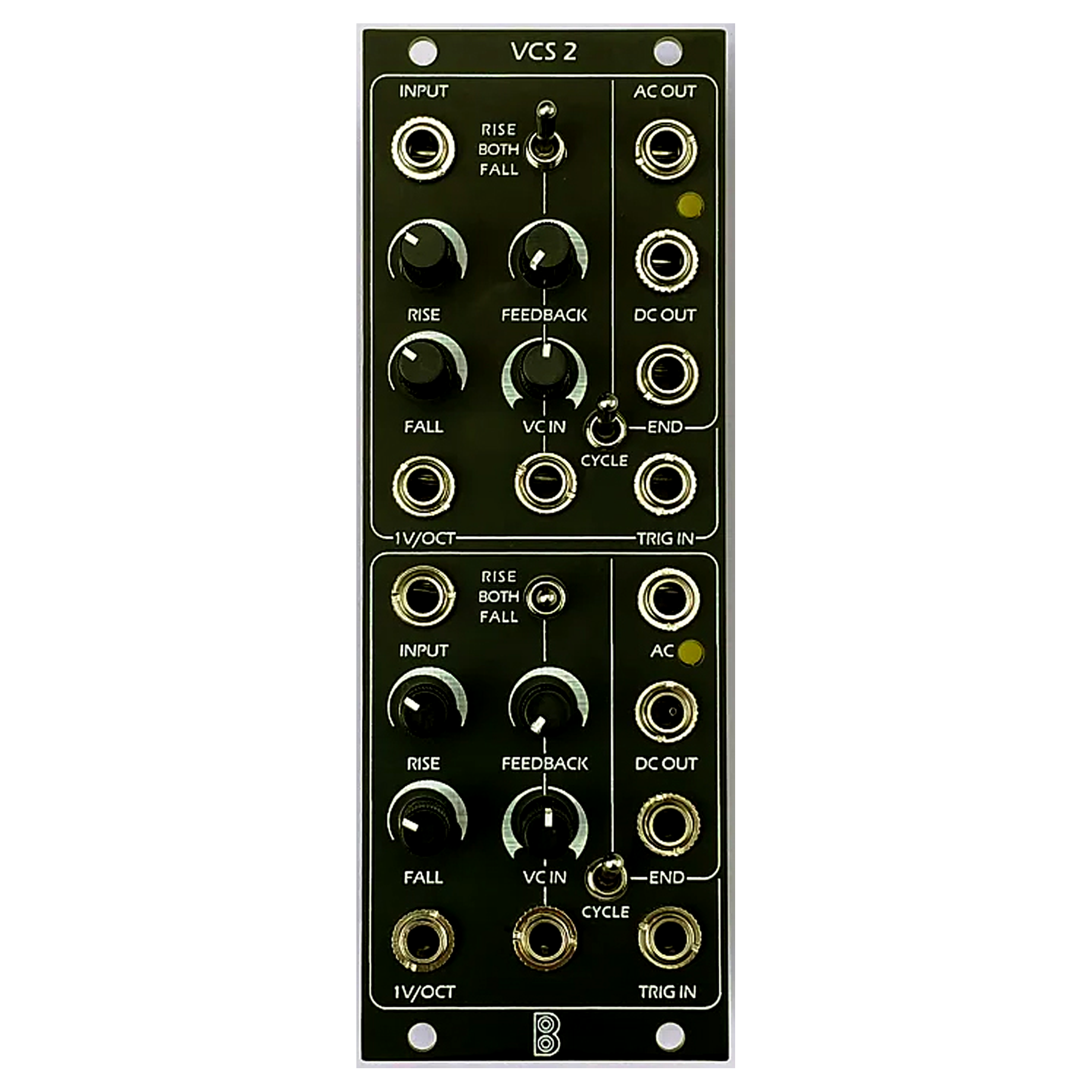

Bananalogue - VCS 2

  • HP: 9

the bananalogue serge vcs was the first west coast function generator for the eurorack format. to celebrate the 20th anniversary... Read more Read more

$220.00

      Description

      the bananalogue serge vcs was the first west coast function generator for the eurorack format. to celebrate the 20th anniversary of this legendary module, bananalogue is producing a new version, the vcs 2. now a dual unit, smaller and better than ever, this is the ultimate pure-analog multifunction eurorack module.

      the vcs 2 is a unity gain voltage follower. the rising and falling slopes are independently and jointly voltage controllable over a wide range. an extremely versatile module, here are some patch ideas for creating and modifying cv and audio:

      features:
      vc transient envelope generator
      a pulse at the trigger input will start the envelope, or a held gate input will sustain the level and the envelope will fall when the gate goes low. rise and fall are independently and jointly voltage controllable, with variable linear and exponential wave shapes.

      vc portamento
      voltage is slewed according to the rise and fall times.

      vc oscillator
      while not as wide ranged, or accurate as a dedicated oscillator module, the vcs 2 is still an excellent audio source. the output wave can be swept from triangle to saw with linear and non-linear waveforms. end out also produces a pulse waveform.

      vc lfo
      when the cycle switch is thrown, the trigger input is connected internally to the end trigger output, creating a vc clock with variable waveform and independent rise and fall times.

      vc non-linear audio processor
      if an audio rate signal is slewed, the module responds like a vcf and vca. the signal can be low-pass filtered down essentially to silence, similar to a low-pass gate.

      envelope follower
      positive and negative peak detection envelope follower.

      vc pulse delay
      trig input starts the envelope and a gate will be produced again at the "end out" when the envelope completes its cycle.

      sub-harmonic generator
      if a series of triggers are applied to the vcs 2 faster than the total rise and fall times, the module will divide the incoming signal by a whole number. in the audio range the output will be the sub-harmonic series.

      specifications:
      9 hp
      45ma +12v
      15ma -12v
      26mm mounting depth
