Name: Flame - C-3 Mk2 KnobRekorder
Brand: Noisebug
Price: 179.00 USD
Availability: InStock

Product form

Flame - C-3 Mk2 KnobRekorder

Knob recorder The FLAME "C-3 MK2" is a three-channel module for recording and playing back movements of controllers.Those can be... Read more Read more

Description

Knob recorder

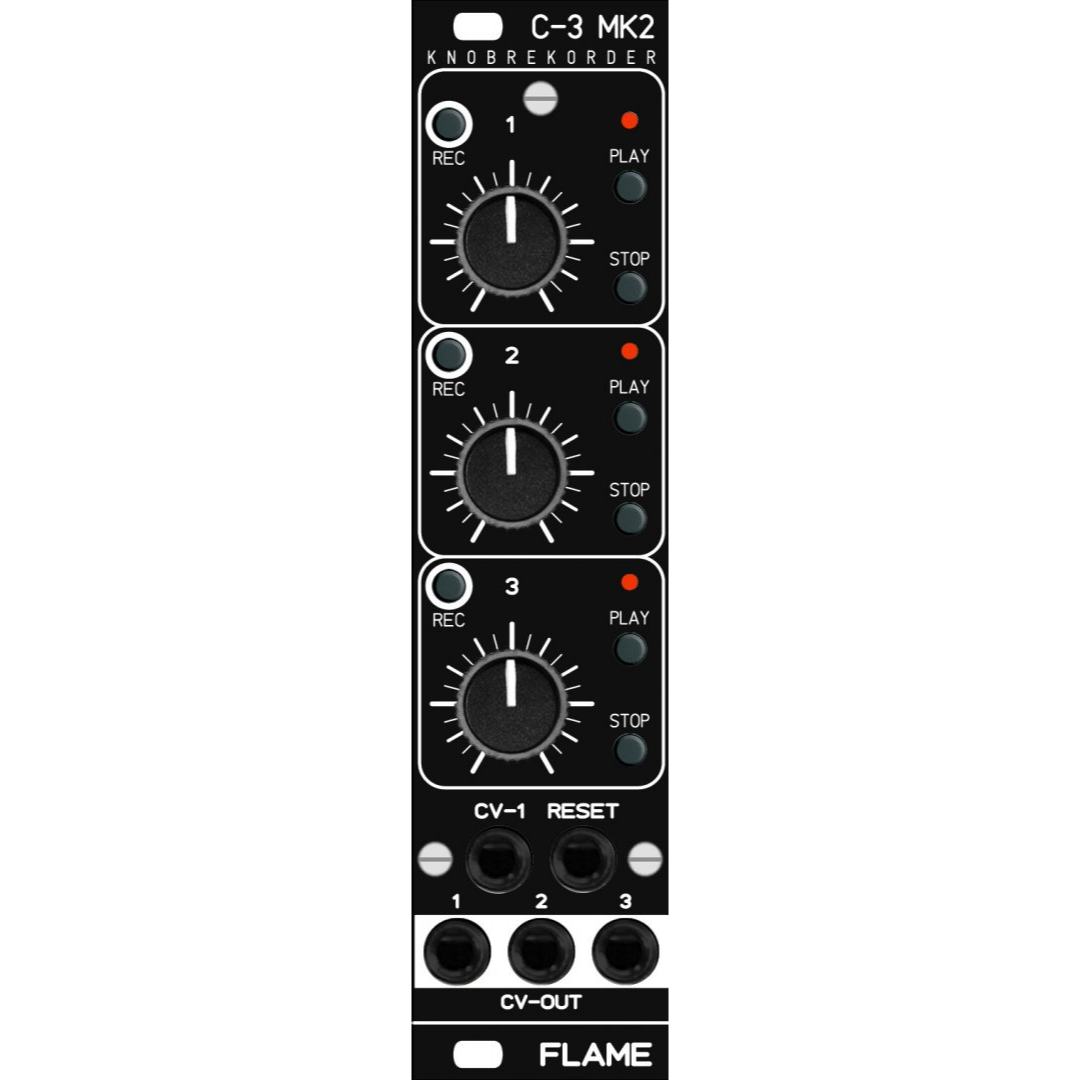

The FLAME "C-3 MK2" is a three-channel module for recording and playing back movements of controllers.
Those can be recorded with each channel´s individual knob. The movements will be output as control voltages.
The recording time per track is over one minute. The playback speed is adjustable.
All three tracks have a common reset input. The track data remains permanently stored (battery-backed memory).
The module can be globally switched to bipolar or unipolar voltage range (switch on the PCB).

technical details:

3 channels with each one control
recording time per control: over one minute
adjustable playback speed
resolution 12Bit, sampling rate ca. 300 Hz
modes: playback one shot or playback loop
punch-in record
switchable between playback and potentiometer
non-volatile battery buffered memory
global voltage range setting per jumper to bipolar +/-5v or unipolar 0-10v

inputs and outputs:

3 CV outputs bipolar +/-5v or unipolar 0-10v
additional CV input on track 1: bipolar +/-5v or unipolar 0-10v
common reset input for all three tracks

$179.00Excl. VAT
