Tangible Waves - MIXCON JACKOUT

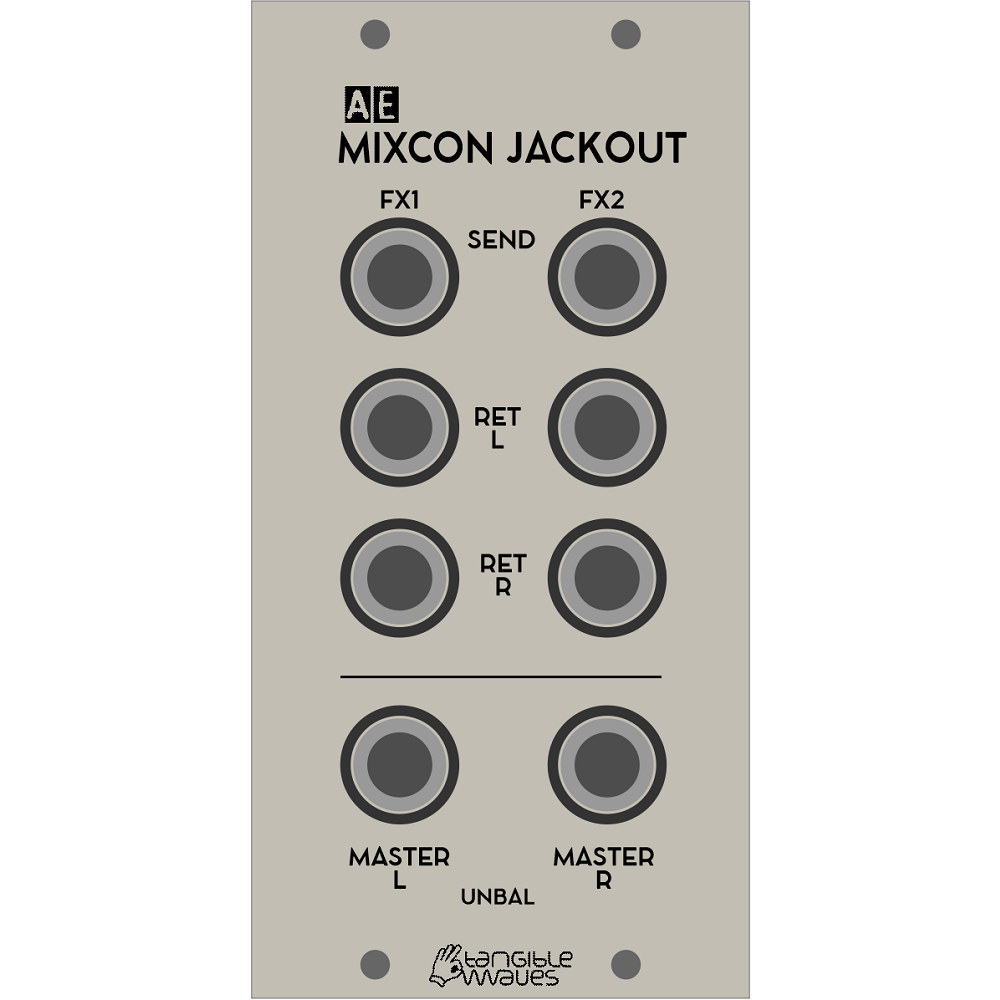

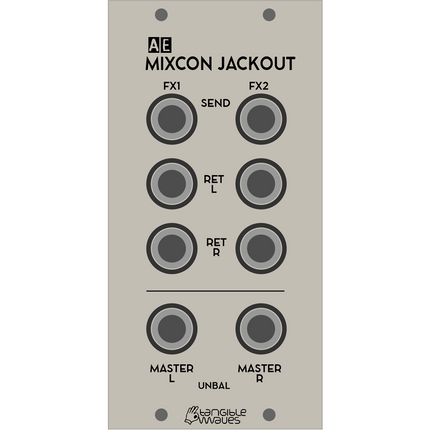

This module adds the convenience of plugging 1/4 inch (6.5mm) cables straight into the AE Modular without having to use any adapter cables. It is not a freestanding design, it needs to MIXCONSOLE to work, and has to be mounted adjacent to that module where it connects via a short cable at the back.
Inputs
These are acquired from the Mixconsole, except...
- FX1 Return L - the level of this signal is controlled by the FX1 rtn lvl knob (on the Mixconsole).
- FX1 Return R - the level of this signal is controlled by the FX1 rtn lvl knob (ditto).
- FX2 Return L- the level of this signal is controlled by the FX2 rtn lvl knob (ditto).
- FX2 Return R- the level of this signal is controlled by the FX2 rtn lvl knob (ditto).
Outputs
- FX1 Send - Mono out controlled by the 4 FX1 send knobs (on the MIxconsole).
- FX2 Send - Mono out controlled by the 4 FX2 send knobs (ditto).
- Master L Left signal of the stereo mix, Main out of the Mixconsole.
- Master R Right signal of the stereo mix, Main out of the Mixconsole.
