Mehr Music Machines - Poodleface
$199.00Excl. VAT
Description

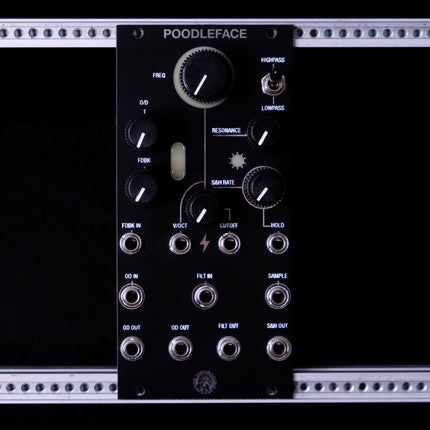

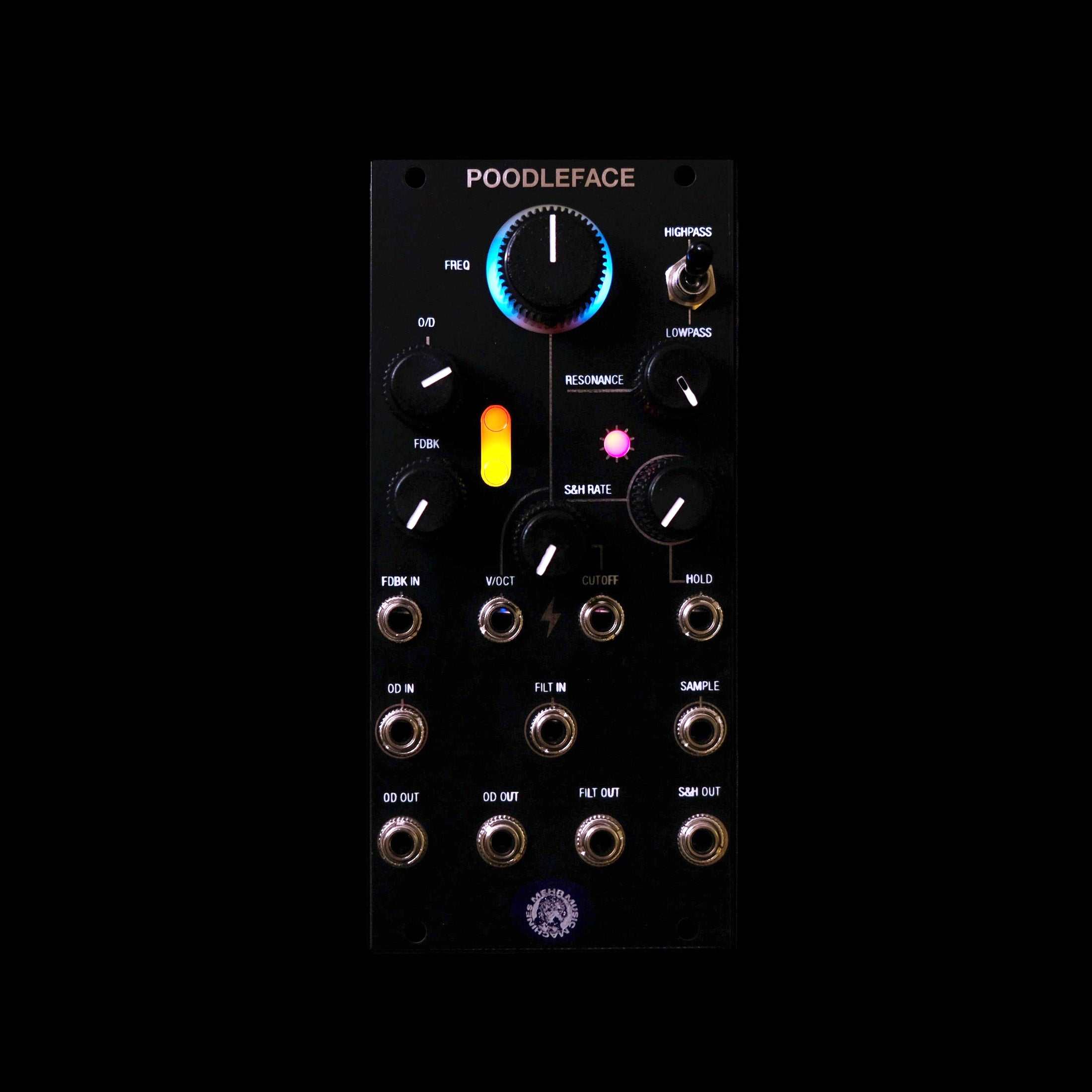

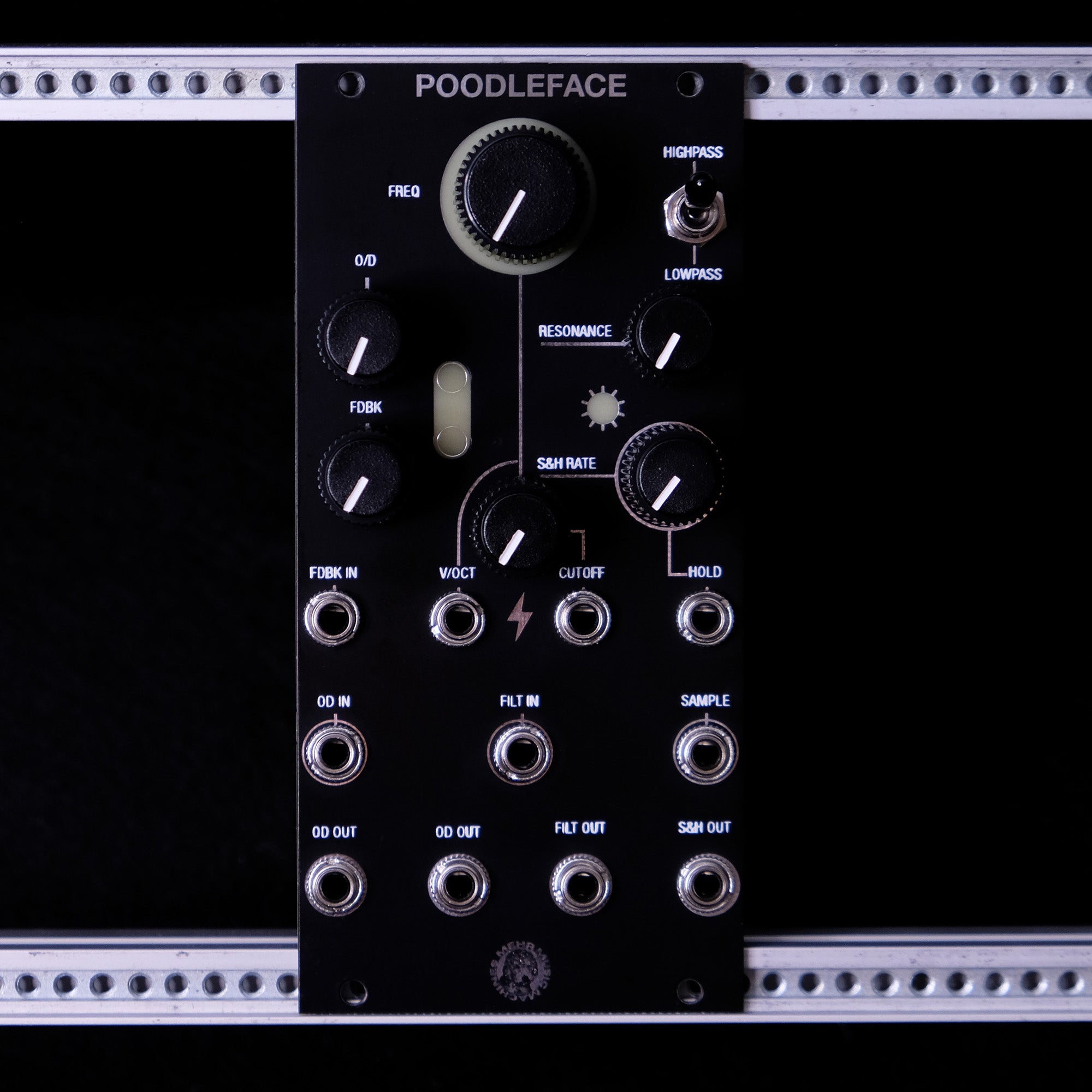

Poodleface - is a 3-in-1 fully analog dirty good time. Three unique effects that can be used individually or collectively. Self-patching is encouraged!
OVERDRIVE:
Discrete analog overdrive circuit inspired by the mini Moog mixer section. Tonal characteristics vary depending on the amplitude of your source signal. Ranging from soft-saturation to full-blown transistor overdrive and distortion. Use the second pair of in/out to feed the signal back into itself for wild “sub-octave” effect . Or, send your overdriven signal into the neighboring filter and then back into the overdrive for untamed feedback effects. This circuit is designed to be pushed to the max! For line-level signals, it's recommended to scale up to Eurorack levels for best results.
FILTER:
Classic OTA-style analog high-pass/lowpass resonant filter. The filter can be soft and sweet, or, add a little resonance and prepare for some angry screams. For both lo & hi pass configurations, the filter is capable of self-oscillation that can be used as a dirty sine wave oscillator. Volt per octave pitch tracking, and CV modulation with attenuator included for full control over the shape of your sound.
SAMPLE & HOLD:
A precision sample & hold circuit with a low droop rate. Fully analog. Normalled internal clock is configured for some audio rate decimation effects to mid-speed sample & hold. However, the external clock input allows you to use this S&H section as a traditional sample and hold (semi-random/stepped voltage source, sample rate reduction). Hint, for wild sample rate audio effects; the sample and hold can be clocked by patching the poodle’s filter output into the rate input. Just max out the resonance and modulate the cutoff to taste.
Eurorack
Eurorack is Doepfer's 3U modular format
