Description

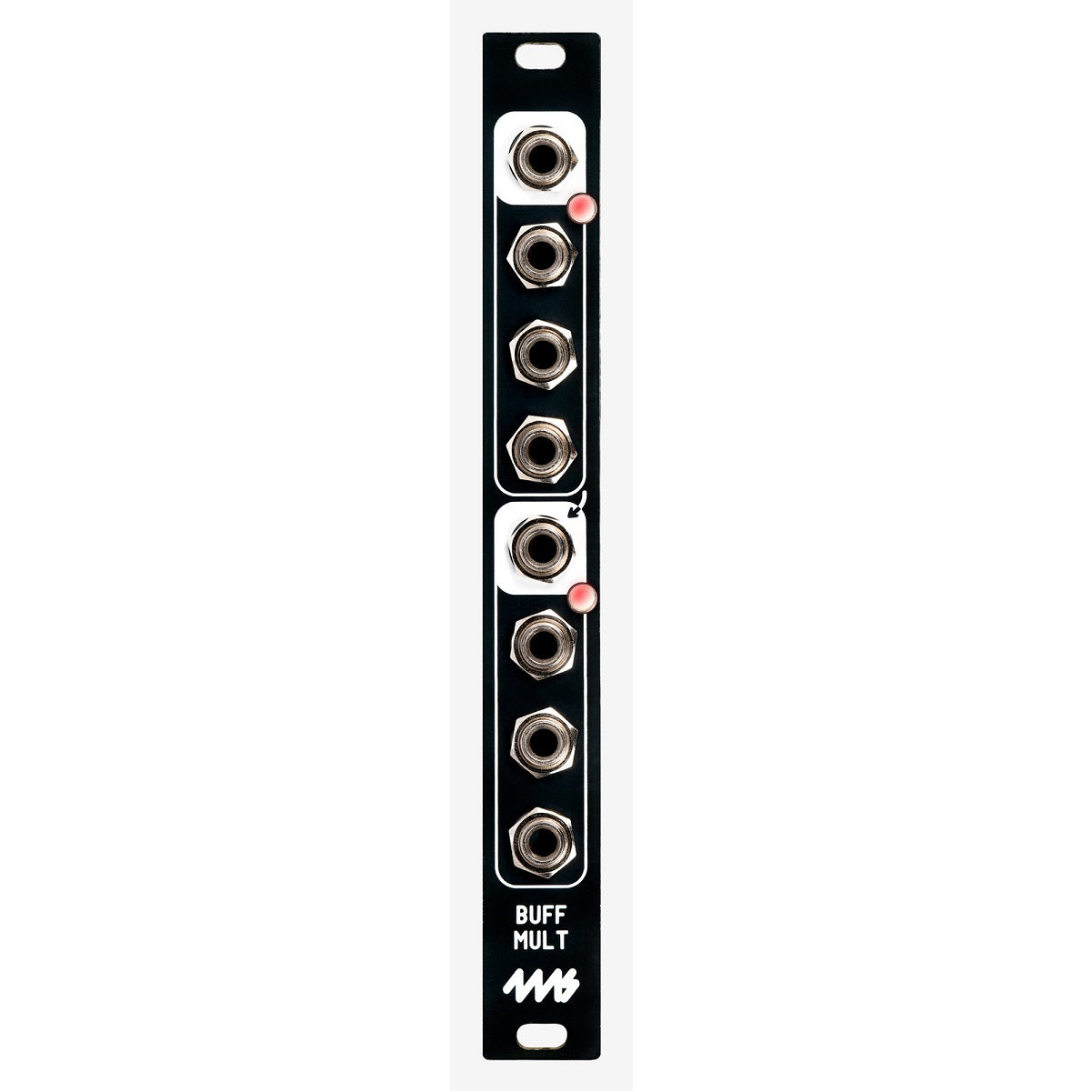

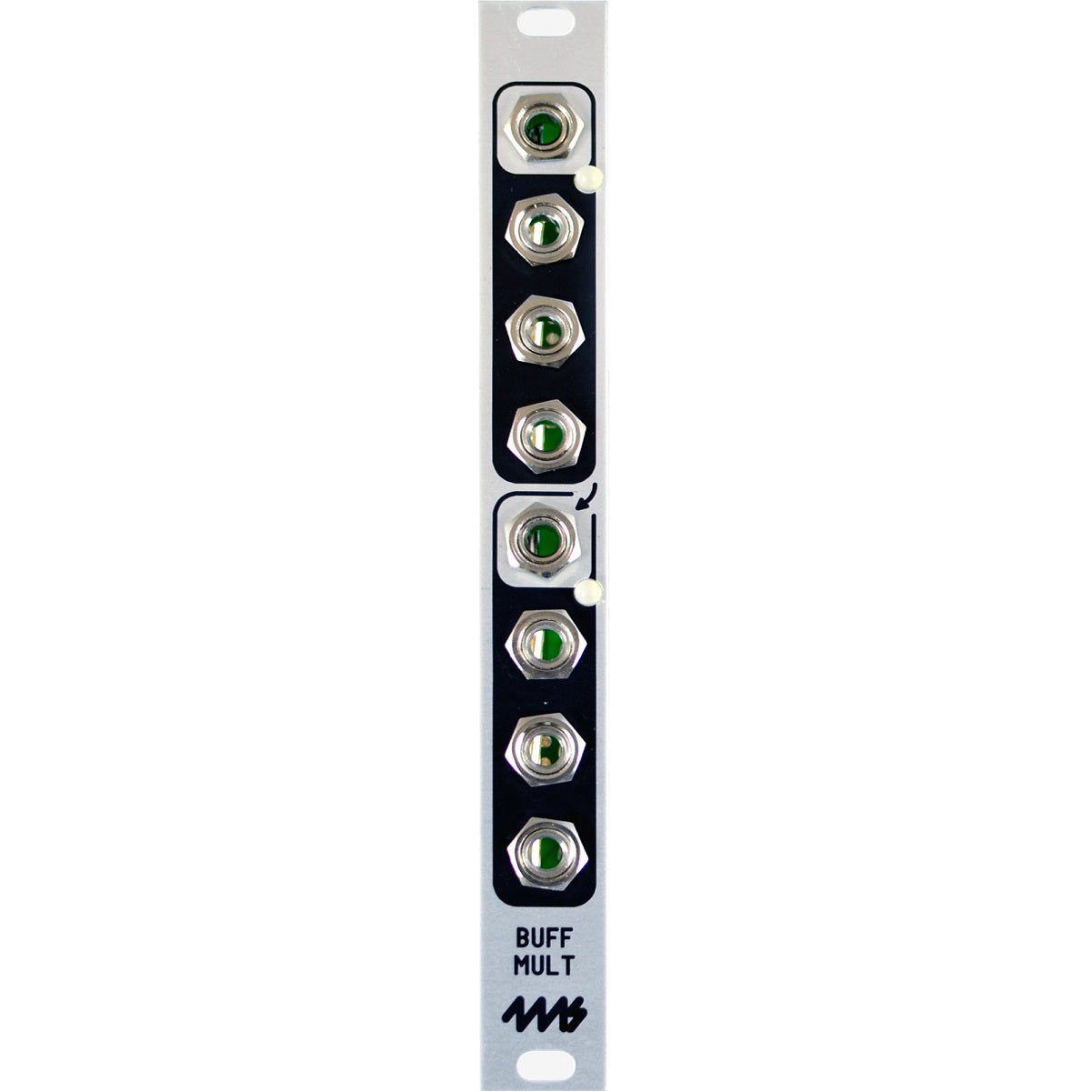

The Buff Mult is a buffered multiple with LED indicators to show positive and negative voltages. Using wide bandwidth opamps, it functions as a dual 1-to-3 or a single 1-to-6 mult for audio, video, or CV signals.
- Two independent buffered multiples, normalized together
- Each channel has one input and three outputs that are high-grade copies of the original
- Each channel has a bi-color LED to indicate positive (white) or negative (red) signal
- Video-rate opamps, for greatest bandwidth of any buffered mult. Fully compatible with LZX and video signals
- Bottom channel is normalized to top channel, for a 1-to-6 multiple
- Useful for detecting signals, troubleshooting patches, isolating modules, preventing "thump" or glitches during live patching, and protecting outputs
- Module size:
- 3 HP Eurorack format module
- 10-pin Eurorack power header

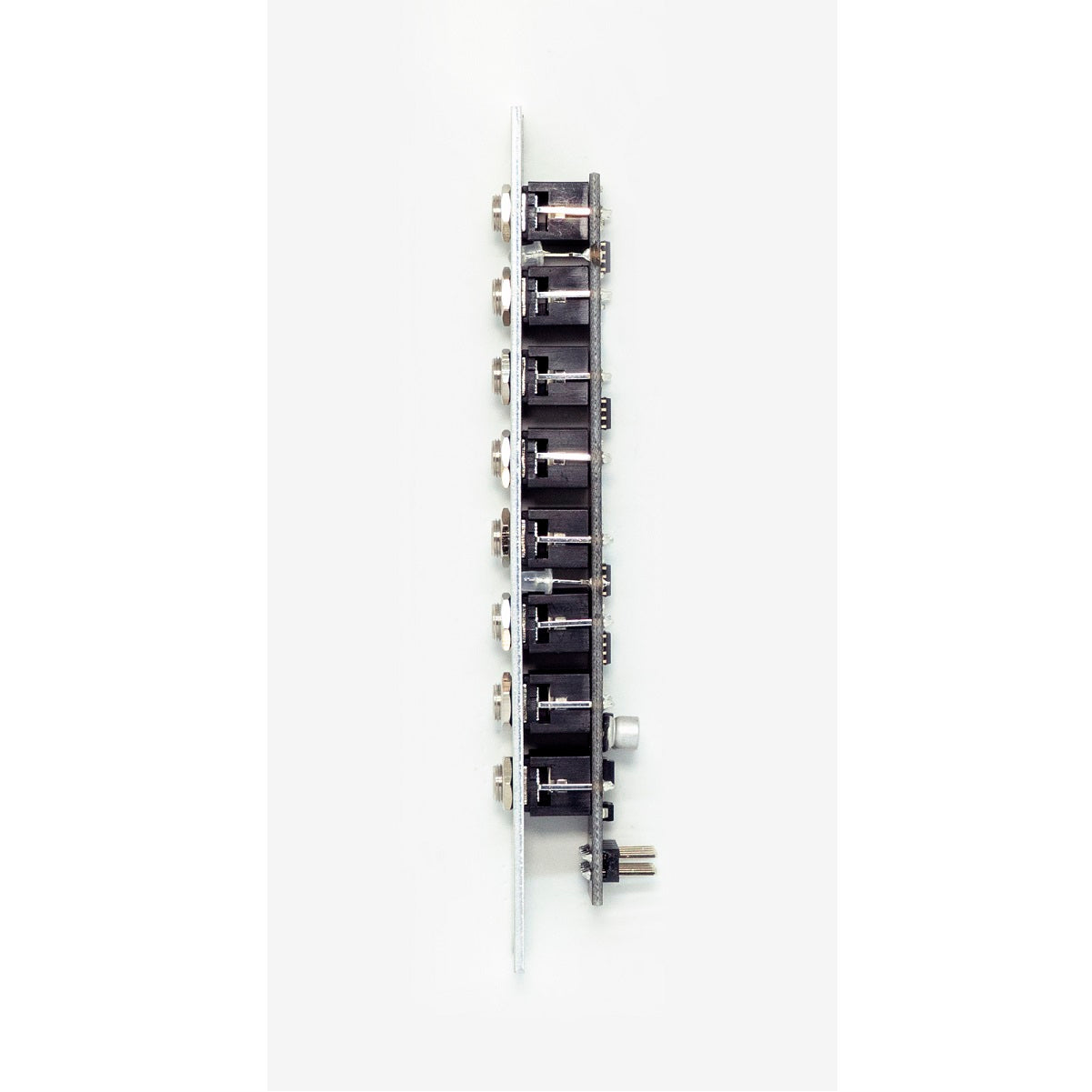

- 0.75" (18mm) deep
- Power consumption:
- +12V rail: 13mA
- -12V rail: 13mA
- +5V rail: Not used (0mA)
- 10-to-16 pin power cable
- M3 Knurlie screws
Note: The Buffered Mult is not a precision multiple and should not be used where exact gain and offset are required (e.g. precisely tuned 1V/oct signals)
4ms - Buffered Multiple [BUFF MULT]
$79.00
Out of Stock
Description
The Buff Mult is a buffered multiple with LED indicators to show positive and negative voltages. Using wide bandwidth opamps, it functions as a dual 1-to-3 or a single 1-to-6 mult for audio, video, or CV signals.
- Two independent buffered multiples, normalized together
- Each channel has one input and three outputs that are high-grade copies of the original
- Each channel has a bi-color LED to indicate positive (white) or negative (red) signal
- Video-rate opamps, for greatest bandwidth of any buffered mult. Fully compatible with LZX and video signals
- Bottom channel is normalized to top channel, for a 1-to-6 multiple
- Useful for detecting signals, troubleshooting patches, isolating modules, preventing "thump" or glitches during live patching, and protecting outputs
- Module size:
- 3 HP Eurorack format module
- 10-pin Eurorack power header
- 0.75" (18mm) deep
- Power consumption:
- +12V rail: 13mA
- -12V rail: 13mA
- +5V rail: Not used (0mA)
- 10-to-16 pin power cable
- M3 Knurlie screws
Note: The Buffered Mult is not a precision multiple and should not be used where exact gain and offset are required (e.g. precisely tuned 1V/oct signals)
