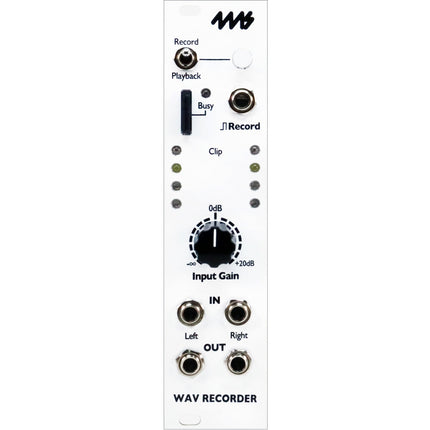

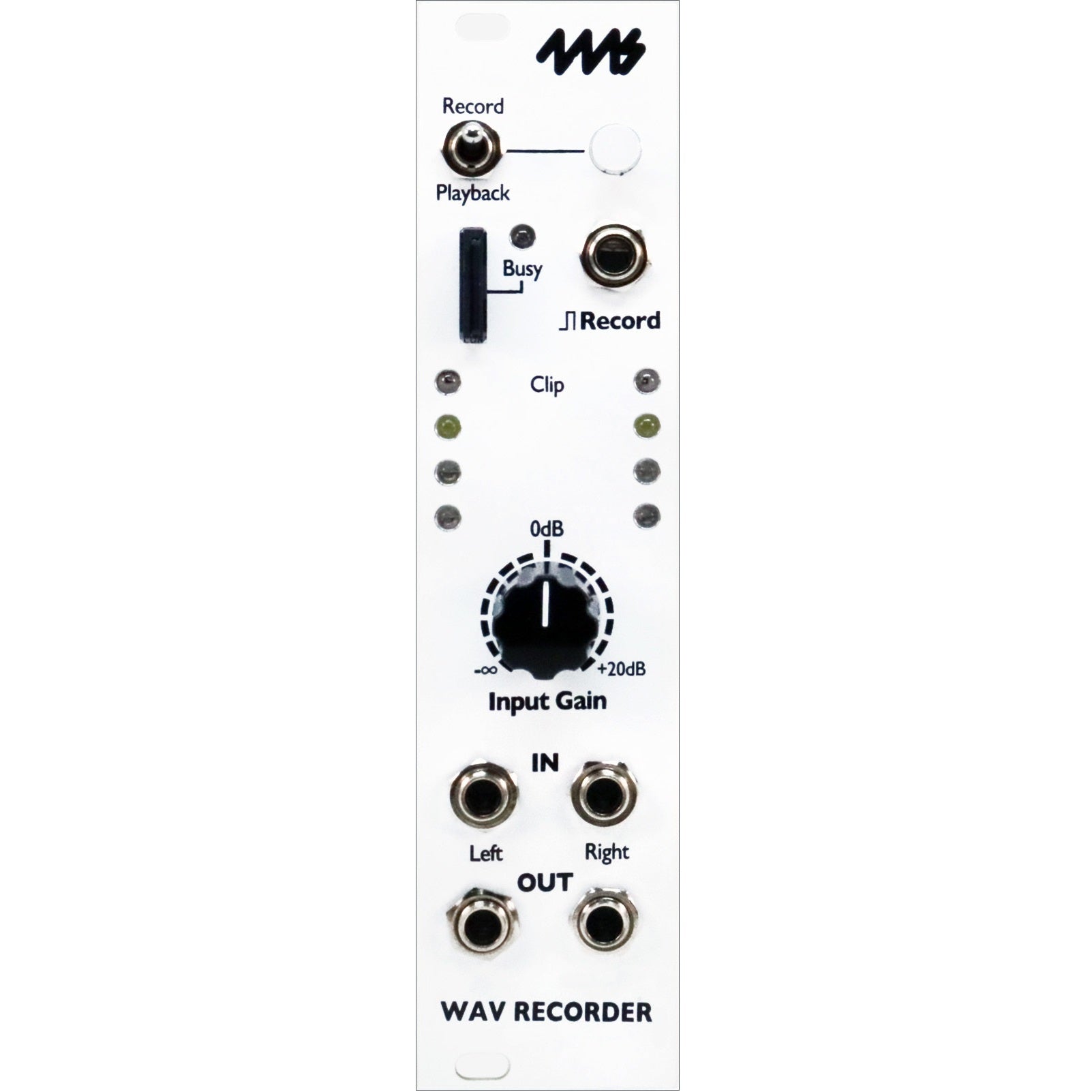

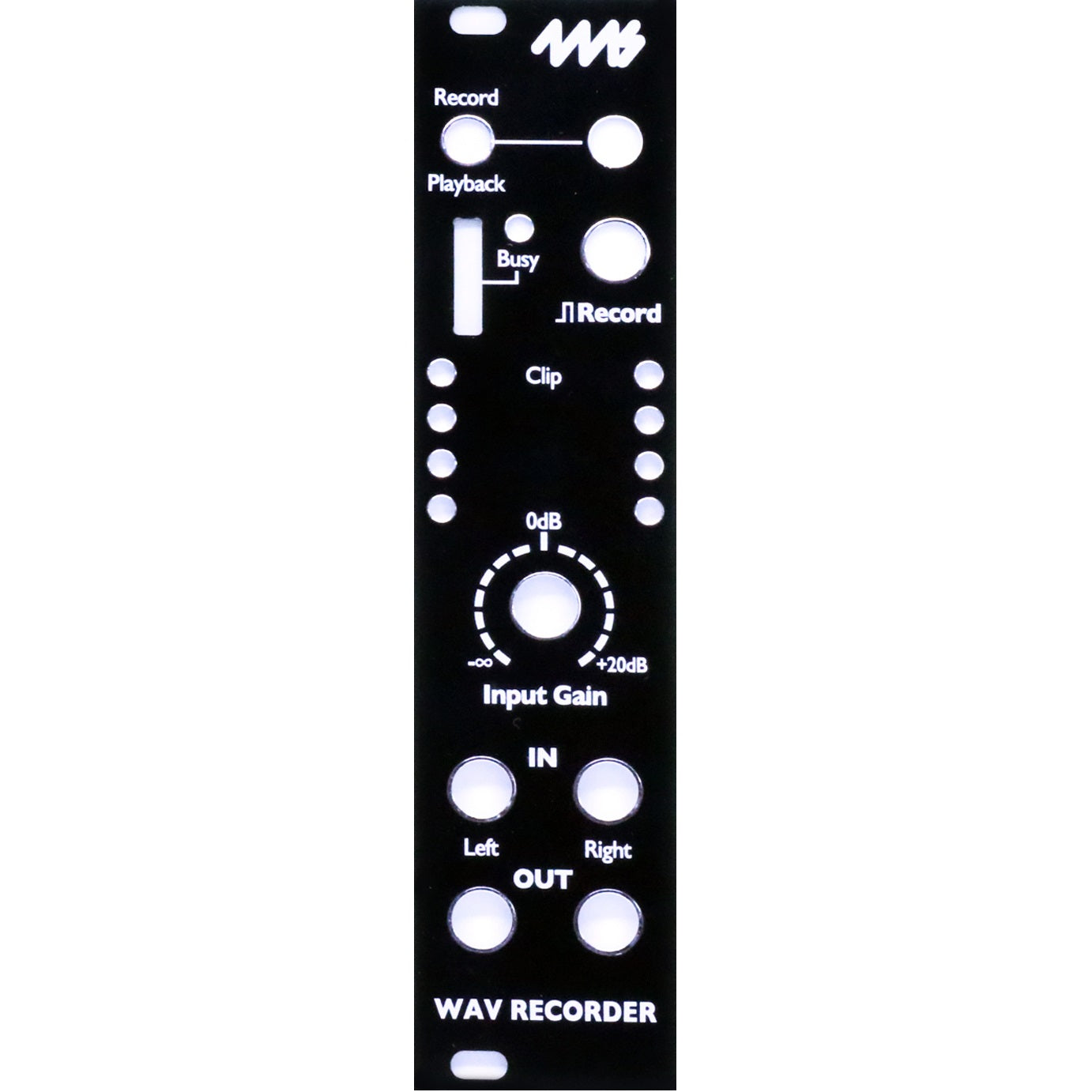

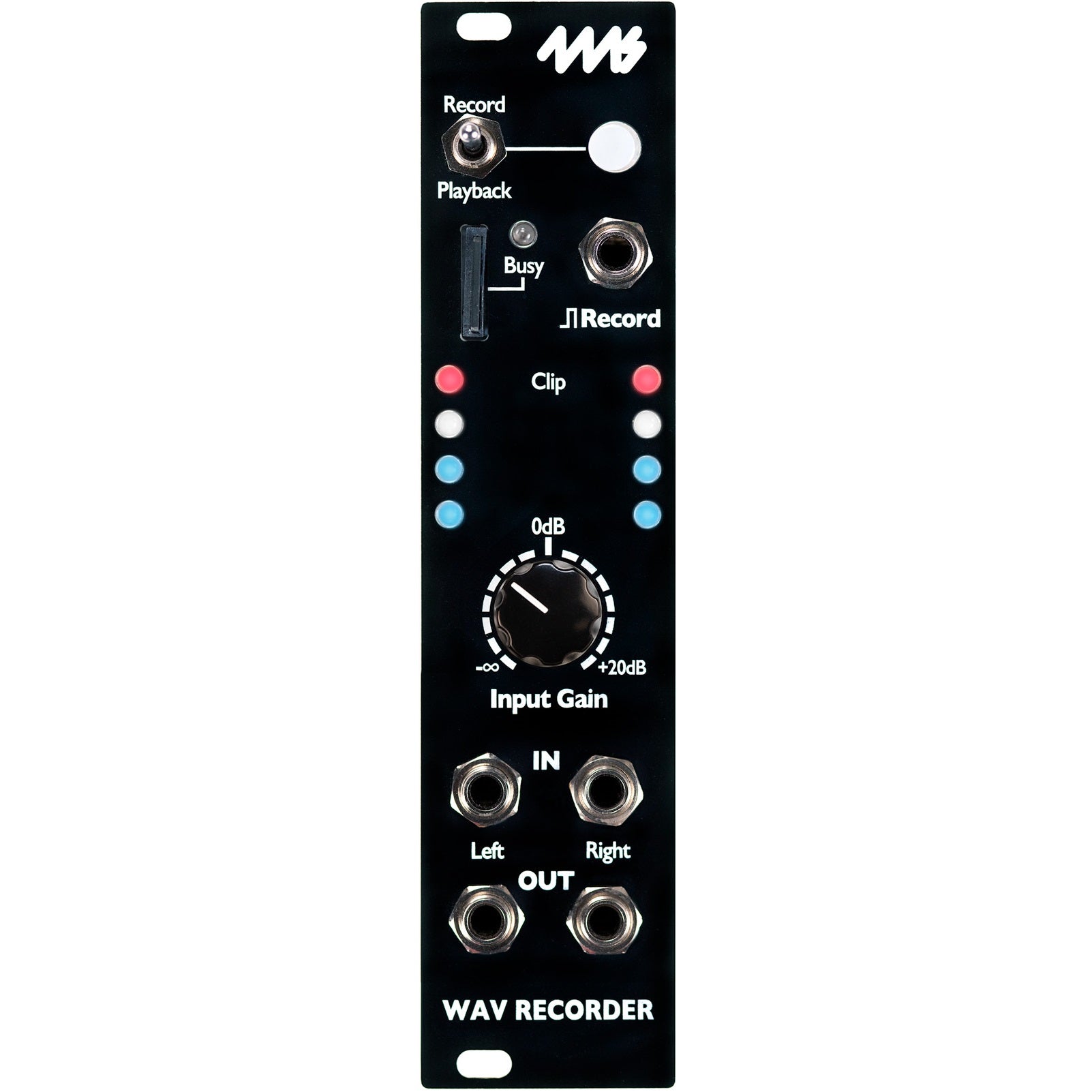

4ms - WAV Recorder [WAV]

  • HP:

The WAV Recorder from 4ms Company is a high fidelity, two-channel stereo audio recorder with basic playback features. Accepting a... Read more Read more

$269.00Excl. VAT


      The WAV Recorder from 4ms Company is a high fidelity, two-channel stereo audio recorder with basic playback features. Accepting a wide range of input signals, from line-level to modular-level, the WAV Recorder stores audio onto a microSD card in lossless .wav format up to 96kHz/24-bit. The trigger jack can be used for capturing rhythmic loops or synchronizing multiple WAV Recorder modules for multi-track recording. In Playback mode, the trigger jack or button plays the most recent recording. A simple file/folder navigation system can be used to browse the folders on the card for playing back .wav files. A Gain knob allows for up to +20dB of boost, and an LED Signal Meter indicates clipping and the signal level.

      The WAV Recorder features:

      • Records high-fidelity, low-noise, stereo WAV files onto microSD Card.
      • Up to 96kHz, 24-bit stereo recording.
      • Extremely low noise, high-fidelity design
      • Configurable to 96kHz, 48kHz, or 44.1kHz; and 24-bit or 16-bit; and stereo or mono
      • Accepts modular signal level, line level, or headphone level.
      • Gain knob and LED level meter allows you easily boost or cut any signal, from synths to smart phones, without clipping.
      • Audio can be monitored without recording, so the WAV Recorder can also be used as a pre-amp for boosting line-level signals to modular level.
      • Playback previous recordings or standard .wav files on the microSD Card, without renaming files.
      • Playback and Record activated by button press or a trigger jack
      • Recording time and number of files are limited only by available space on card: Typical cards can hold hundreds of hours of samples.
      • Continuous Recording feature automatically breaks long recordings (>6 hours, typically) into multiple 4GB files. With a large SD Card (128GB), you can literally record continuously for 2 weeks without stopping!
      • Connects to the LISTEN modules for recording directly from the main output.
      • 24-bit 96kHz Codec (DAC and ADC)
      Electrical and Mechanical Specifications:

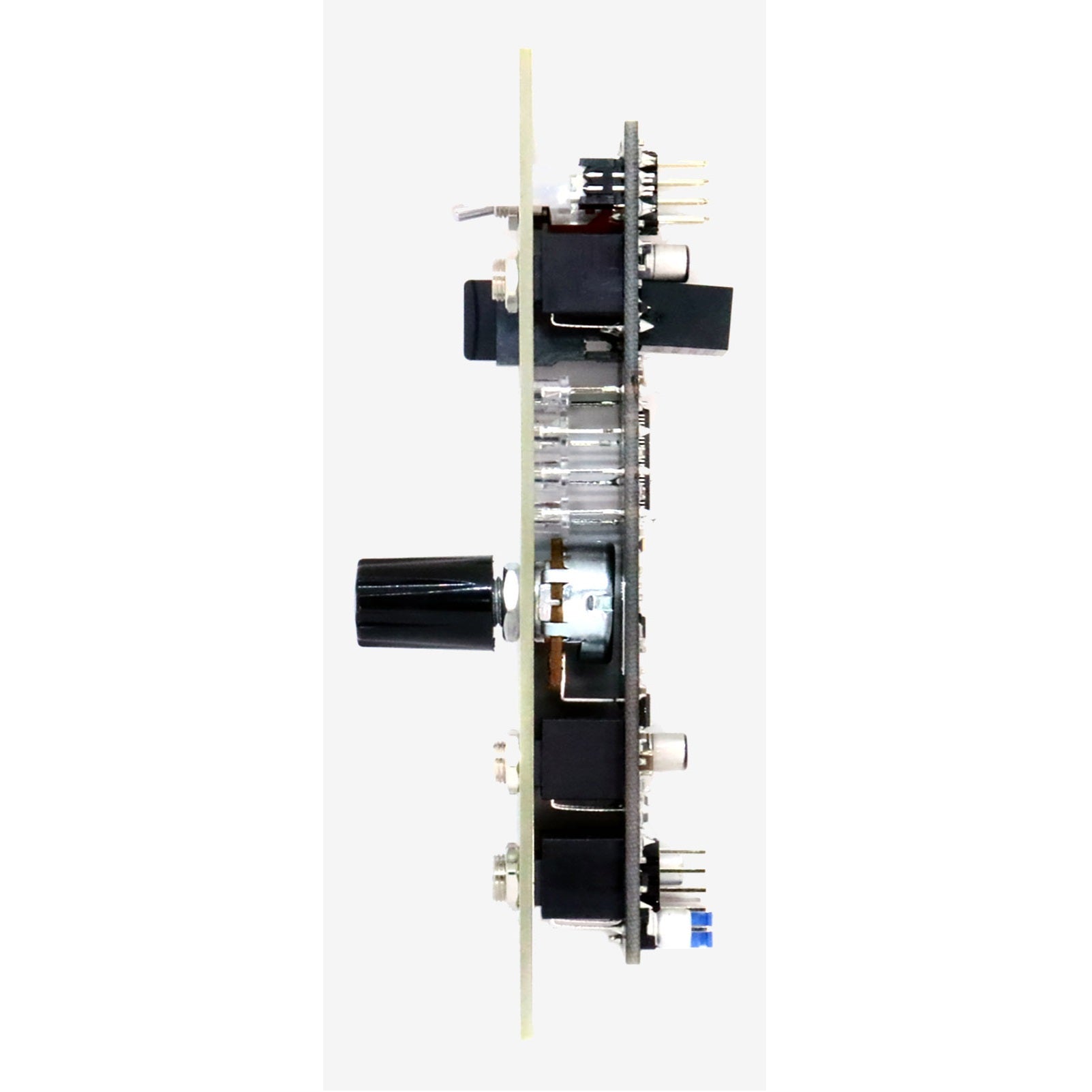

      • Module Size:
        • 6 HP Eurorack format module
        • 10-pin Eurorack power header
        • 0.98" (25mm) maximum depth with power cable
      • Power consumption:
        • +12V rail: 112mA
        • -12V rail: 12mA
        • +5V rail: not used
        • Connect red stripe of power cable towards the bottom of the module, which is marked with a white stripe and the words -12V and POWER
      • Audio Inputs
        • 22Vpp maximum
      • Audio Signal
        • Signal-to-Noise Ratio (SNR) of WAV file:
          (Measurements taken from recordings made in typical Eurorack case powered by Row Power 40)
          • -91.7dB @ 16-bit, 44.1kHz
          • -88.9dB @ 24-bit, 96kHz
        • Playback Frequency Response (File : Output jacks)
          20Hz - 20kHz: +/-0.1dB maximum
      • Trigger input:
        • Acceptable trigger voltage range: +2V to +12V
        • Minimum pulse width: 5ms
        • Maximum frequency of repeated triggers: 50Hz
          (Minimum time between recordings varies with speed of microSD card)
      Included with the WAV Recorder:
      • 16GB micro SD card (class 10)
      • SD adaptor
      • 10-to-16 pin power cable
      • 2 M3 Knurlie screws
