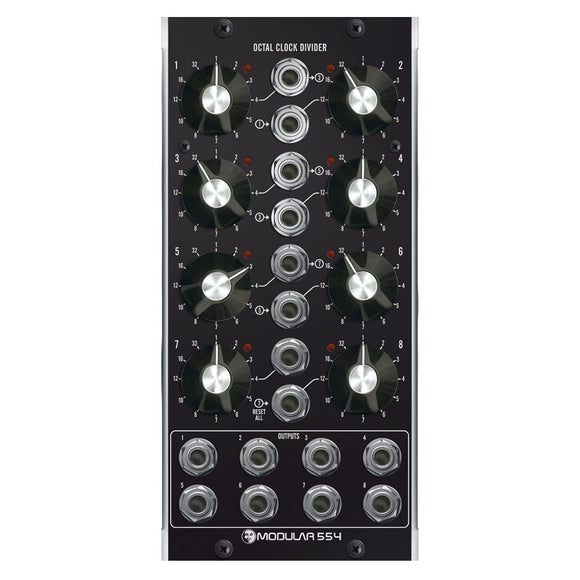

Moon Modular - 554: Octal Clock Divider
Manufacturer Description:
The OCTAL CLOCK DIVIDER combines 8 divider circuits in one module. Each of the dividers offers twelve division factors: 1 · 2 · 3 · 4 · 5 · 6 · 7 · 8 · 10 · 12 · 16 and 32. The input jacks are normalized to allow complex divider combinations without external patching: Input 1 is daisy chained to input 3, input 3 to 5, input 5 to 7. Output 1 is daisy chained to input 2, output 3 to input 4, output 5 to input 6, output 7 to input 8. Input 8 can be configured (jumper on the main circuit board) to serve as master reset input for dividers 1 to 7.
Related Items:
Module Size: 2 unit space
