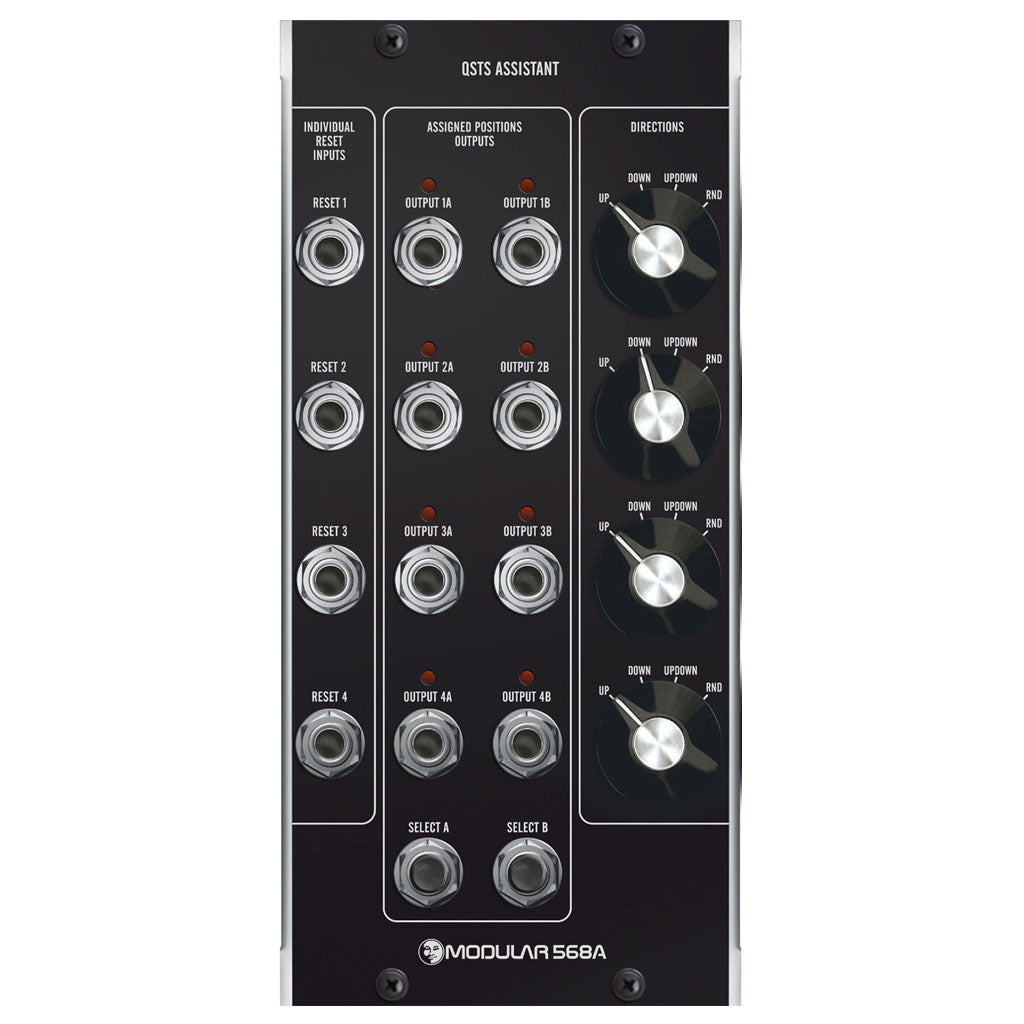

Moon Modular - 568A: QSTS Assistant
The M568A module is an addition to the M568 Module Quad Sequential Trigger Source. It expands the four trigger tracks of the 568 QSTS with a couple of useful features:
- each track has its own reset-input jack
- each track has two independent trigger outputs, which can be assigned to any desired step location
Assigning/deleting these positions takes place at the 568 QSTS module in combination with the, "Select A" and, "Select B" buttons at the 568A
Press and hold the select A/B button (set position on the 568 QSTS blink), press the desired position at the 568 QSTS.
If a 568P programmer module is attached to the 568 QSTS, the eight step-positions of the 568A will be saved together with the sequences.
- eack track has a 4-position rotary switch to select the 568 QSTS's running direction
Changing the direction (except random) doesn't happen at once but after the next reset (end/start/turning back on) of the respective track.
