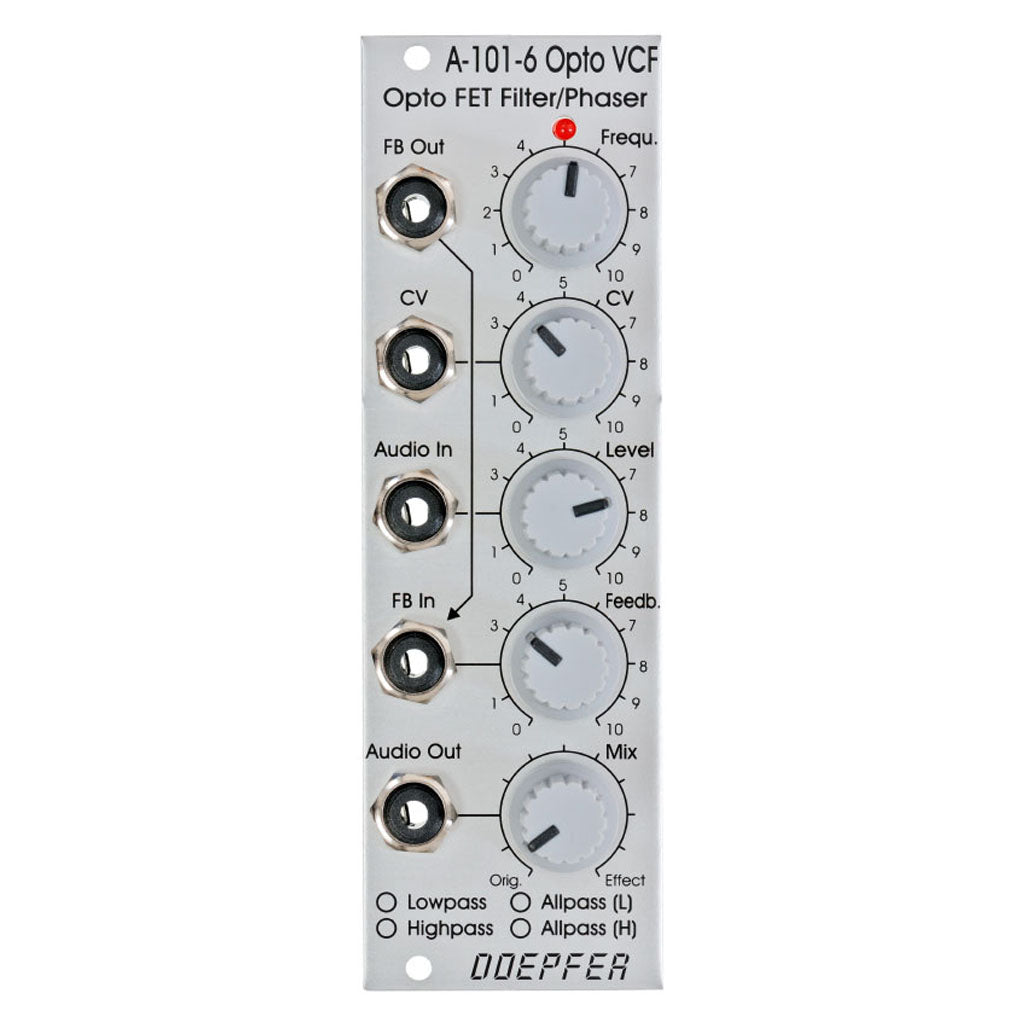

Doepfer - A-101-6: Six Stage Opto FET VCF

  • HP: 8

Manufacturer Description: A-101-6 is a new filter module that uses so-called opto fets to control the filter frequency. opto fets... Read more Read more

$114.99Excl. VAT


      Manufacturer Description:

      A-101-6 is a new filter module that uses so-called opto fets to control the filter frequency. opto fets are very similar to vactrols but use light depending field effect transistors (fets) instead of light depending resistors (ldrs). a opto fet is a combination of a light depending fet and a led (light emitting diode) both put into a small light-proof case. the advantage compared to vactrols is the much faster response of opto fets compared to ldrs. this allows much faster attack/decay times and even fm effects. the disadvantage compared to vactrols is that the fet behaves as a normal ohm resistor only for small levels. with higher levels the fet begins to distort. apart from this the notes mentioned on the vactrol basics page are valid.

      module a-101-6 is made of six serial 6db filter stages. each stage can work as lowpass, highpass or one of two allpass types.

      the type of filter is chosen by jumpers on the pc board (factory setting: low pass). the type of filter determined by the jumpers positions can be marked by means of a water-resistant felt pen at the front panel. the following document shows the jumper positions for the four different filter types.

      the resonance is controlled by the feedback control up to self oscillation. by means of a trimming potentiometer the maximal feedback can be adjusted. high feedback values can be used mainly in the allpass mode to obtain very extreme self oscillation sounds. even an external feedback signal can be used instead of the internal feedback connection (fb in socket).

      the mix control is used to pan between the original signal (ccw position) and the effect signal (cw position). in filter mode (lp/hp) this control is usually set fully cw. in the allpass modes one obtains phasing sounds at center position or "pure" allpass sound in fully cw position.

      note: the originally planned version of the module with voltage controlled switching between the different filter types will be not realized (see front panel sketch at the left side). because of the many required voltage controlled switches this version would have been much more expensive. most of the customers who tried the a-101-6 prototype suggested to leave out this vc switching feature as it was not that impressive and instead manufacture the module in a more affordable version.

      it requires 8 te/hp worth of space to fit in a eurorack frame.
