Description
Manufacturer Description:
Module A-150 (Dual VCS) contains two separate voltage-controlled switches.
Each switch has a control voltage input, a common Out / Input, and two In / Outputs. The switches are bi-directional: they can work in both directions, so can connect one input to either of two outputs, or either of two inputs to one output. Voltages in the range -8V...+8V at the O/I resp. I/O sockets can be processed by the module.
Two LEDs show which in / output is active (ie. which is connected to the common out / input).

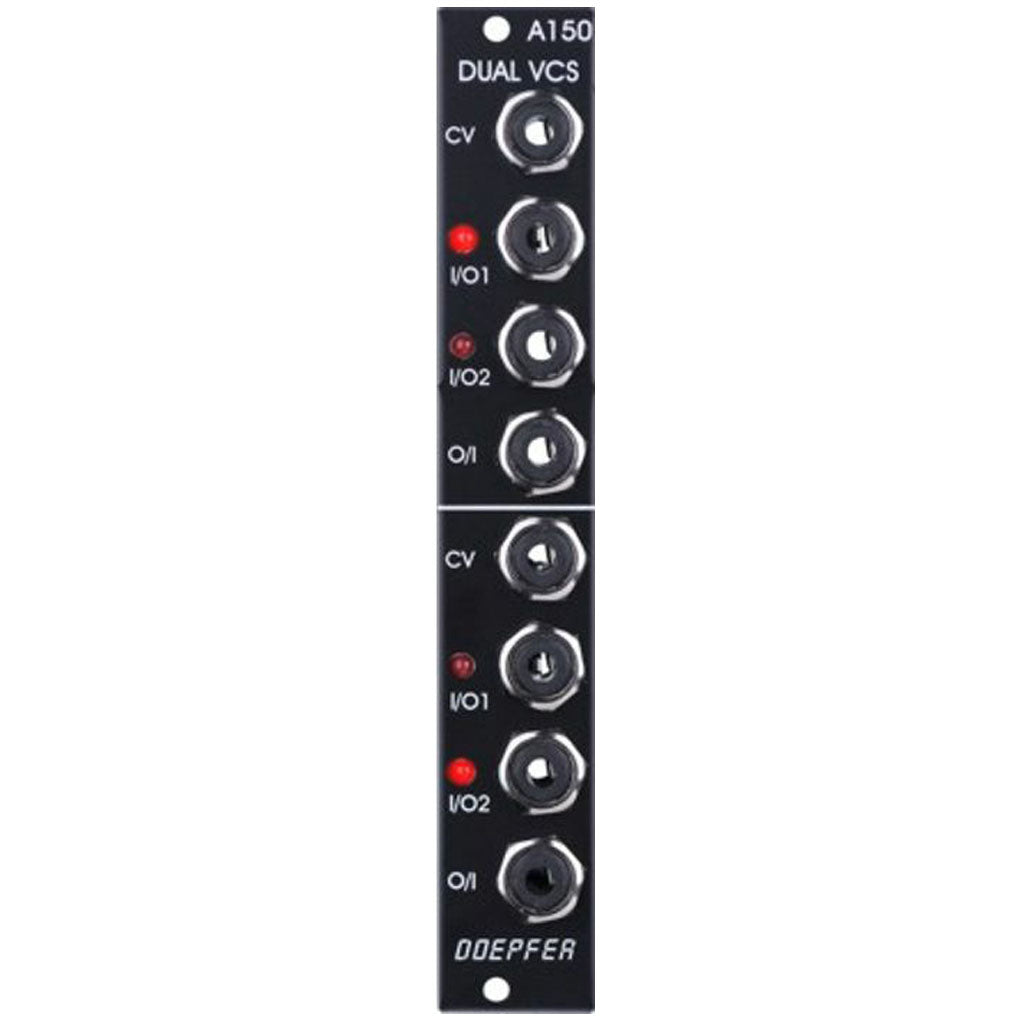

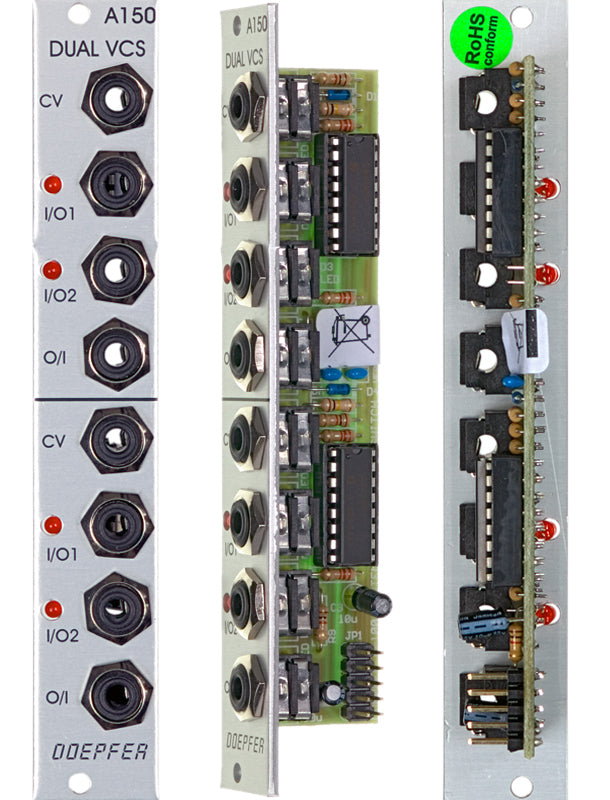

Doepfer - A-150V: Dual Voltage Controlled Switch
$87.00
2 products in stock
Description
Manufacturer Description:
Module A-150 (Dual VCS) contains two separate voltage-controlled switches.
Each switch has a control voltage input, a common Out / Input, and two In / Outputs. The switches are bi-directional: they can work in both directions, so can connect one input to either of two outputs, or either of two inputs to one output. Voltages in the range -8V...+8V at the O/I resp. I/O sockets can be processed by the module.
Two LEDs show which in / output is active (ie. which is connected to the common out / input).
Eurorack
Eurorack is Doepfer's 3U modular format
