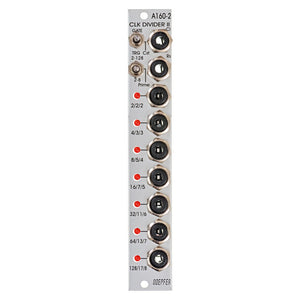

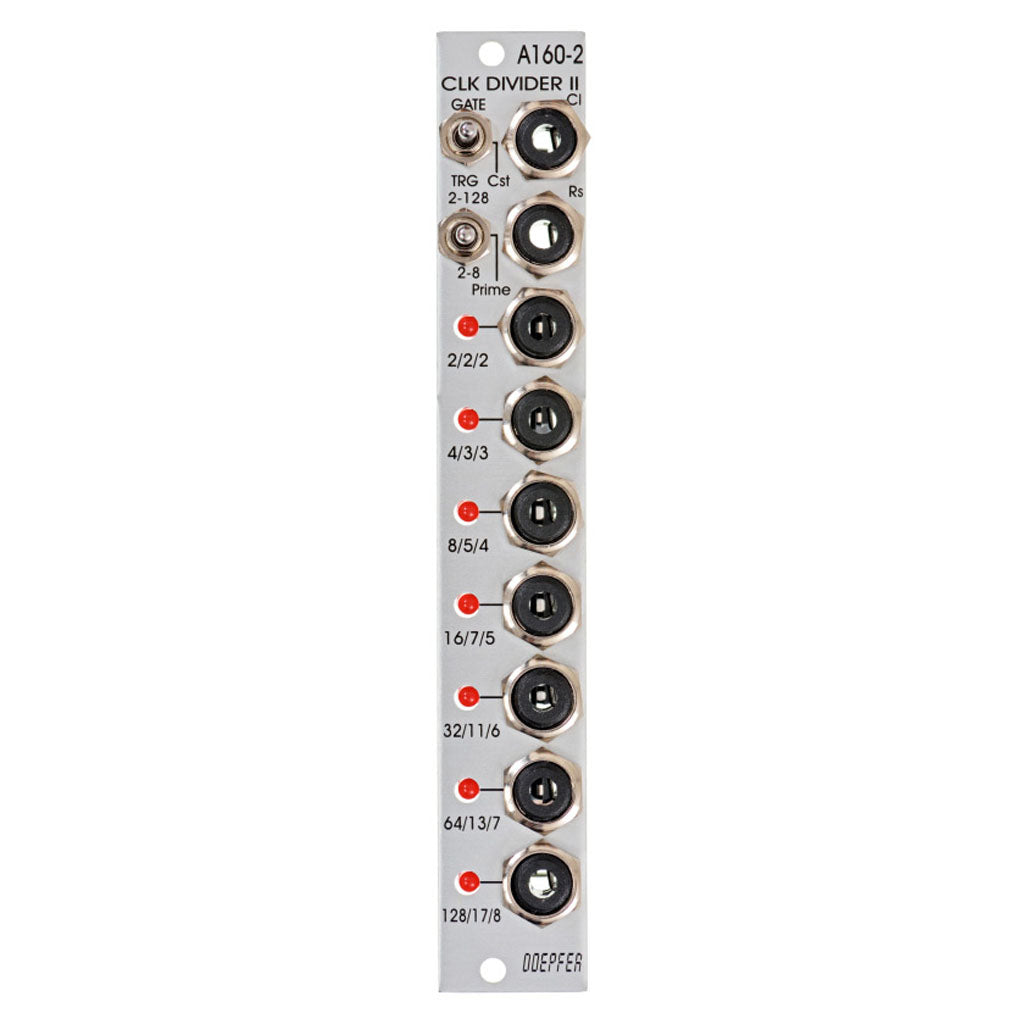

Doepfer - A-160-2: Clock/Trigger Divider II

  • HP: 4

Manufacturer Description:Module A-160-2 is an enhanced version of the standard clock divider A-160. The module is a frequency divider for... Read more Read more

$120.00Excl. VAT

      Description

      Manufacturer Description:

      Module A-160-2 is an enhanced version of the standard clock divider A-160. The module is a frequency divider for clock/trigger/gate signals, designed to be a source of lower frequencies, particularly for rhythm uses. The Clock input will take any digital signal from, eg., an LFO, MIDI sync, or the gate from a MIDI-CV interface. At the outputs, you have access to three sets of seven different sub-divided clock signals, from half the clock frequency down to 1/128. The low/high levels of the output signals are 0V and about +10V. The A-160-2 also has a reset input. Whenever a reset signal is sensed, all outputs are set to certain levels which depend upon the selected mode.

      These are the most important features of the module:

      Three different sets of dividing factors, selected by a three-position switch at the front panel:
      power of two: 2, 4, 8, 16, 32, 64, 128
      prime numbers: 2, 3, 5, 7, 11, 13, 17
      integer: 2, 3, 4, 5, 6, 7, 8

      Two output modes, selected by a two-position switch at the front panel:
      Gate mode: outputs act like the outputs of typical binary dividers
      Trigger mode: in this mode the outputs are AND-wired with the clock signal (i.e. the clock pulsewidth affects the pulsewidth of the outputs)

      Clock edge type selected by a jumper on the pc board:
      positive: the rising edge of the clock signal triggers the state change of the outputs
      negative: the falling edge of the clock signal triggers the state change of the outputs

      Reset behaviour by two jumpers on the pc board:
      level triggered: the level at the Reset input triggers the Reset
      edge triggered: the edge of the signal at the Reset input triggers the Reset
      positive: a high level (> 2.5V) or the rising edge at the Reset input triggers the Reset
      negative: a low level (< 1 V) or the falling edge at the Reset input triggers the Reset

      Output polarity selected by a jumper on the pc board:
      positive: non-inverted outputs
      negative: all seven outputs are inverted
