Manufacturer Description:

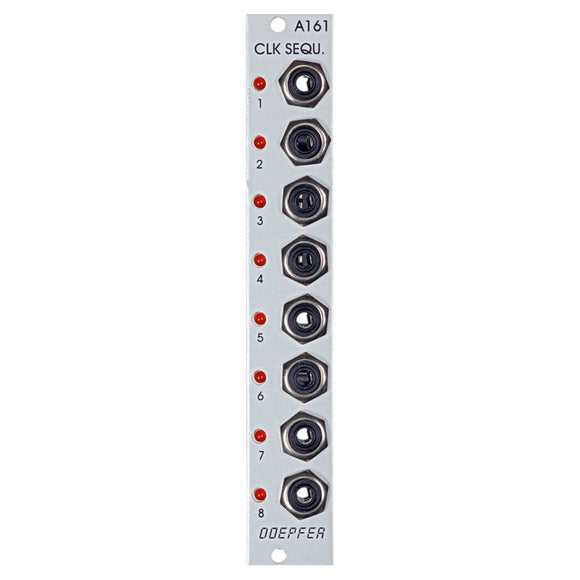

Module a-161 is an eight-step clock sequencer which is internally connected to the clock divider (a-160). eight outputs are sequentially switched by the clock signals from the a-160 and can act, for instance, as sequential rhythmic triggers for an envelope. the reset on the a-160 also works on the a-161 (instant return to step 1). in combination with a mixer (a-138) short analog sequences can be generated. our midi-analog-sequencer maq16/3 is suitable for midi-controlled analog sequences up to 48 steps. a "real" analog sequencer with 8 steps is the a-155.

similar modules:
a-152 voltage addressed track&hold / switch (multiplexer) / digital outputs
a-160 clock/trigger divider

the a-161 requires an clock divider a-160 and has to be mounted directly to the right of the a-160.

this module has a maximum current draw of 20ma. it requires 4 te/hp worth of space to fit in a eurorack frame.
