Doepfer - A-174: Joy Stick
$148.00Excl. VAT
Description

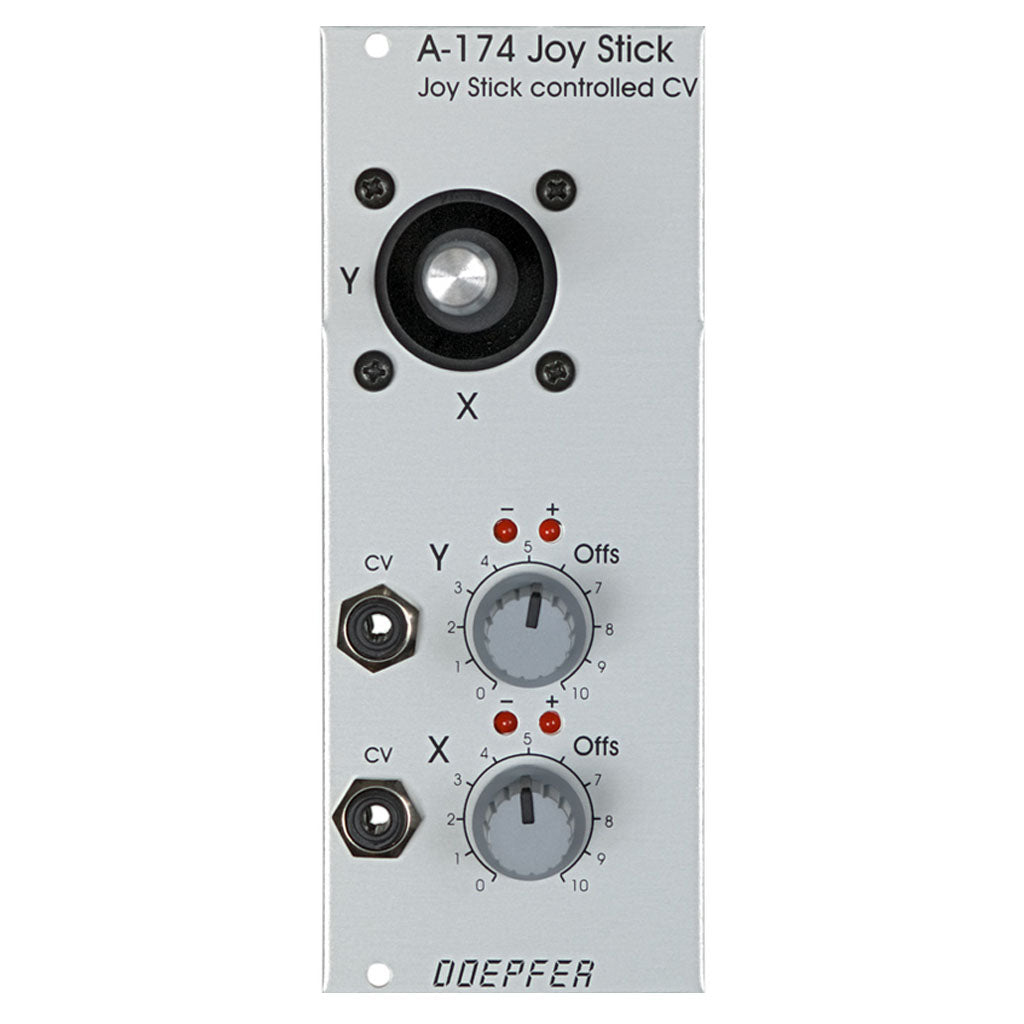

module a-174 outputs 2 control voltages generated by a spring-loaded x/y cross potentiometer (so-called joy stick). for each output the voltage offset (zero setting) can be adjusted. each output is equipped with 2 leds for positive/negative display of the output voltages. if the spring is removed for one direction the joy stick is no longer spring-loaded for this direction (as the spring is destroyed when removed this cannot be re-established!). we use a high quality joy stick made by alps in the a-174.
this module has a maximum current draw of 40ma. it requires 10 te/hp worth of space to fit in a eurorack frame.
Eurorack
Eurorack is Doepfer's 3U modular format
