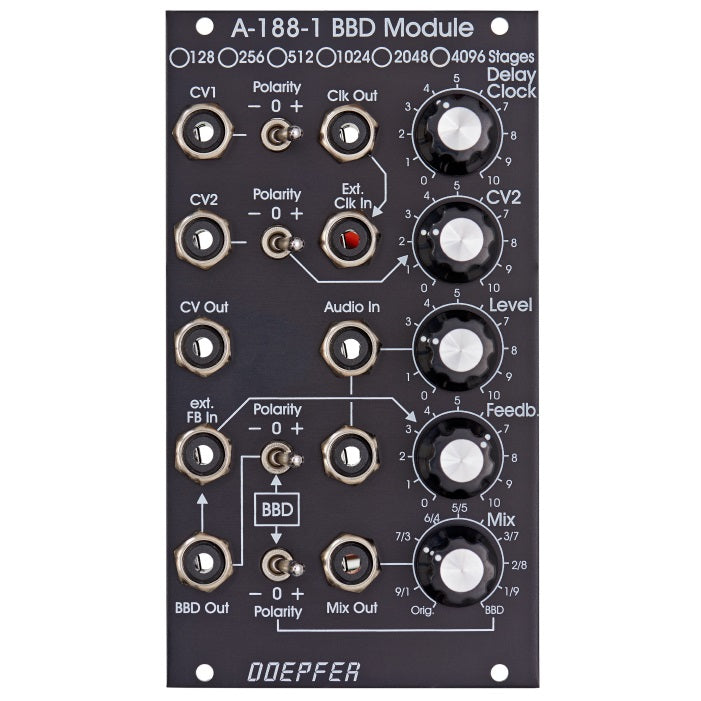

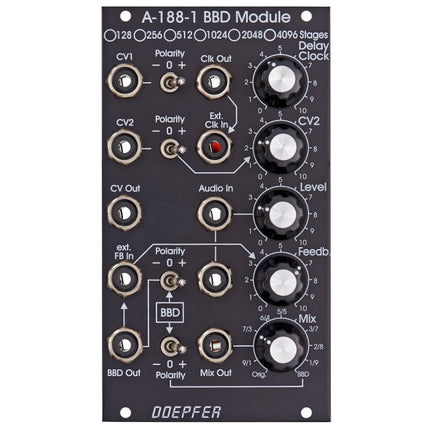

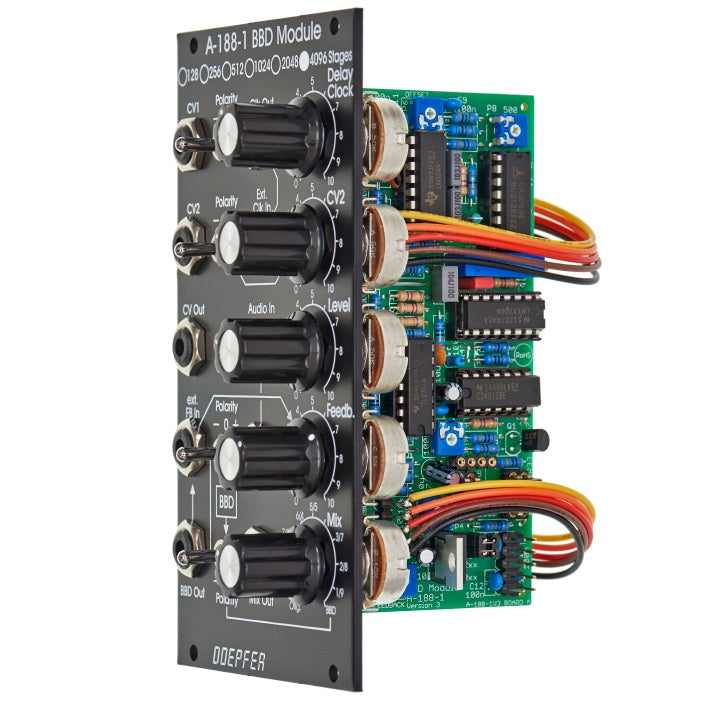

Doepfer - A-188-1V: BBD Module

Doepfer - A-188-1V: BBD Module

  • $153.00

Manufacturer Description:

Module A-188-1 is a so-called Bucket Brigade Device module (abbr. BBD). BBDs have been used to delay audio signals before digital delays dethroned the BBD based effect units. But BBDs have some very unique advantages (or disadvantages dependent on the point of view) over the digital counterpart which result from the special properties of the BBDs. BBD circuits can be treated as a chain of Sample&Hold units (S&H) which pass on their voltages to the next S&H in the chain at each clock pulse. A more detailed explanation – including the different types of BBDs – can be found in following chapter.

In any case the sounds generated by module A-188-1 are very special. Typical applications are: Flanger, Chorus, Analog Delay or Karplus/Strong synthesis. But as the A-188-1 has a lot of very unique features (voltage controlled clock rate / delay time with extreme range, polarity switches for the CV inputs, feedback and BBD out/mix, clock and CV output of the high speed VCO, BBD clock input, feedback insert, feedback up to self-oscillation) a lot of unusual applications can be realized with the module (e.g. delay controlled by ADSR, envelope, random or sequencer with positive or negative effect). The A-188-1 also has no built-in anti-alisaing filter in order not to limit the possibilities of the module. For this the CV out is intended.

High speed VCO (HSVCO) section:
manual delay control
delay CV input (CV1) without attenuator (about 1V/oct) and polarity switch (negative/off/positive)
delay CV input (CV2) with attenuator and polarity switch (negative/off/positive)
turning the manual delay knob clockwise or an increasing the external CV with polarity switch in positive position increases the clock and consequently decreases the delay time (similar to a VCF or VCO, especially because of Karplus-Strong synthesis applications)
clock output (e.g. to control another BBD, SC-Filter or delay module)
CV output (e.g. to control a VCF that follows the BBD clock), this voltage is composed of the manual delay control, CV1 and CV2

BBD/audio section:
standard versions of the module: 1024 or 2048 stage BBD (choice at order, a mark at the front panel identifies the type of BBD, similar to A-138a/b)
special versions of the module: 128, 256, 512 or 4096 stage BBD (additional charge, available only while stocks of these special BBD chips last)
delay range for 1024 stage BBD module: ~ 2.5 ms to ??? (corresponds to max. a clock frequency of ~ 200 kHz)
delay range for 2048 stage BBD module: ~ 7 ms to ??? (corresponds to max. a clock frequency of ~ 150 kHz)
the delay ranges for the 128, 256, 512 and 4096 stage versions can be found in the user's manual.
the max. delay time (???) is not specified as it depends upon the desired quality of the delayed audio signal. The signal becomes more and more poor as the clock frequency is reduced (please refer to the corresponding note below and listen to the audio examples for details)
external clock input (used to control the module e.g. from an external HSVCO or from another BBD module). The socket is normalled to the output of the internal clock oscillator.
two audio inputs (connected as a miniature multiple) with attenuator
BBD output (raw delayed output without original signal, e.g. for external feedback control via other A-100 modules, e.g VCA or VCF), the BBD output is affected by the feedback polarity switch to obtain the polarity function even for external feedback loops
manual feedback control
feedback polarity switch (positive/off/negative), affects even the BBD output socket
external feedback input (the socket is normalled to BBD output)
BBD signal polarity switch (positive/off/negative)
mix control (relation between original signal and positive or negative BBD signal)
mixed audio output
Width: 14 TE / 14 HP / 70.8 mm
Depth: 60 mm (measured from the rear side of the front panel)
Current: +80mA (+12V) / -50mA (-12V)
