Description

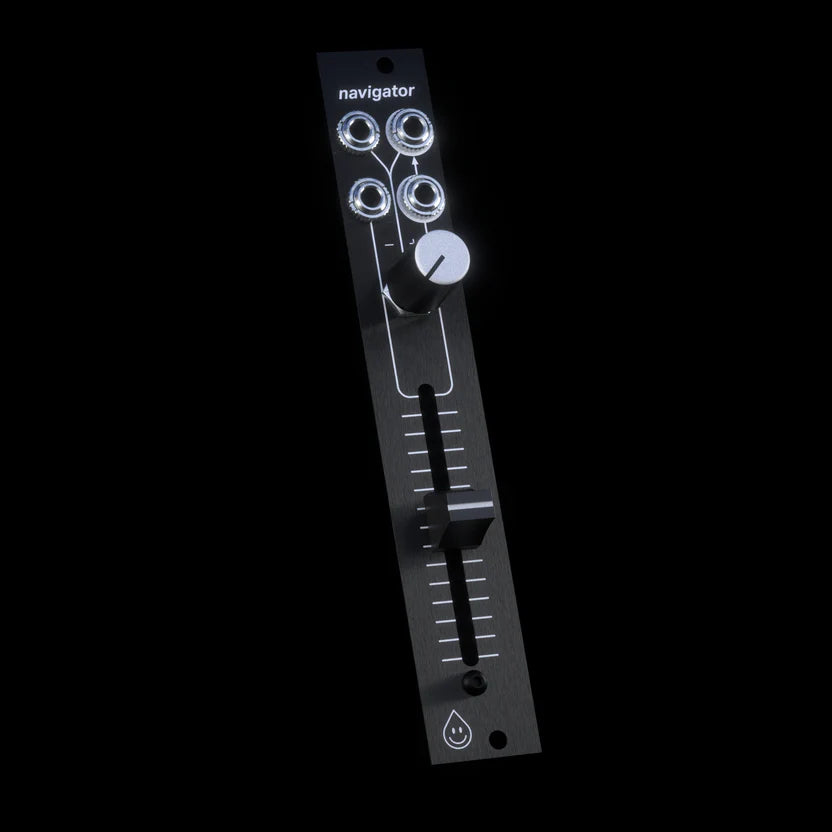

Navigator is a compact, multi-use voltage utility designed to bring playable control to CV sources in your rack. The combination of normalled voltages and mixing allows you to attenuate, polarize and offset signals to modulate parameters exactly within the sweet spot of another module’s CV input.

find the control voltage sweet spot

Control your CV - Navigator offers multiple ways to control the amplitude and range of your eurorack signals

Add playability - Patches on a eurorack synthesizer can get very dense and difficult to reach fingers into. Navigator offers a smooth 45mm fader that can work as an external control for other modules tied up in the cable tangle

Flexible routing - Input voltage normalization and output mixing allow navigator to be used to add unipolar and bipolar offset to any signal or mix two signals together

Features

• both inputs normalled to +5V to use as voltage offset
• fader attenuates signal
• knob provides signal attenuversion/polarization with gain from -1X to +1X
• both inputs mix on attenuverter output if nothing patched into attenuator output
• useful for adding playable control to CV levels and dense modules with small knobs
• reverse polarity power protection
• designed and assembled in the Pacific Northwest

Specs

• 4hp
• 25mm deep
• 11mA on +12V, 8mA on -12V, 0mA on +5V
