Name: ADDAC System - ADDAC208 Comparator
Brand: ADDAC System
Price: 175.00 USD
Availability: InStock

Product formADDAC System

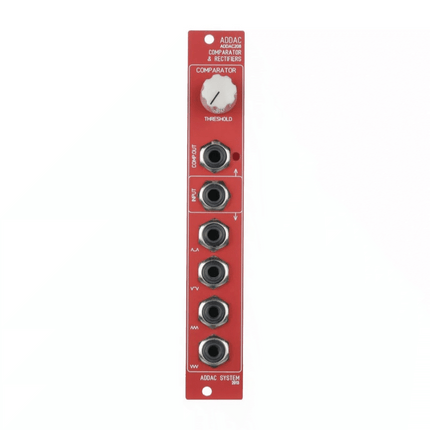

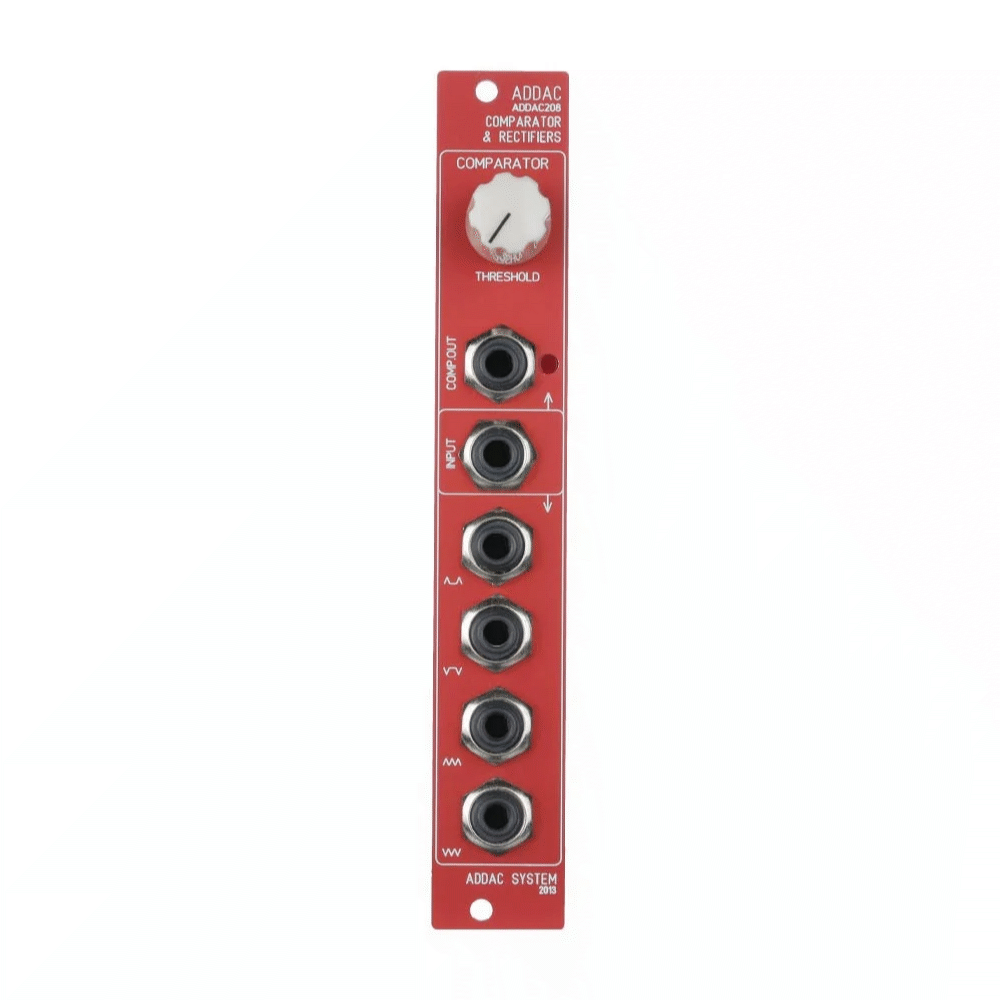

ADDAC System - ADDAC208 Comparator

A Comparator is an electronic circuit that compares two voltages and switches its output to indicate which is larger. The... Read more Read more

Description

A Comparator is an electronic circuit that compares two voltages and switches its output to indicate which is larger. The Comparator operates between -10 or +10V
The Output is always -10V if below Threshold and +10V if above Threshold.

A Rectifier is an electronic circuit that is used to transform AC signals to an equivalent DC signal while removing one of its polarities, i.e. positive rectification excludes negative signals and vice-versa.

Both sections can be used to change the shape of any waveform as well as its harmonic content.

FRONT PANEL:
1 Comparator Threshold Knob
1 Comparator Jack Output
2 Comparator Monitor Led1 Common Signal Jack Input
4 Rectificated Outputs

FEATURES:
4HP totally analog module.
Comparator with Threshold Knob
4 Precision Rectificated Outputs::
- Positive Half Rectification
- Positive Full Rectification
- Negative Half Rectification
- Negative Full Rectification

APPLICATIONS:
Comparator can be used with VCO’s to create a Square Wave with PWM control

Comparator can also be used with complex audio signals for a “Fuzz” effect.

Full Rectification can be used to double a VCO frequency.

SPECS:
Width: 4 HP
Depth: 25 mm
Max current: 30mA
Compatible with +-12v and +-15v power supplies
Bus Board Cable: 8 × 2 IDC (Doepfer style) connector
CV inputs/outputs: ± 10v
