Description
The Artificial Neural Network v2.0 is a collection of submodules for the creation and processing of control voltages, programmable logic, waveshaping, signal conditioning etc.
The Threshold Logic Neuron is capable of patch programmable combinational and sequential logic. Each input is weighted and may be manually triggered. v2.0 of the submodule has added a Not Output that goes low when the normal output goes high and vice versa.
The Boolean Logic Neuron is inspired by the Dual Logic Unit of the EAB video synthesizer.
Also included is a useful utility submodule: Dual Schmitt Trigger whose outputs are fed to an And Gate.
Specifications-
Module Width: 9hp
Mounting Depth: 26mm
Current Draw: 20mA idle, 60mA (+12V), 0mA (-12V)

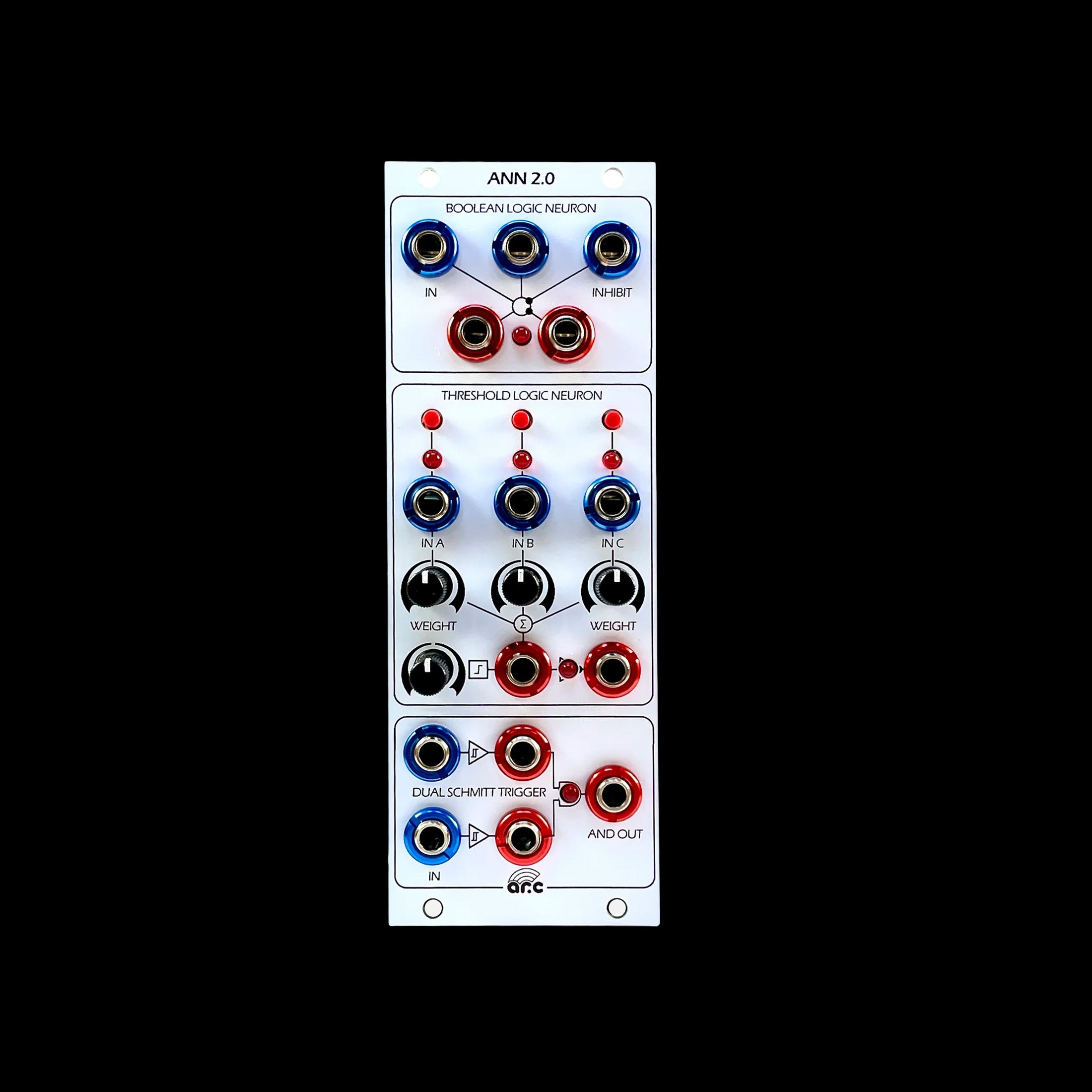

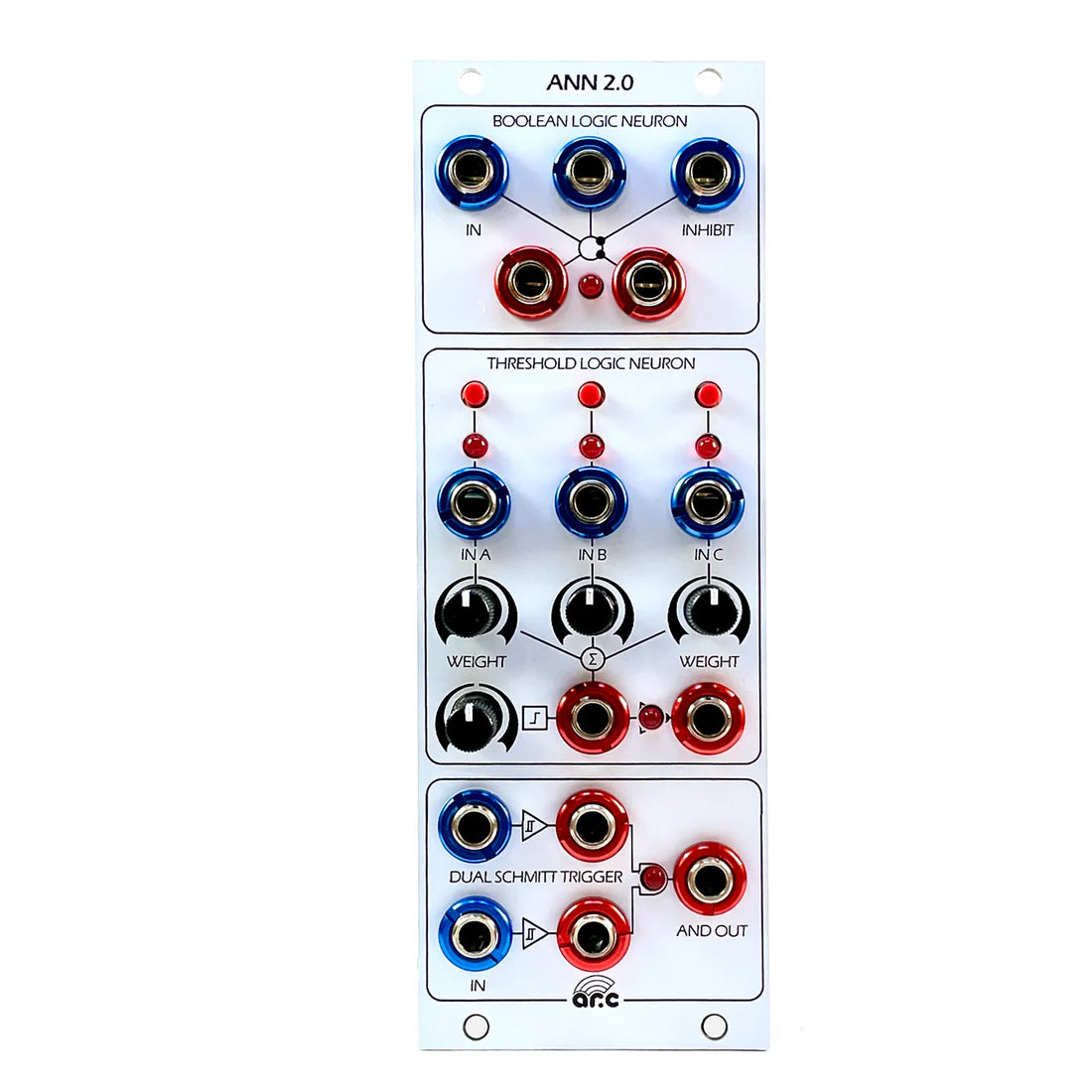

ARC Modular - Artificial Neural Network v2.0
$205.00
2 products in stock
Description
The Artificial Neural Network v2.0 is a collection of submodules for the creation and processing of control voltages, programmable logic, waveshaping, signal conditioning etc.
The Threshold Logic Neuron is capable of patch programmable combinational and sequential logic. Each input is weighted and may be manually triggered. v2.0 of the submodule has added a Not Output that goes low when the normal output goes high and vice versa.
The Boolean Logic Neuron is inspired by the Dual Logic Unit of the EAB video synthesizer.
Also included is a useful utility submodule: Dual Schmitt Trigger whose outputs are fed to an And Gate.
Specifications-
Module Width: 9hp
Mounting Depth: 26mm
Current Draw: 20mA idle, 60mA (+12V), 0mA (-12V)
Eurorack
Eurorack is Doepfer's 3U modular format
