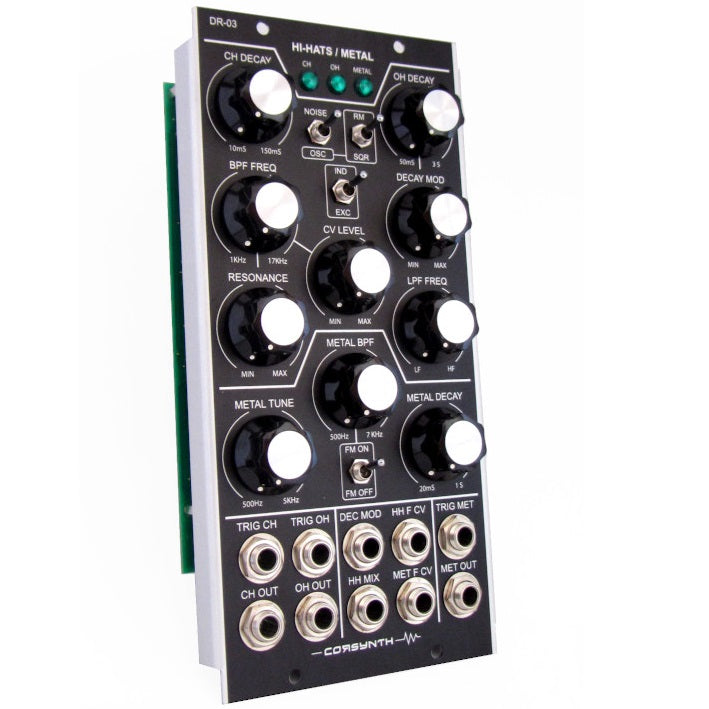

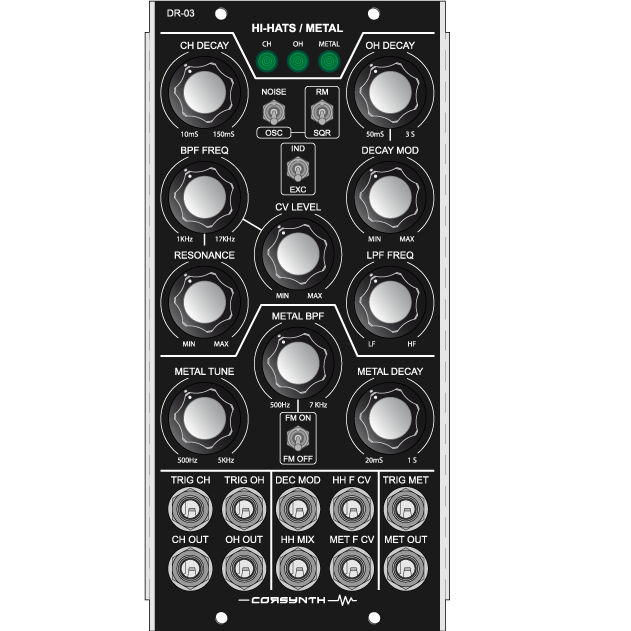

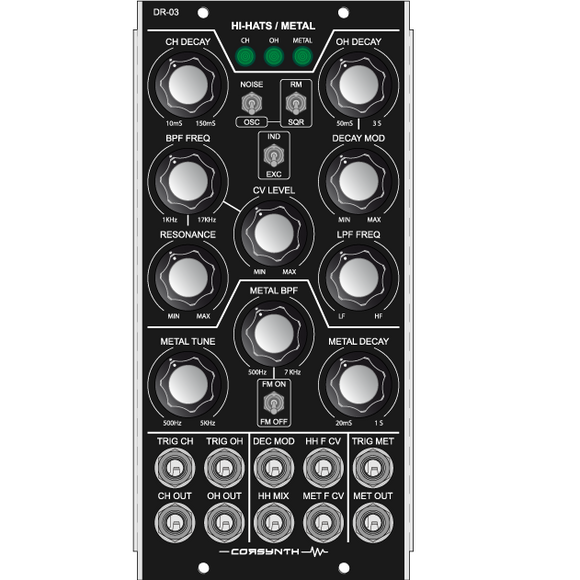

Corsynth - DR-03 Hi-Hats

The DR-03 Hi-Hats / Metal is the third module in the DR series dedicated to analog drum synthesis. It is designed to synthesize Hi-Hats and metal percussion like cowbells or cymbals and even FX.

 Three different voices are available at the same time Closed Hi-hat, Open Hi-hat and Metal plus a Hi-Hat mixed output .

 Hi-Hats

 To synthesize a Hi-Hat there is a key element that defines the final result, the primary sound used to create it. The DR-03 has three possible sound sources , a white noise generator, a mix of six square wave oscillators and a mix of ring modulated square wave oscillators. These three sound sources, together with the VC Band Pass filter and the Low Pass Filter allow the DR-03 to create a wide range of hi-hat sounds.

 Another interesting feature is that the Open Hi-hat decay time is voltage controlled and it can be triggered independently or conditioned to the Closed Hi-hat.

 Metal

 The Metal sound is created using two ring modulated square wave oscillators and a VC Band Pass Filter. The frequency of one oscillator can be manually controlled and the other one has a fixed frequency. The variable oscillator can modulate the cutoff of the BPF to create metallic FM sounds.
