Doepfer - A-100PB 2 x 3 U with PSU3

  • $855.00

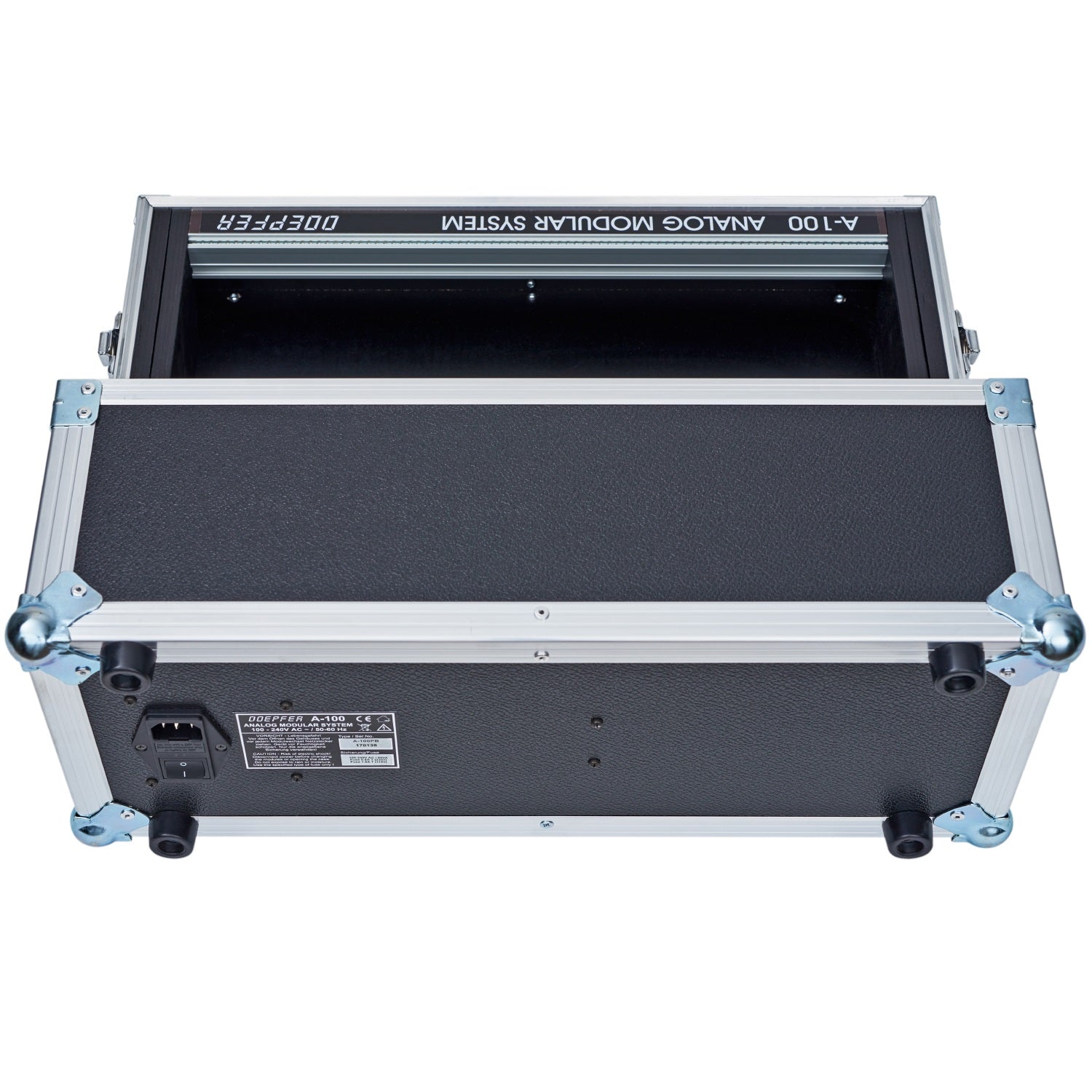

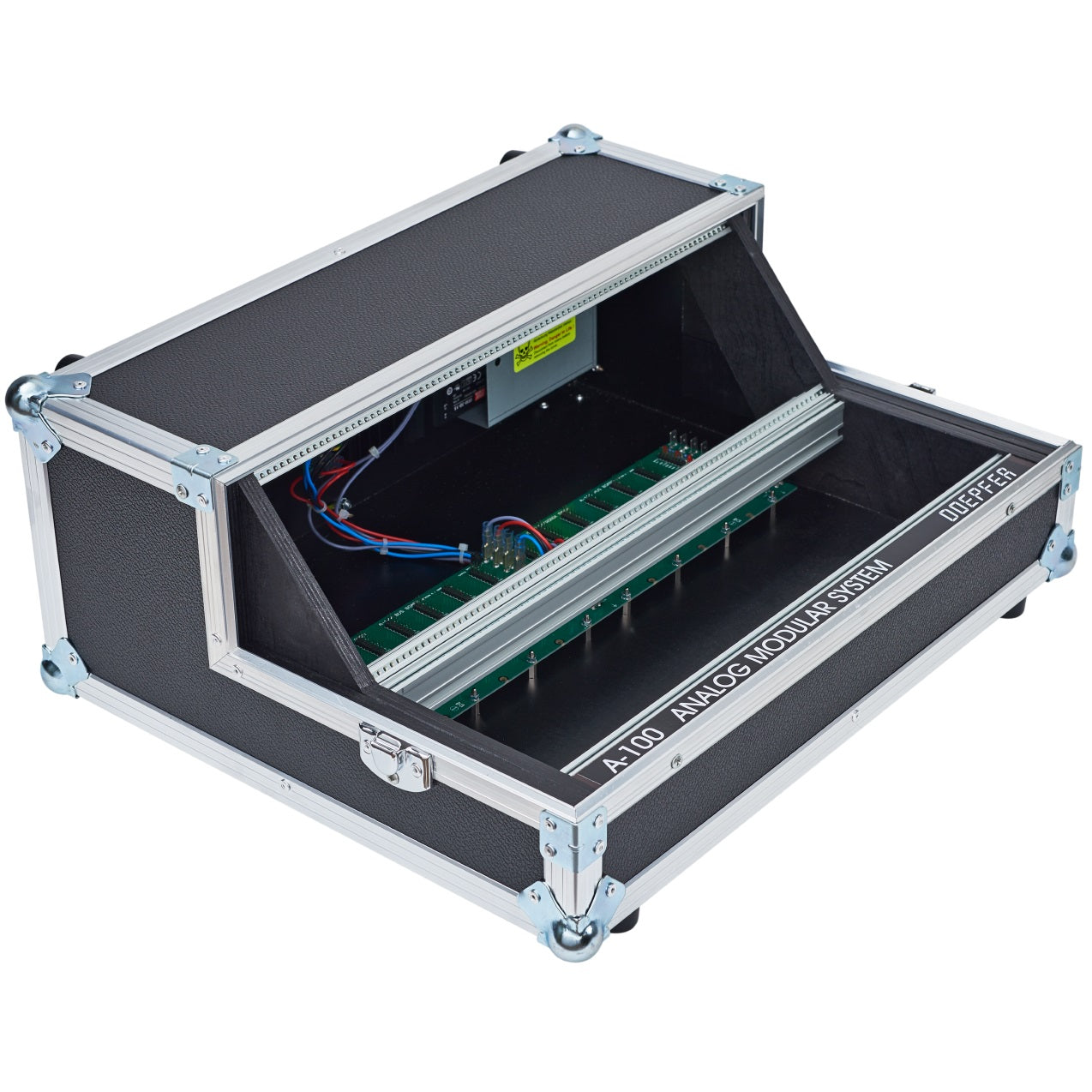

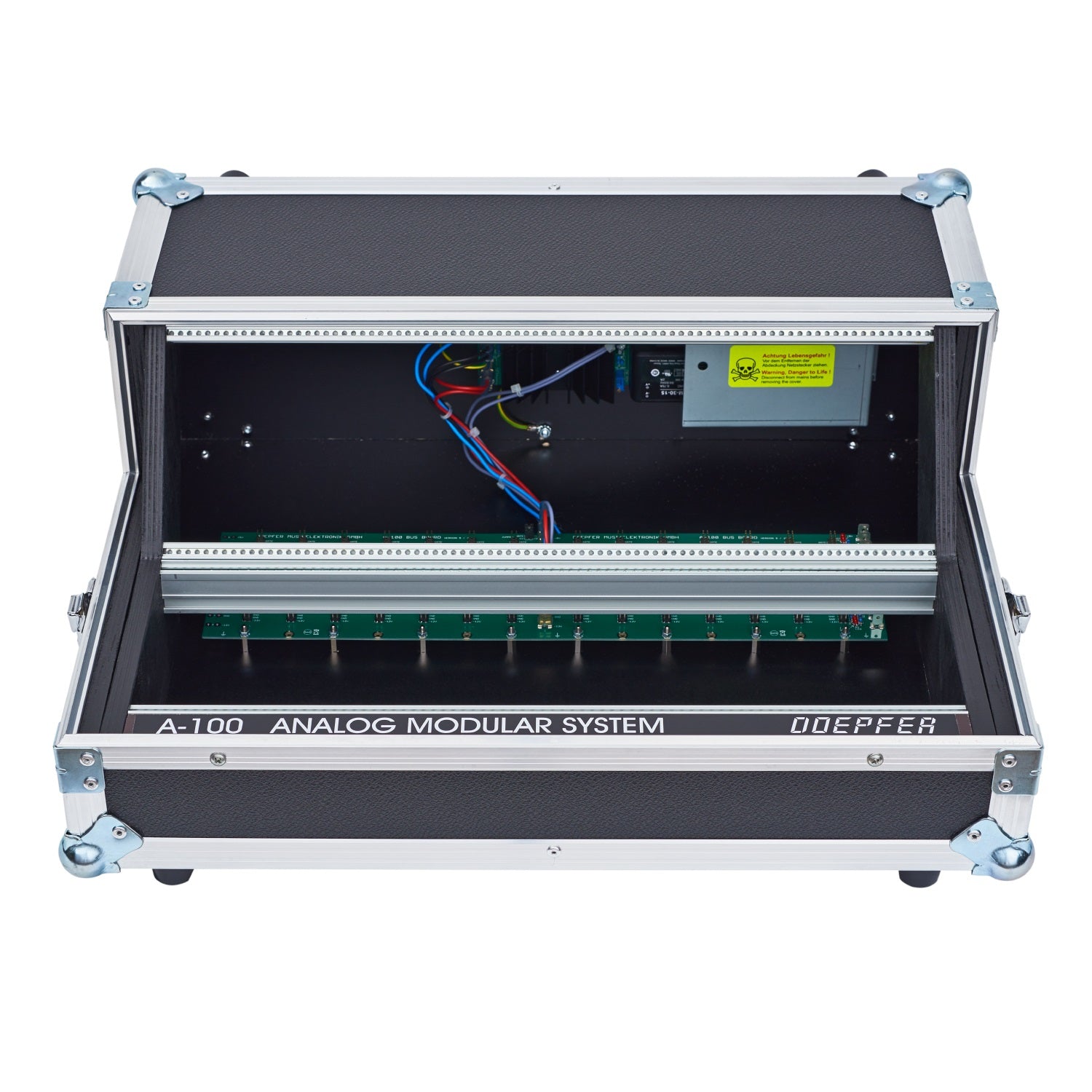

Transportable suitcase frame for eurorack modules.

  • 9 U (3 x 3U)
  • useable width: 84 HP
  • useable depth for modules: ~ 100 mm
  • contains: 1 power supply A-100PSU3 (2000mA), 3 bus boards

(The case is equipped with the new bus board V6 and not the old model as shown in the pictures)



Dimensions:

  • outside: approx. 510 W x 210 H x 420 D mm
  • inside: 2 x 84 HP x 3 U
  • usable depth for A-100 modules in the front area: approx. 70 mm
  • usable depth for A-100 modules in the rear, sloping area: approx. 90 mm
