Description

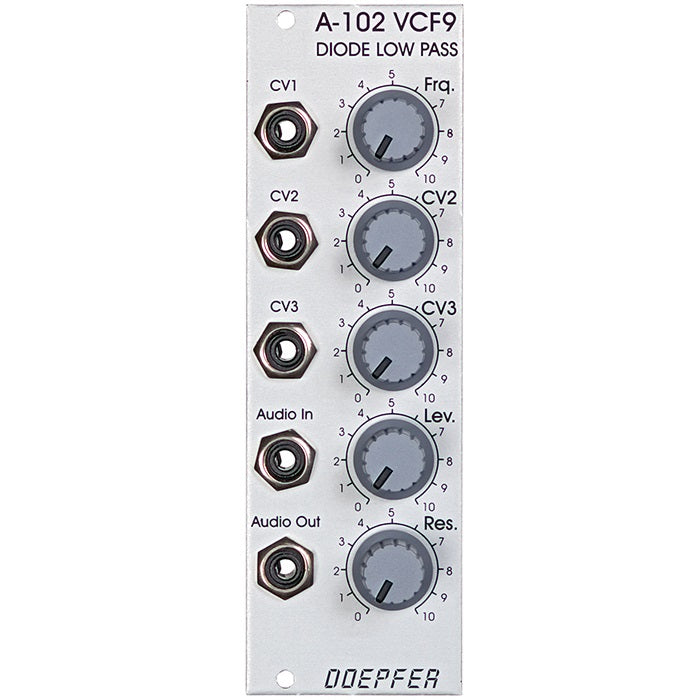

Module A-102 is a reproduction of the legendary low pass filter design that uses diodes in the filter stage as frequency controlling elements resulting in "strange" resonance behaviour and frequency response as resonance and frequency are not independent from another.
- manual control of filter frequency
- 3 CV inputs (CV1, CV2, CV3), 2 of them with attenuator (CV2, CV3)
- input level control
- resonance control up to self oscillation (depends upon the frequency setting for the A-102)
Power consumption: 30mA at +12V and 10mA at -12V
Depth: 60mm
HP : 8Doepfer - A-102
$115.00
1 in stock
Description
Module A-102 is a reproduction of the legendary low pass filter design that uses diodes in the filter stage as frequency controlling elements resulting in "strange" resonance behaviour and frequency response as resonance and frequency are not independent from another.
- manual control of filter frequency
- 3 CV inputs (CV1, CV2, CV3), 2 of them with attenuator (CV2, CV3)
- input level control
- resonance control up to self oscillation (depends upon the frequency setting for the A-102)
Power consumption: 30mA at +12V and 10mA at -12V
Depth: 60mm
HP : 8
Eurorack
Eurorack is Doepfer's 3U modular format
