Doepfer - A-103 (TB303)

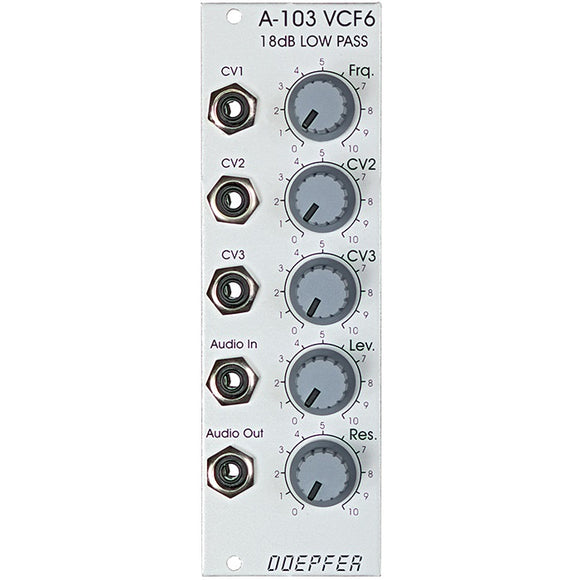

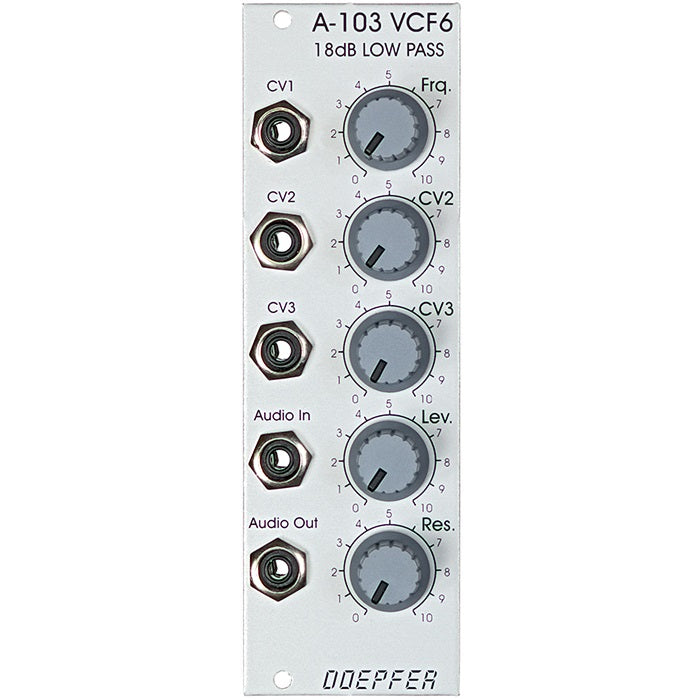

Module A-103 is a voltage controlled low pass filter with 18dB/octave slope.
The circuit is based on a modified transistor ladder (Moog ladder) and is a reproduction of the legendary TB303 filter.
- manual control of filter frequency
- 3 CV inputs (CV1, CV2, CV3), 2 of them with attenuator (CV2, CV3)
- input level control
- resonance control up to self oscillation
Power consumption: 30mA at +12V and 10mA at -12V
Depth: 55mmHP : 8
