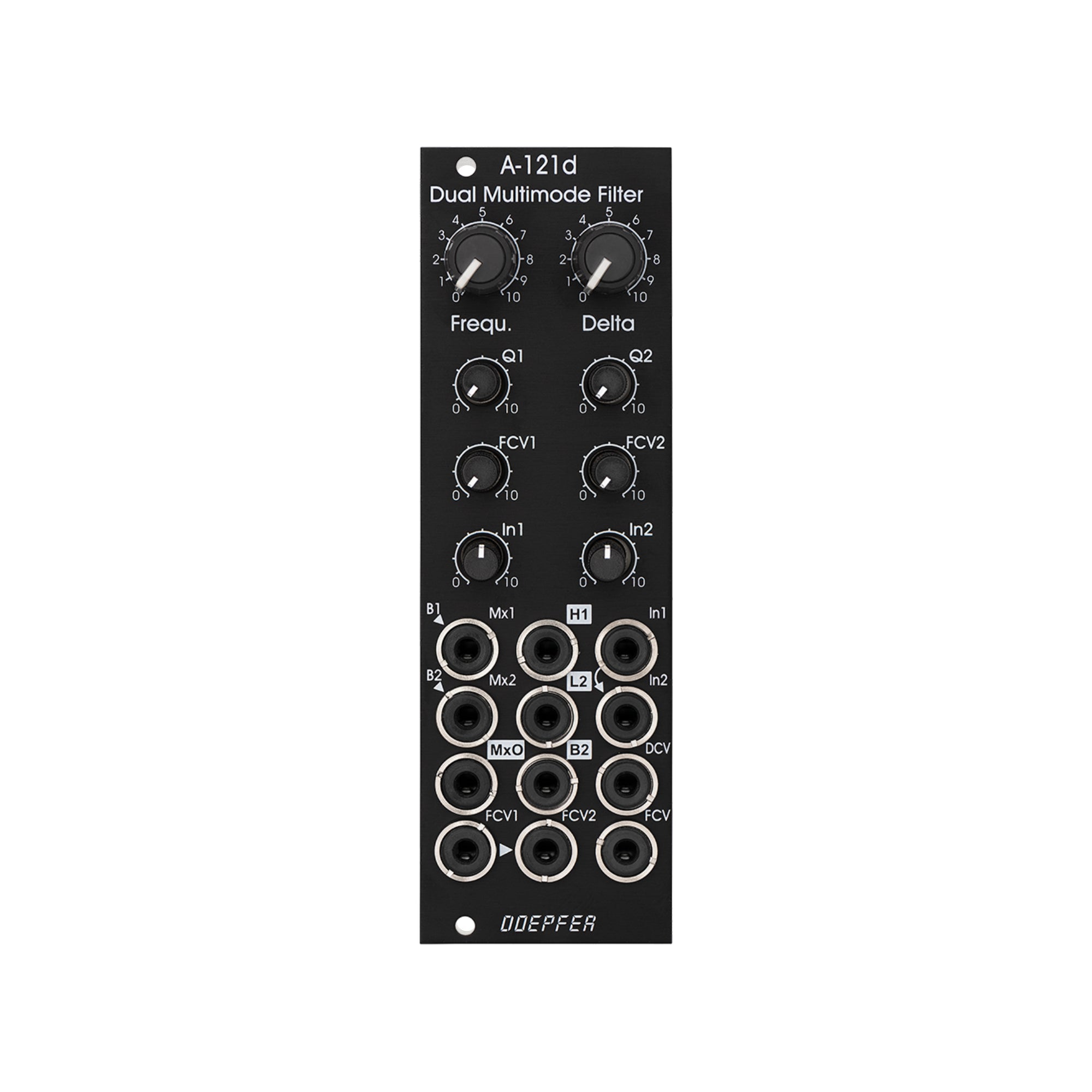

Doepfer - A-121dV Dual Multimode Filter

  • HP: 8

Product Info Module A-121d is a special dual multimode filter which can be used for parallel or serial organized dual... Read more Read more

$189.00Excl. VAT

      Description

      Product Info


      Module A-121d is a special dual multimode filter which can be used for parallel or serial organized dual mono filters. Even stereo applications are imaginable. The filter are based on two special circuits: one with highpass and bandpass outputs, the other with lowpass and bandpass outputs. It’s a new filter design that is not used so far in any other A-100 filter module.

      We attached great importance to the usability of the manual controls and CV inputs for dual filter applications: for the filter frequencies of both filters a common control (Frequ.) and a difference control (Delta, filter spread) are available. For both parameters even CV inputs are available (FCV, DCV). The resonance (Q1, Q2), the sensitivity of the individual frequency control input (FCV1, FCV2) and the level of the audio input (In1, In2) are adjusted by means of the individual controls for each filter.

      The module has a simple audio mixing unit available with the inputs Mx1 and Mx2, and the output MxO. Provided that the mixer inputs are open bandpass 1 and bandpass 2 are normalled to the sockets Mx1 and Mx2. All other filter types are realized by connecting the other filter outputs (H1 = highpass 1, L2 = lowpass 2) to the mixer inputs.

      Two or more modules can be combined to realize e.g. four or more parallel wired bandpass filters.

      Specifications

      • Width: 8hp
      • Depth: 45mm
      • Power: +12V 30mA / -12V 30mA
