Description

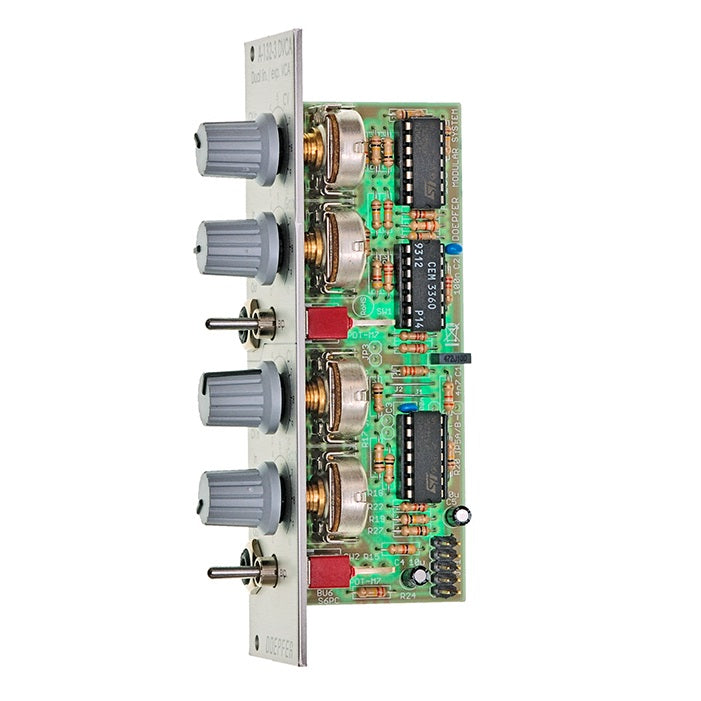

Module A-132-3 is composed of two identical voltage controlled amplifiers (VCA).
Each VCA has a manual gain control and a control voltage input with attenuator. The character of the control scale can be switched to linear or exponential. All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages.
The input has no attenuator available but is capable to process up to 16Vss signals (i.e. -8V...+8V) without distortion.
Power consumption: 30mA at +12V and 30mA at -12V
Depth: 50mm
HP : 8

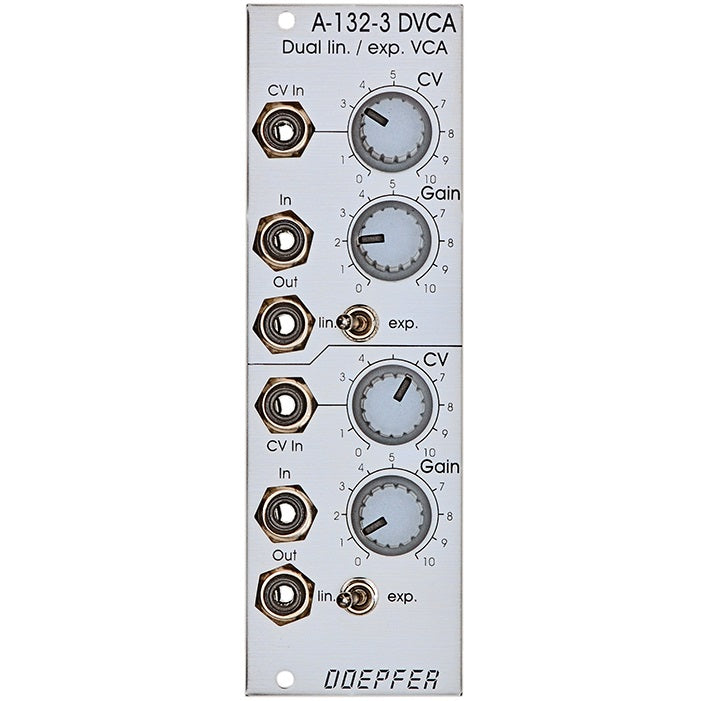

Doepfer - A-132-3 Dual linear/exponential VCA
$127.00
Out of Stock
Description
Module A-132-3 is composed of two identical voltage controlled amplifiers (VCA).
Each VCA has a manual gain control and a control voltage input with attenuator. The character of the control scale can be switched to linear or exponential. All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages.
The input has no attenuator available but is capable to process up to 16Vss signals (i.e. -8V...+8V) without distortion.
Power consumption: 30mA at +12V and 30mA at -12V
Depth: 50mm
HP : 8
Eurorack
Eurorack is Doepfer's 3U modular format
