Description

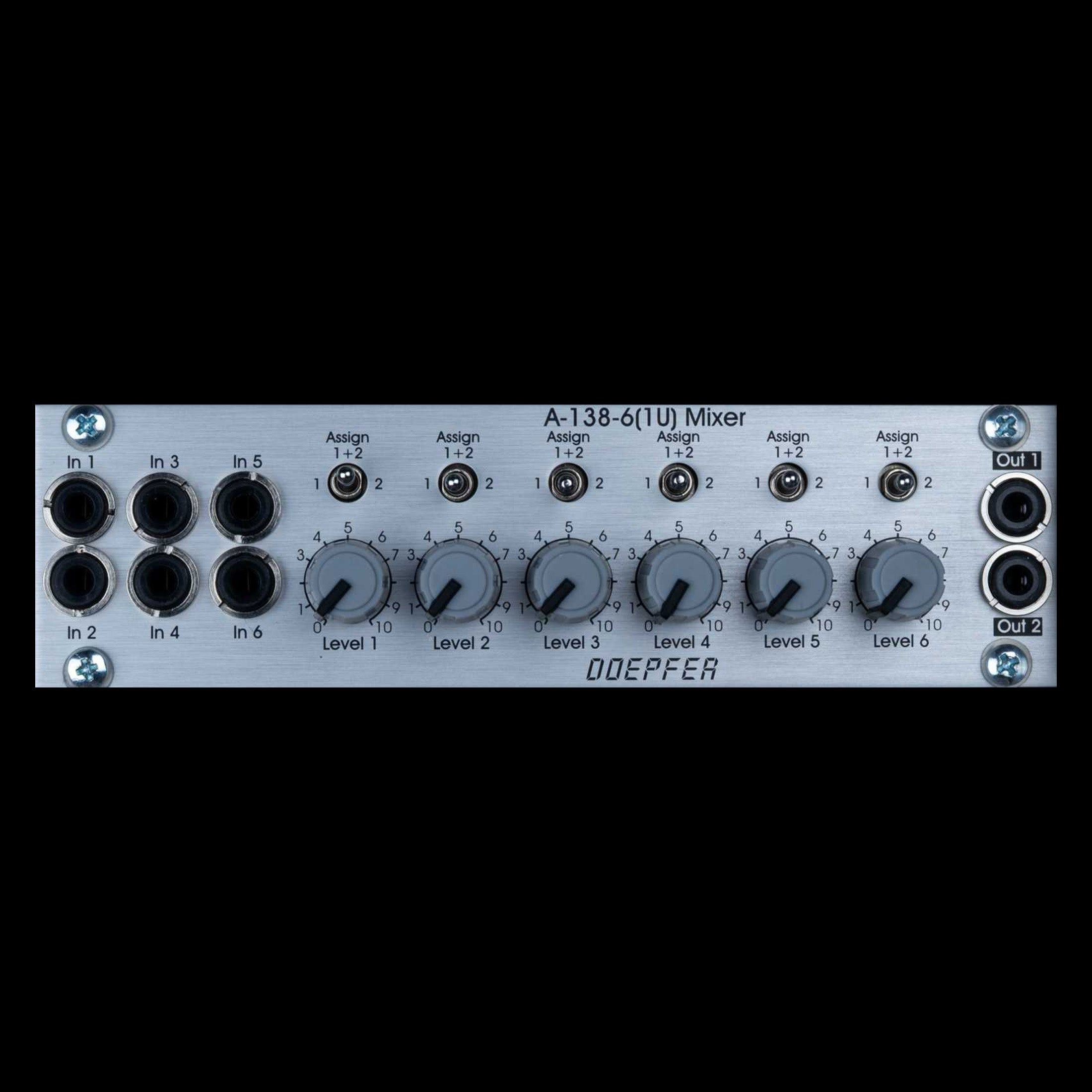

Module A-138-6(1U) is a mixer with 6 inputs and the feature to route each input to one of the two outputs or to both outputs.

The module is equipped with these controls, inputs and outputs:

• 6 inputs (sockets In 1...6)
• 6 level controls (Level 1...6), linear characteristic
• 6 toggle switches (Assign) for the assignment of each input to the two outputs
  • switch in left position: channel 1
  • center position: both channels
  • switch in right position: channel 2
• 2 outputs (sockets Out 1 and Out 2)

All sockets are monophonic.
