Description

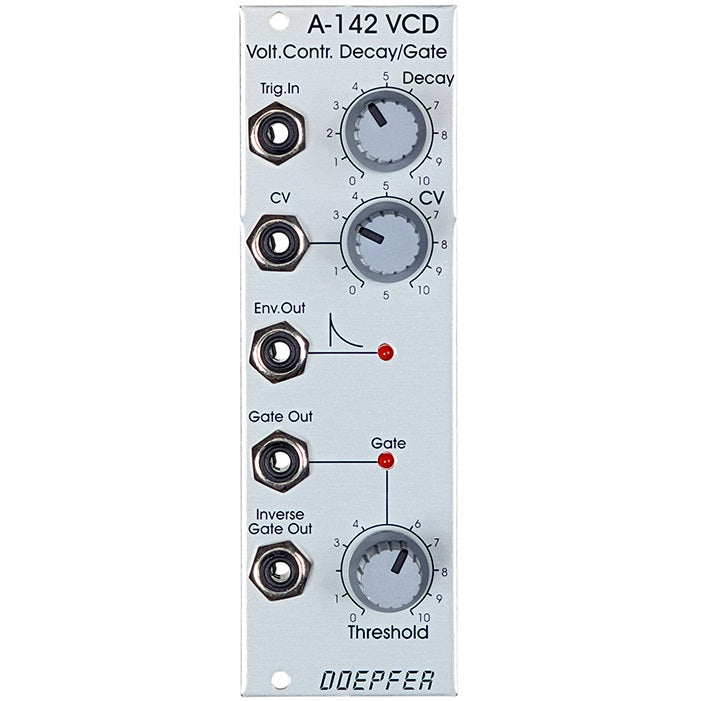

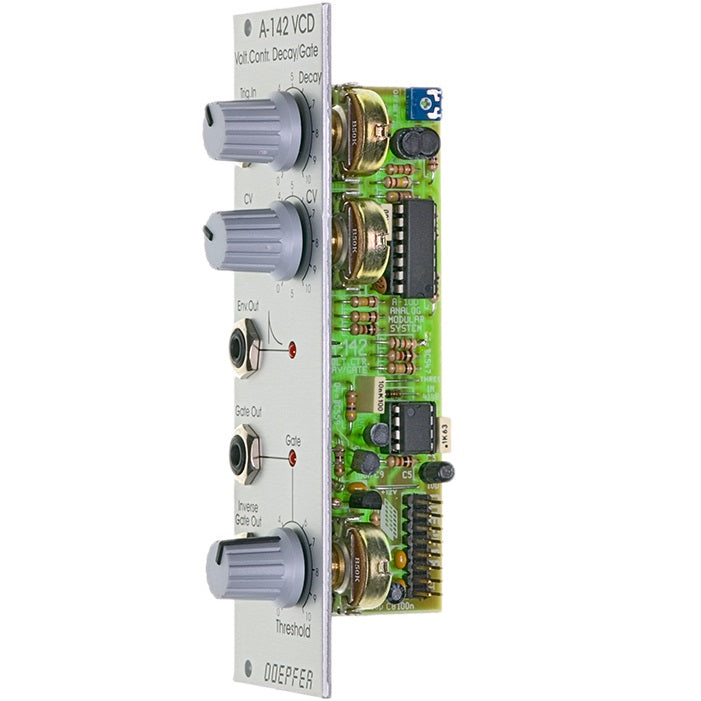

Module A-142-1 is a voltage controlled envelope generator. The only time parameter is decay (like TB303).
Decay may be adjusted manually and via voltage control input (with attenuator). The envelope output is displayed with LED control. Additionally from the envelope signal a Gate signal and an inverse Gate signal with adjustable threshold is derived. LED control for Gate output. Thus one obtains a voltage controlled Gate additionally or alternatively to the envelope signal with voltage controlled duration. The attack time is fixed to about 0.2 ms, the shortest decay time is about 2 ms. By changing the value of a capacitor the shortest time can be modified.
Power consumption: 40mA at +12V and 30mA at -12V
Depth: 70mm
HP : 8Doepfer - A-142-1 Voltage Controlled Decay/Gate
$125.00
1 in stock
Description
Module A-142-1 is a voltage controlled envelope generator. The only time parameter is decay (like TB303).
Decay may be adjusted manually and via voltage control input (with attenuator). The envelope output is displayed with LED control. Additionally from the envelope signal a Gate signal and an inverse Gate signal with adjustable threshold is derived. LED control for Gate output. Thus one obtains a voltage controlled Gate additionally or alternatively to the envelope signal with voltage controlled duration. The attack time is fixed to about 0.2 ms, the shortest decay time is about 2 ms. By changing the value of a capacitor the shortest time can be modified.
Power consumption: 40mA at +12V and 30mA at -12V
Depth: 70mm
HP : 8
Eurorack
Eurorack is Doepfer's 3U modular format
