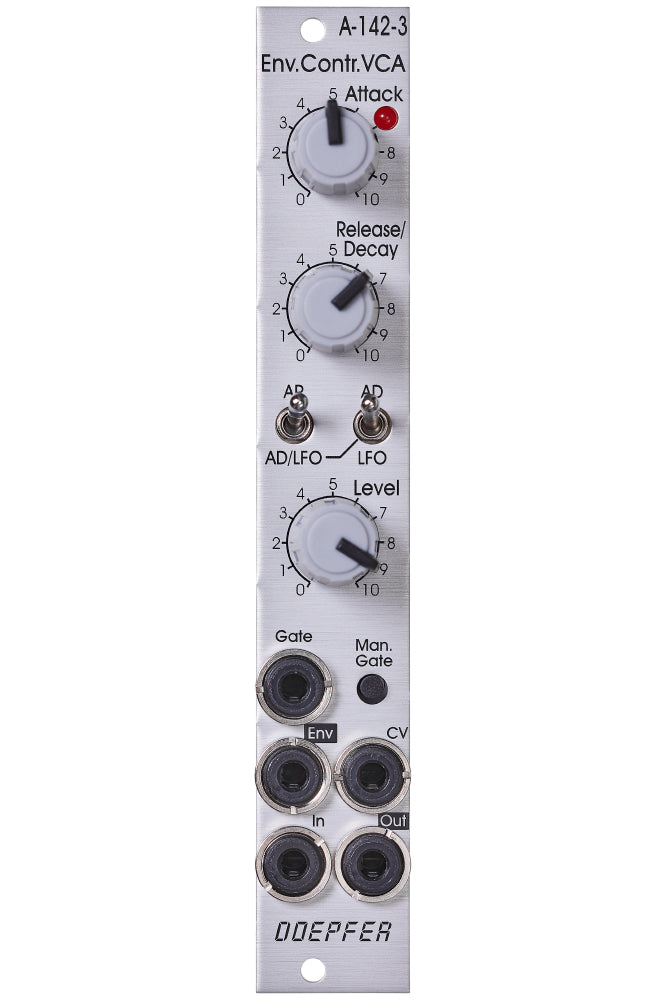

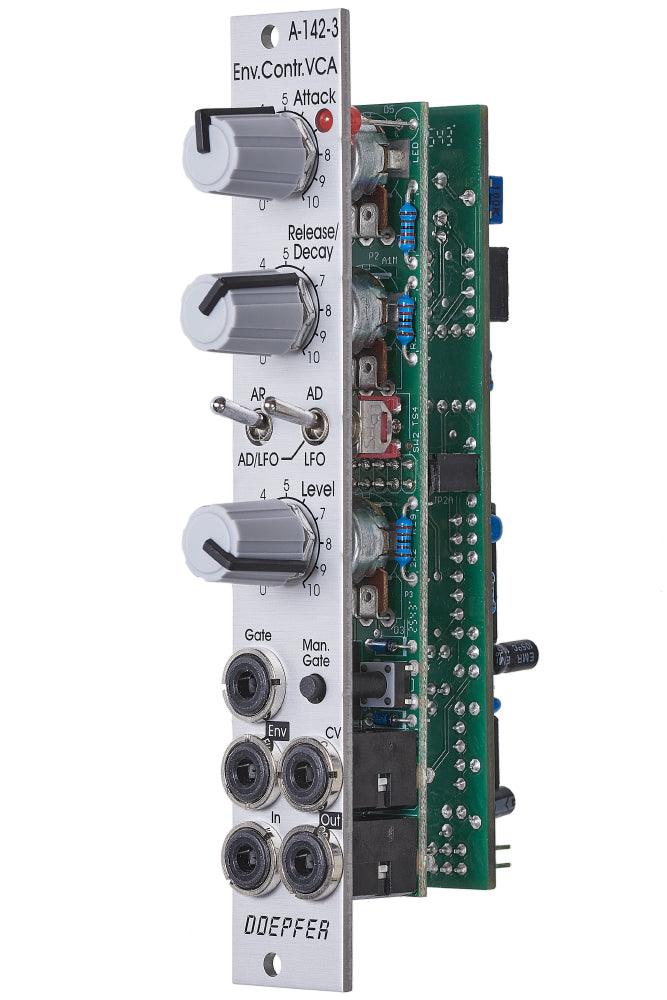

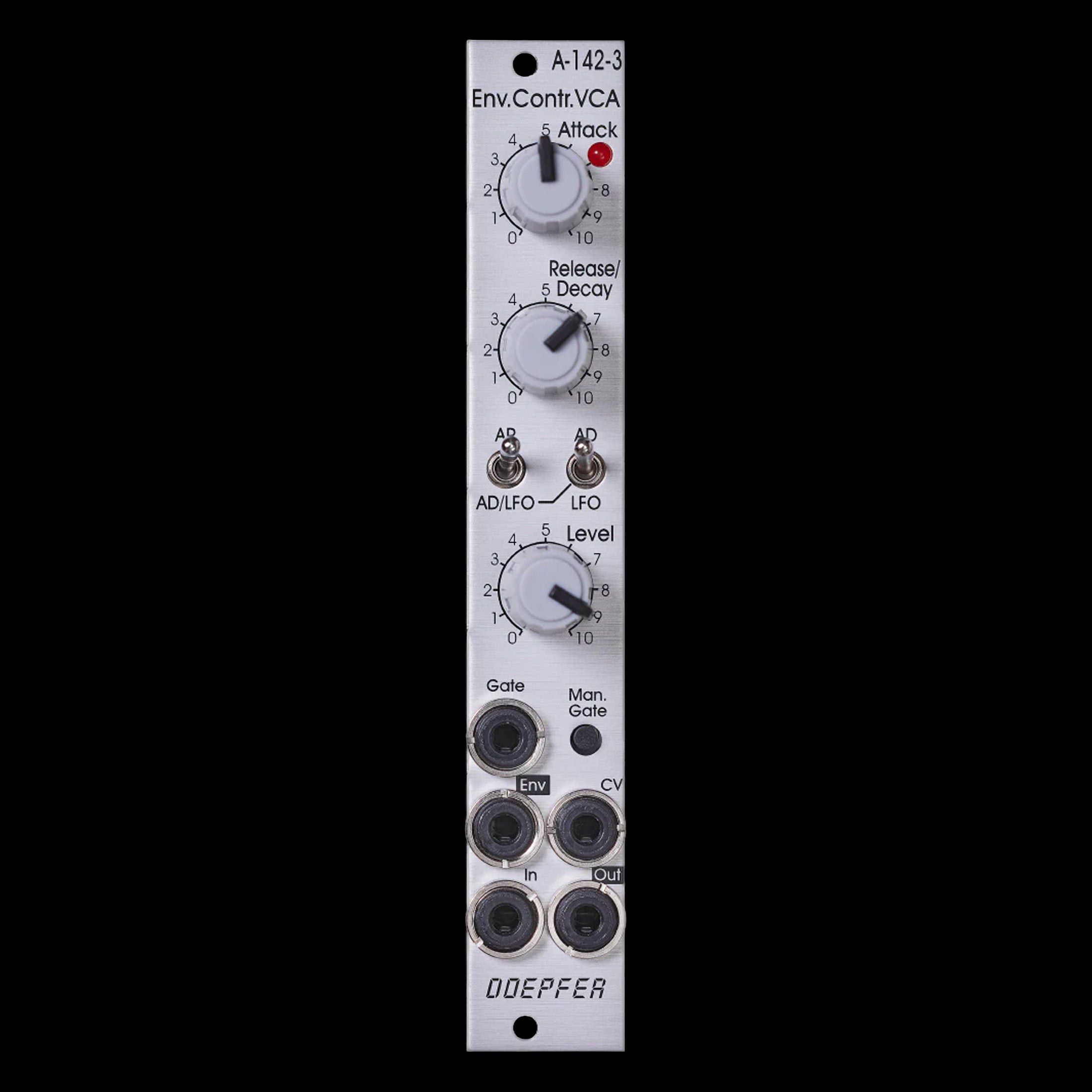

Doepfer A-142-3

The A-142-3 Envelope Controlled VCA from Doepfer combines two crucial elements of any voice to provide a streamlined method for making percussive envelopes from any sound source. Despite its slim 4hp size, the A-142-3 is surprisingly flexible, featuring two switches that allow you to configure the device as an AR envelope with sustain capability, a one-shot AD envelope without sustain, or even a cycling LFO. Onboard the panel you get manual controls for both the Attack and Release/Decay stage lengths, as well as a manual level control for the VCA input. Simply apply your oscillator or any other audio signal to the input, patch in a Gate source, and you've got a full voice set-up in an ultra-small form factor. Also included in the module is a manual gate button for triggering the envelope by hand, as well as a dedicated envelope output for routing the modulation shape to another parameter in your patch, for example to the cutoff control on a filter module for organic sounds that change in timbre as they decay. Finally, a separate CV input is available for directly controlling the VCA, replacing the internal envelope with any signal you patch into it. Additional configuration options for stage time lengths, mixing multiple units, and LFO ranges are available using jumpers on the back of the module. Bringing a ton of simple yet flexible envelope control to any Eurorack rig, Doepfer's A-142-3 is a useful addition to all sorts of systems.

A-142-3 Features

• Combined AD/AR envelope/LFO and VCA module
• Provides a simple solution for creating percussive envelopes from any sound source
• Manual control over Attack and Release/Decay time
• Manual VCA input level control
• Two switches for selecting AR mode (with sustain), AD envelope mode (no sustain), or LFO mode
• Gate input and manual gate button
• VCA input and output
• Envelope output normalled to VCA input when input is unpatched
• Additional configuration options using jumpers on back of module
• VCA is suitable for audio signals only
