Description
Module A-190-7(1U) is the 1U version of the A-190-9. The functions of A-190-7 are exactly the same as for the A-190-9. Only the positions of the controls and sockets are different because of the 1U format.
This document explains the function of the pin headers and jumpers, as well as the internal connection to module A-155-2 or A-155-3: A190_7_jumper.pdf

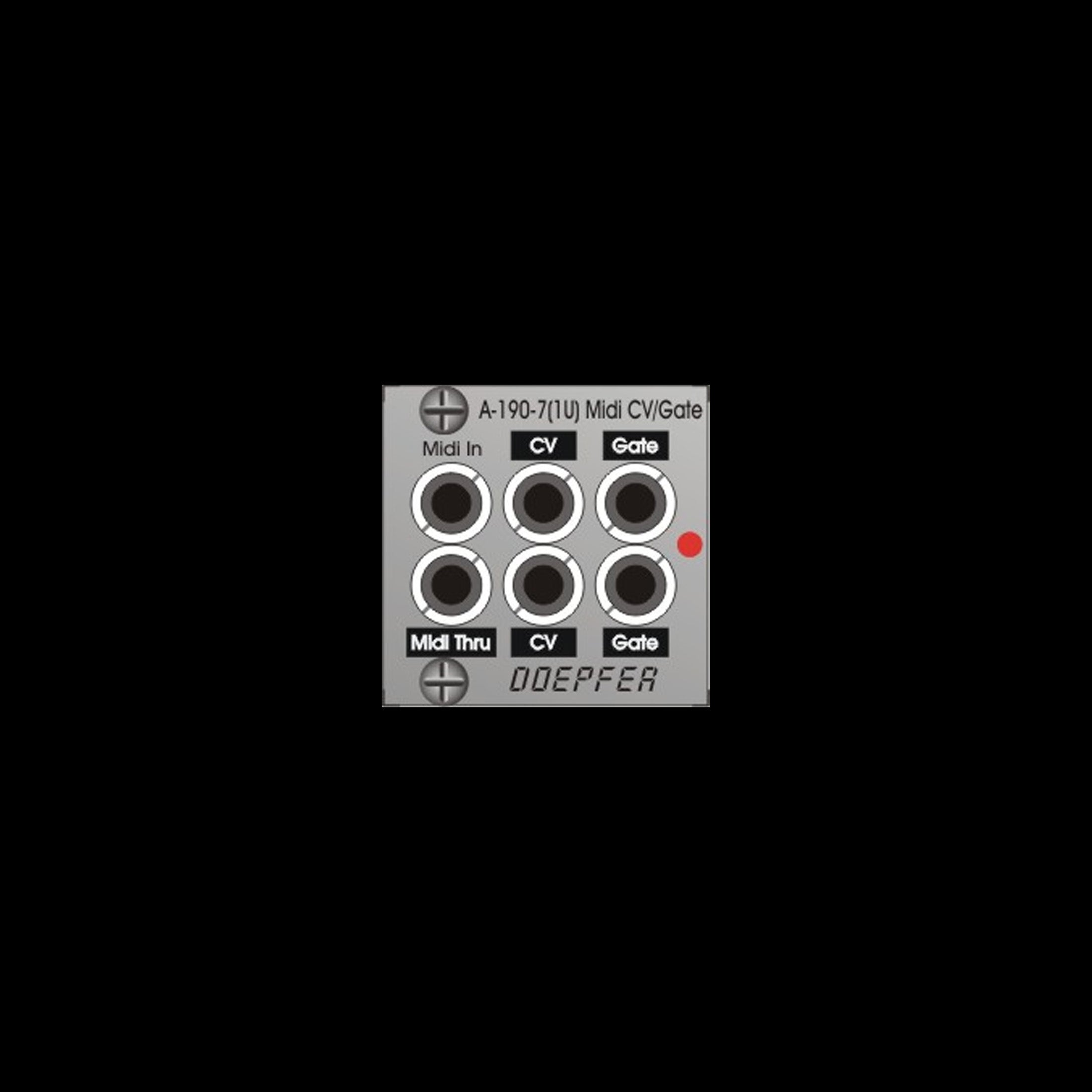

Doepfer - A-190-7 1U Micro Midi CV/Gate Interface
$75.00
Description
Module A-190-7(1U) is the 1U version of the A-190-9. The functions of A-190-7 are exactly the same as for the A-190-9. Only the positions of the controls and sockets are different because of the 1U format.
This document explains the function of the pin headers and jumpers, as well as the internal connection to module A-155-2 or A-155-3: A190_7_jumper.pdf
Eurorack
Eurorack is Doepfer's 3U modular format
