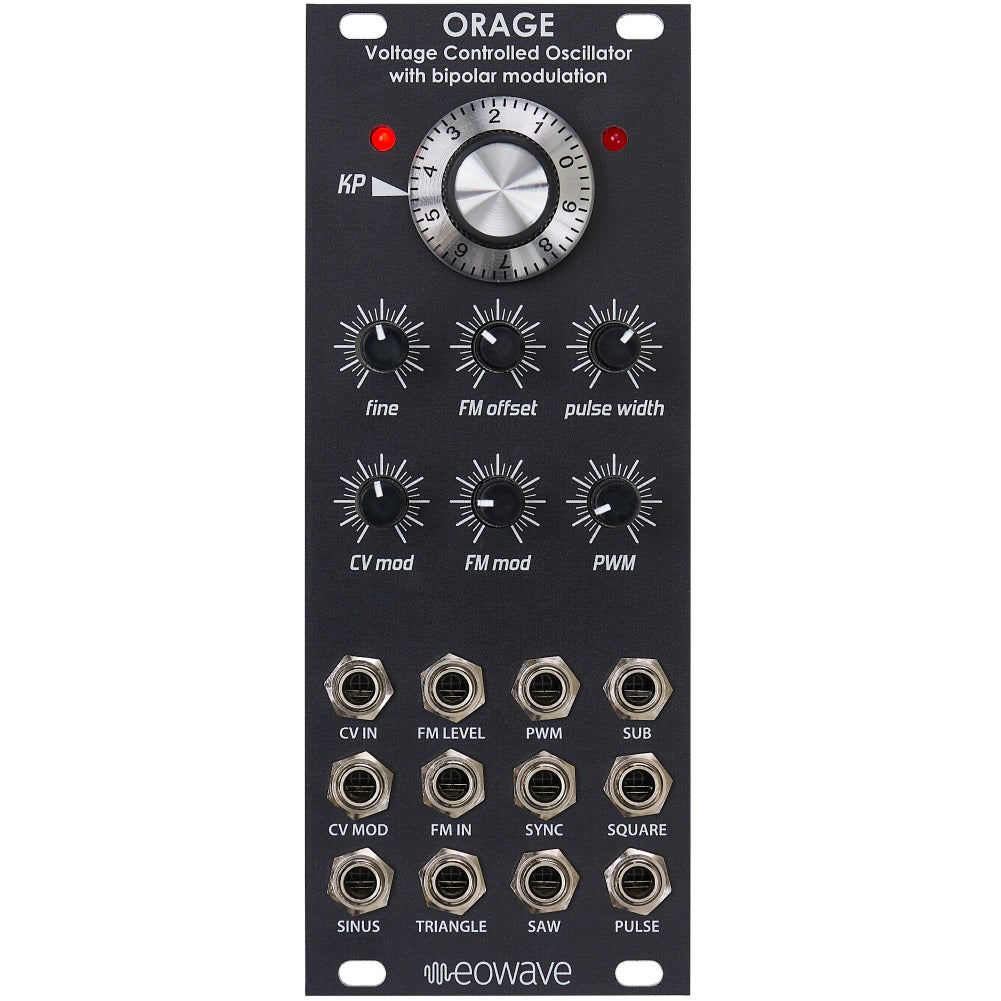

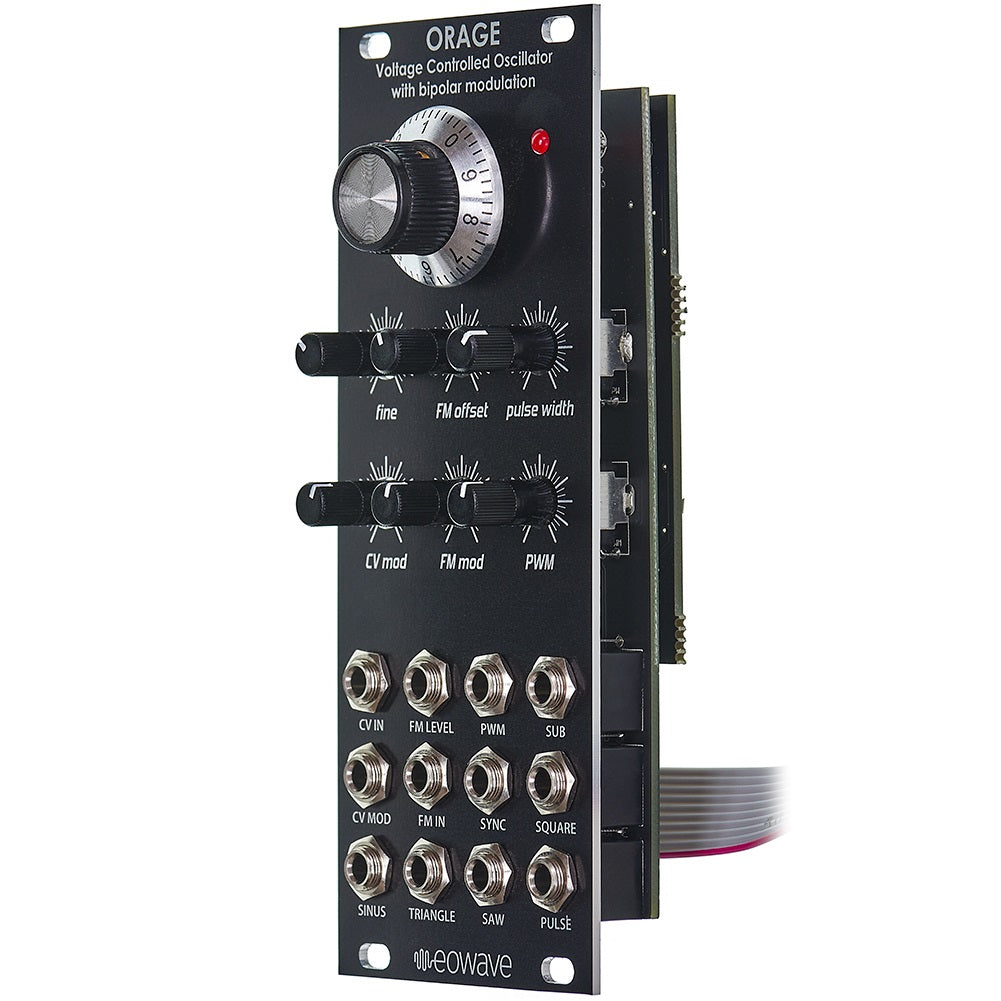

eowave - Orage MKII VCO

The Orage mkll is a triangle core based voltage controlled oscillator which enables different modulation types from thru zero FM synthesis, linear as well as exponential modulations, pulsewidth modulation to phase inversion modulation.

There are 5 individual outputs for sine, triangle, saw, pulse, square waveforms. Additionally it offers a sub out.
It also has a sync input to synchronise two Orage modules.

Power consumption: 25mA at +12 V and 25mA at -12 V

Depth: 40mm
