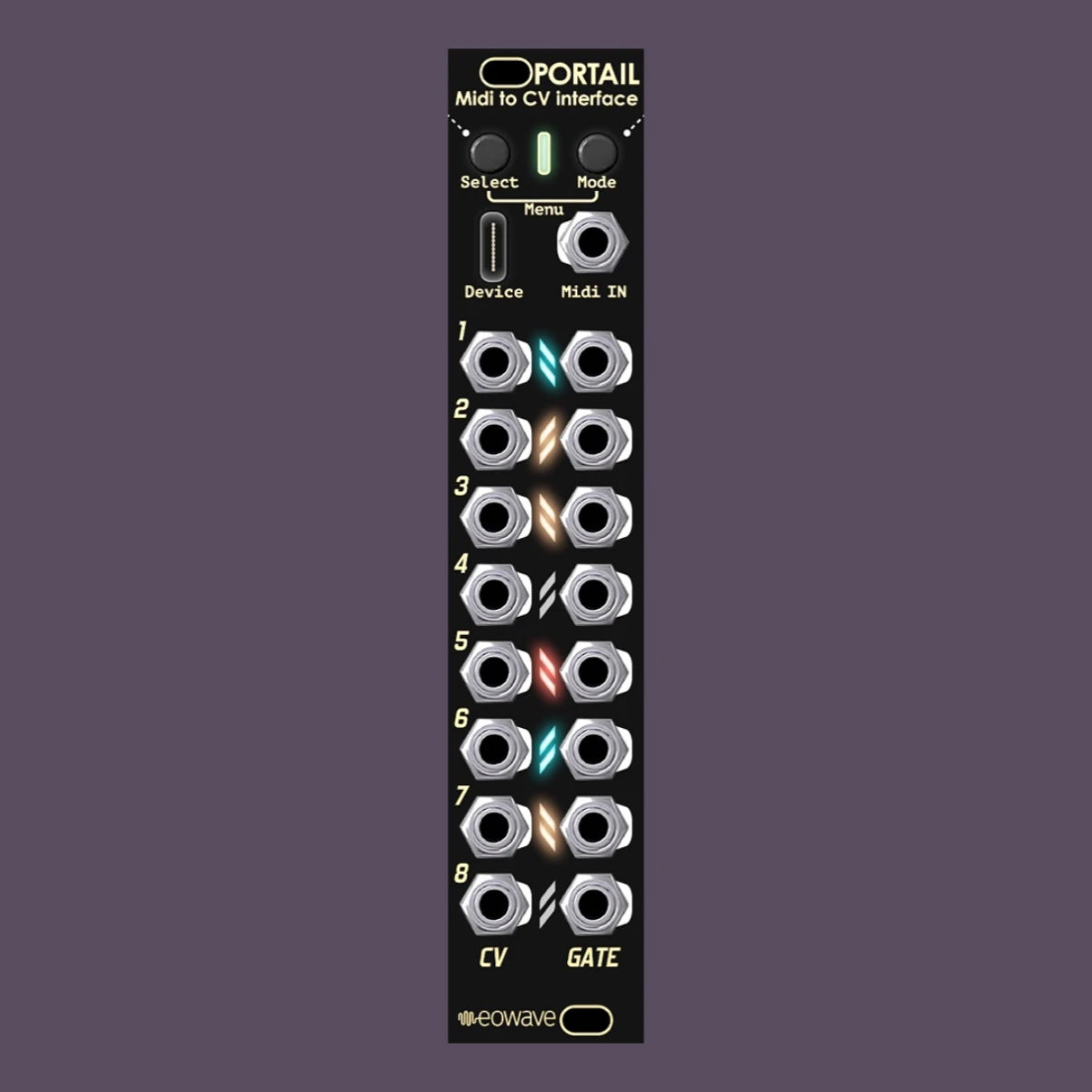

Portail is a powerful compact and highly configurable digital interface designed to connect your MIDI instruments with the Eurorack environment. Created to fit with the flexibility and interconnectivity of modular synthesiser, it provides a direct and versatile bridge for controlilng your rig.
Multiple Connections: Connect seamlessly via TRS MIDI or USB-C.
Configurable Outputs: Offers up to 16 assignable CV/Gate outputs (8 x 16 bit outputs labeled CV and 8 x 12 bit outputs labeled GATE) . You can configure them as classic V/Oct and Gate pairs, polyphonic voice outputs with various modes, dedicated drum triggers , dynamic gates sensitive to note velocity , lfo, envelopes, clock.
Control the conversion: Parameters can be controlled directly via incoming MIDI CC messages( you can midi learn the modulation) for example control the ADSR parameters or the range of a random generator with midi CC messages.
Dynamic Response: Create patches with expressive control using dynamic gates that translate MIDI velocity into varying gate levels ( perfect for analog modules).
Deep Customization: Use the web configurator to define the precise behavior and assignment of each of the 16 outputs. You can check the (still in developement) configurator here :
Integrated Modifiers: Enhance your control signals with midi effect like gate probability and scale quantization, adding variation and musical structure directly at the output stage.
Available modes:
-
Note out: Convert the midi not to a cv 1 V/oct output. you can set the pitch bend range, the amount of vibrator on the CV and the glide time between notes. You set a polyphonic stack.
-
Gate out:output a gate when a midi note is played. you can set the range of the gate, create small attack and decay Set the gate amplitude is velocity sensitive and if the gate retrig if a new note is played while a previous one still pressed(legato).
-
Trig out: Output a trig when a specific midi note is played. you can set the length of the trig, if the amplitude is velocity sensitive. The minimum value and the range.
-
CC/Pitch bend: Convert a cc to a cv. you can set if there is afilter to smooth you output.
-
Velocity: Output a cv coresponding to a note velocity
-
Aftertouch: Output a cv coresponding to an aftertouch signal
-
Poly Aftertouch: Output a cv coresponding to a specific note aftertouch signal
-
Clock: convert the midi clock to gate clock. you can set the type ( clock, start/stop, rest) the division,and the length
-
LFO: Output a cv lfo. you can set the waveform and the clock division
-
Envelope: Output a cv envelope. you can set the type( AD,AR,ADSR,Loop) and set the attack, decay, sustain, release.
-
Sequencer: A simple sequencer who output notes.
-
Arpeggiator: arpegiate your midi notes. you can set the type , time divisions and the latch mode.
-
Euclidean: an euclidean sequencer who output gates
-
Random: Output a random value synced to a clock or each time a note is played. you can filter it.
Available effects:
-
Scale: add a classical tonal scale to a cv output.
-
Microtonal: Add a microtonal scale to an output( you can have 8 tables of microtonal scales on your portail)
-
Random: randomise the probability of note change
-
Delay: delay a midi event note
-
Probability: modify the probability of a gate to be outputed
-
Note filter: limits the maximum value that a sort will take into account.
-
Velocity VCA: use an output to modify the amplitude of another output
-
Random Octave: randomise the octave of a note output
-
Math: binary operation on midi notes
Portail provides a direct, flexible, and deeply configurable link between your MIDI gear and your modular system.
