Expert Sleepers - Disting mk4

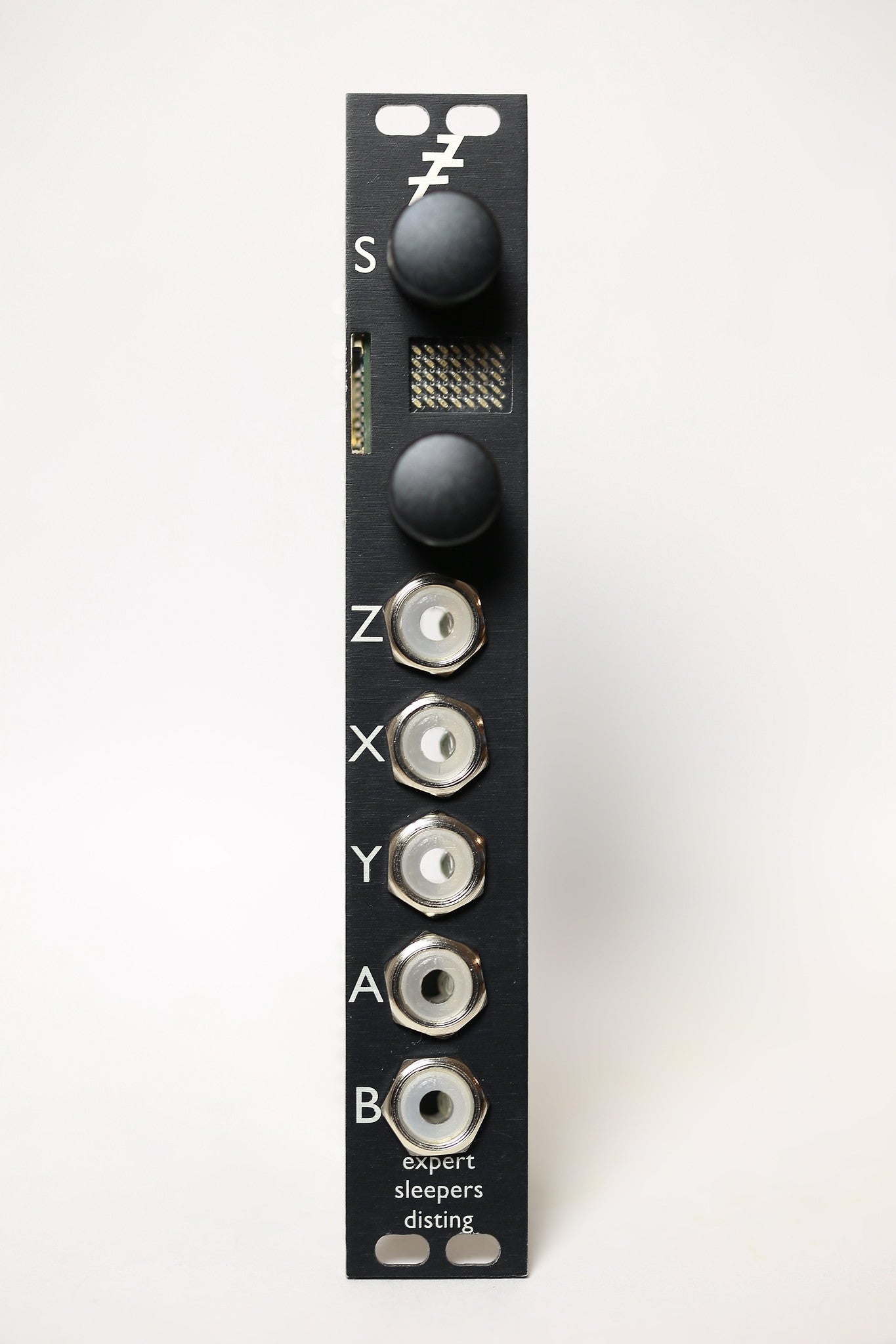

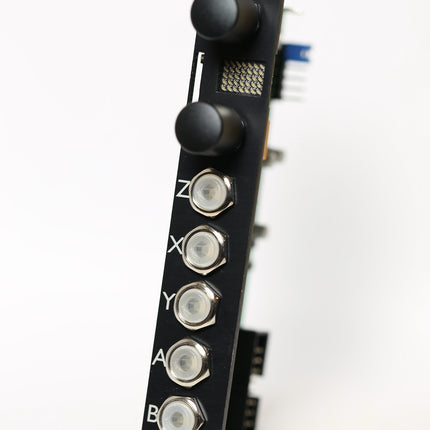

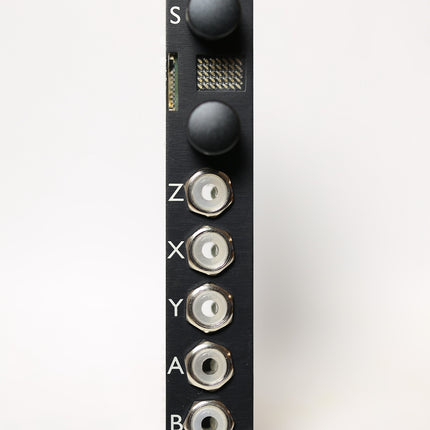

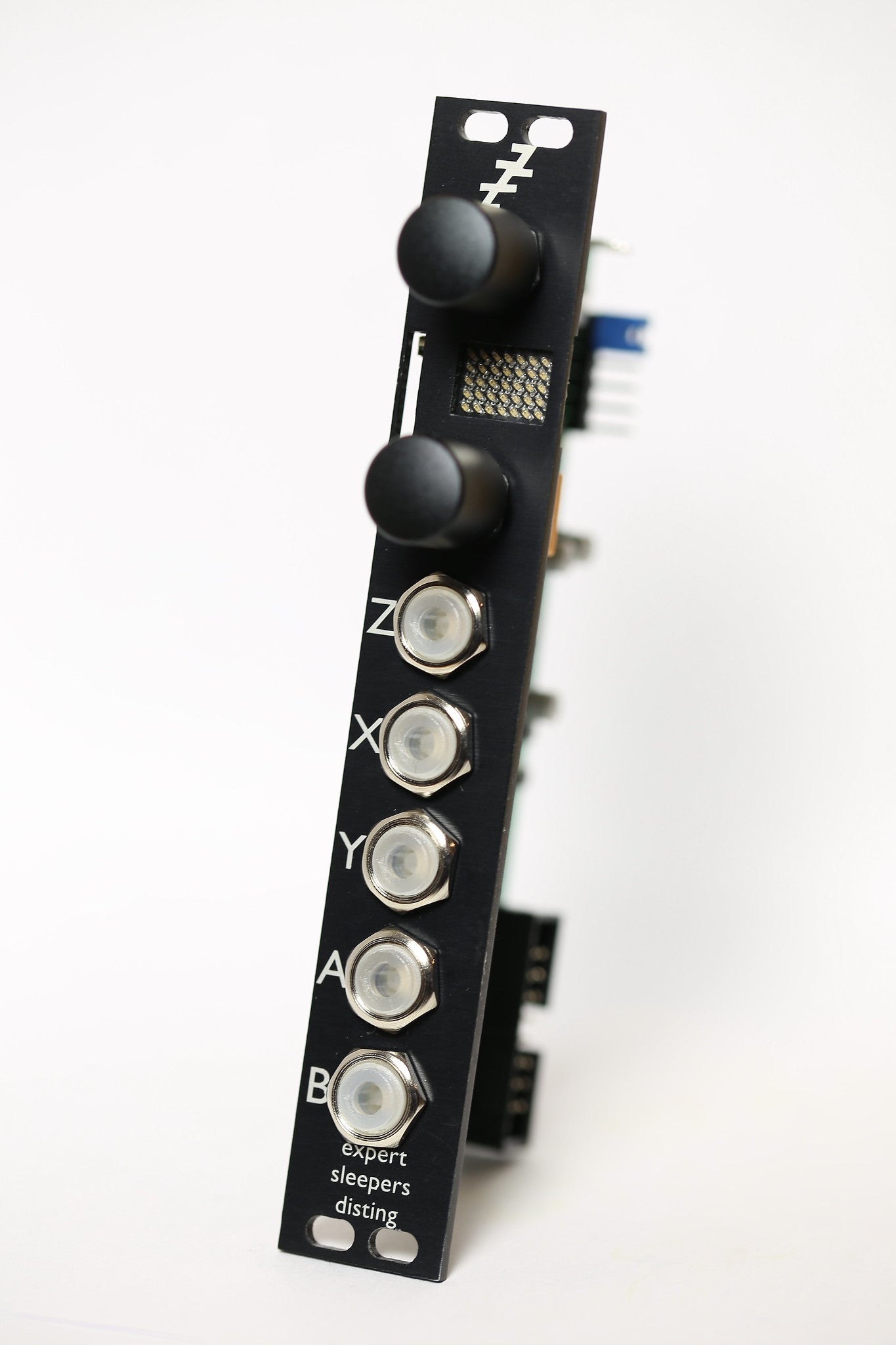

The disting is a many-in-1 multifunction module, offering a variety of CV and audio processes, including a selection of oscillators (LFOs/VCOs). All algorithms have two high-precision inputs and outputs, and a third control input, exposed on a front panel knob and a CV input.

The disting is also a sample (WAV) file and MIDI file player, with a variety of options for sample triggering, playback speed etc.

There are currently 84 distinct algorithms. The first 16 ('classic disting') are:

• Precision Adder with integer voltage offsets
• Four Quadrant Multiplier with integer multiply/divide
• Full-wave Rectifier
• Minimum/maximum
• Linear/Exponential Converter
• Quantizer with selectable scales
• Comparator with adjustable hysteresis
• Dual Waveshaper wavefolder and triangle-to-sine shaper
• Sample and Hold with noise source and adjustable slew rate
• Slew Rate Limiter with linear and exponential slew
• Pitch and Envelope Tracker
• Clockable Delay/Echo
• LFO with through zero frequency control and waveshaping
• Clockable LFO with multiply/divide and waveshaping
• VCO with linear FM sine and saw outputs
• VCO with waveshaping saw/triangle and pulse outputs

The remaining algorithms are:

• Precision Adder with fractional voltage offsets
• Voltage Controlled Delay Line vibrato/chorus/flange effects
• Clockable Ping Pong Delay
• Clockable Ping Pong Delay with input pan control
• Resonator for drum synthesis
• Vocoder 12 band
• Phaser up to 10 stages
• Bit Crusher
• Tape Delay with voltage controlled tape speed
• Waveform Animator
• State Variable Filter smoothly variable filter type
• LP/HP Filter
• LP/BP Filter
• BP/HP Filter
• BP/Notch Filter
• AR Envelope
• AR Envelope (with push)
• AR Envelope & VCA
• AR Envelope & VCA (with push)
• Dual AR Envelope
• Dual AR Envelope (with push)
• Euro to 1.2v/oct Converter
• 1.2v/oct to Euro Converter
• Clockable AD Envelope (with mute)
• Clockable AD Envelope (with gate)
• Clockable AD Envelope (with trigger)
• Clockable AD Envelope & VCA
• Shift Register Random CVs
• Shift Register Random Quantized CVs
• Shift Register Random Triggers
• Shift Register Random Dual Triggers
• Emulation
• Emulation
• Pitch Reference
• Frequency Reference
• Tuner
• MIDI Clock
• MIDI/CV
• CV/MIDI
• Crossfade/Pan
• Dual Sample and Hold
• Dual Quantizer (Z scale)
• Dual Quantizer
• Dual Euclidean Patterns
• Dual Delayed Pulse Generator
• Noise
• Programmable Quantizer
• Stereo Reverb
• Mono-to-Stereo Reverb
• Dual Reverb
• Stereo Chorus
• Mono Chorus
• Gate
• Delayed LFO
• Scaled LFO

The functions relating to playing back audio and MIDI files from the MicroSD card are:

• Audio Playback
• Clocked Audio Playback
• Audio Playback with V/Oct
• Audio Playback with Z Speed
• Audio Playback with Reverse
• Dual Audio Playback
• Dual Audio Playback with Z Speed
• MIDI File Playback (Clocked)
• MIDI File Playback (Free Running)
• Audio Playback with End CV
• Audio Recorder
• Wavetable VCO
