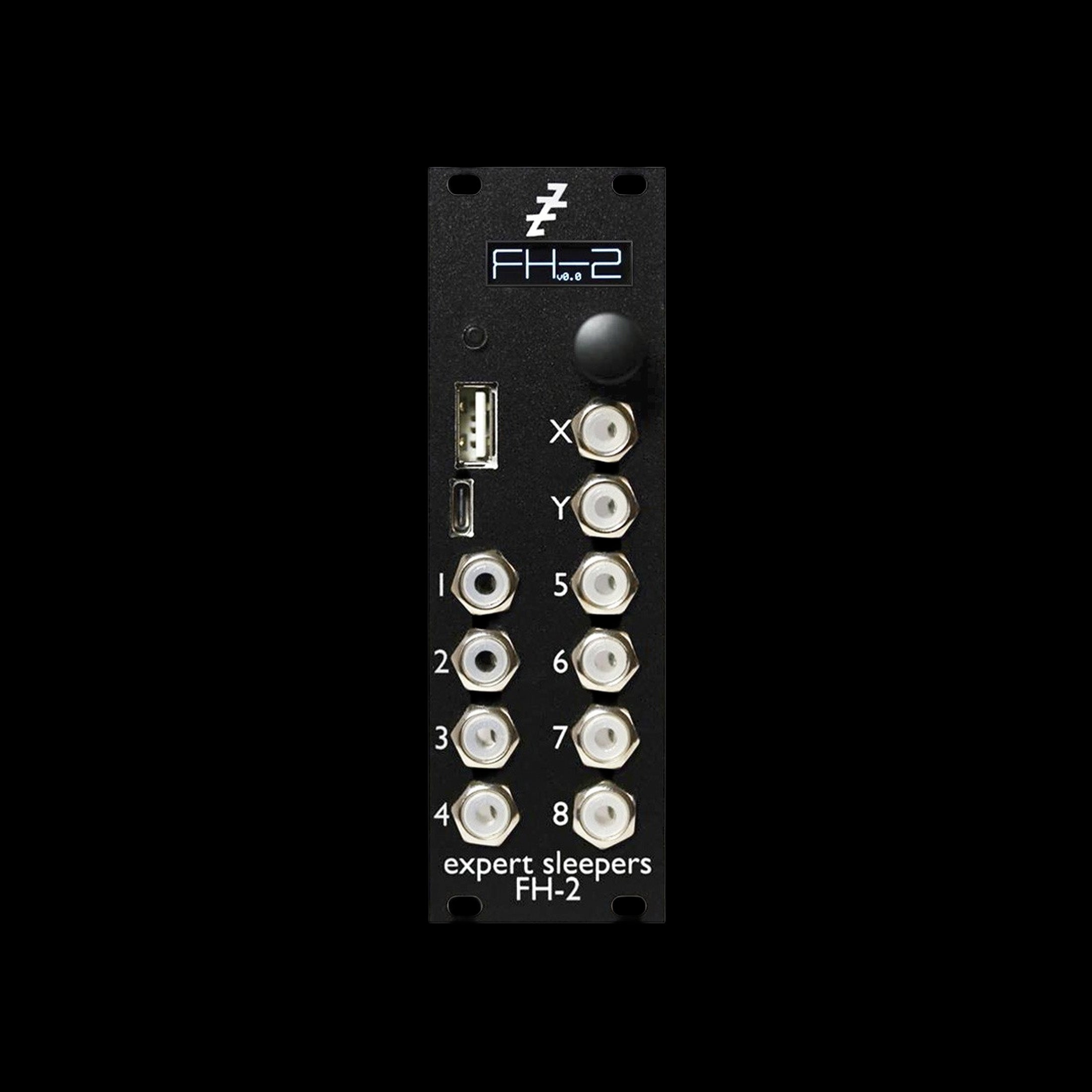

The FH-2 is an 8HP Eurorack module combining the following functions:

  • MIDI to CV conversion including polyphonic and MPE operation.
    • The FH-2 is simultaneously a USB MIDI host, a USB MIDI device, and also supports traditional 5-pin DIN MIDI.
    • Support for drum triggers including triggers with velocity or accents.
    • Support for automatic VCO calibration (similar to that in Silent Way).
  • Clock generation and synchronisation.
    • MIDI clock (in and out), analogue clock (in and out), or internal clock (BPM or tap tempo).
  • LFO generation, including tempo-synced LFOs.
  • Arpeggiators.
  • Euclidean pattern generators.

The FH-2 has 8 high precision CV outputs, expandable to 64 with the FHX-8CV Expander. Up to 64 additional gate/trigger/clock outputs can also be added with the FHX-8GT Gate Expander.

The module can be completely configured via its own UI, but a convenient web-based configuration tool is also available here, which communicates with the module directly via MIDI SysEx.



Specifications

The FH-2's specifications are as follows:

  • Panel width: 8HP
  • Module depth: 48mm
  • Current draw: 118mA on the +12V rail, 48mA on the -12V railplus
        the power requirement of any attached USB device. See the
    manual
      for information on calculating the current draw on the +12V rail from the USB device.
  • Outputs: 8
    • Digital-to-analogue conversion: 14 bit
    • Voltage range: software selectable between ±5V, 0-10V
  • Inputs: 2 CV inputs
  • USB host:
    • Type A connector
    • Class Compliant USB MIDI host.
    • Class Compliant USB HID host (for mice, gamepads etc.).
    • Supports USB hubs.
  • USB device:
    • Type C connector
    • Class Compliant USB MIDI device (plug'n'play with macOS, Windows, Linux and iOS).
  • Expansion:
    • Header for connecting FHX-8CV or FHX-8GT expanders.
    • Header for 5-pin DIN MIDI via a compatible breakout.
    • An FH-1 may also be used as an expander, over USB.
  • Controls: 1 rotary encoder (with push button), 1 push button
  • 0.91" OLED display

For more detail, please see the user manual.
