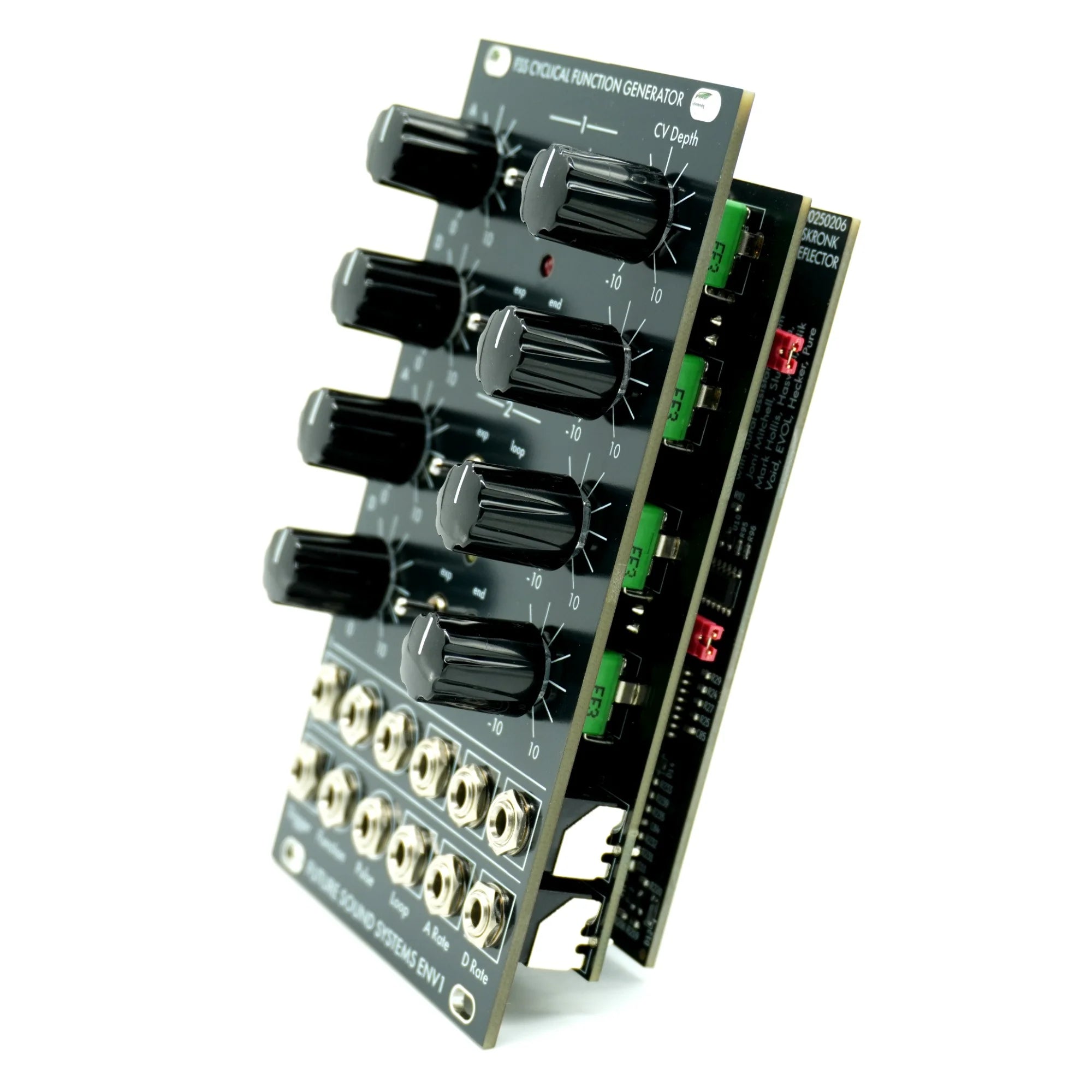

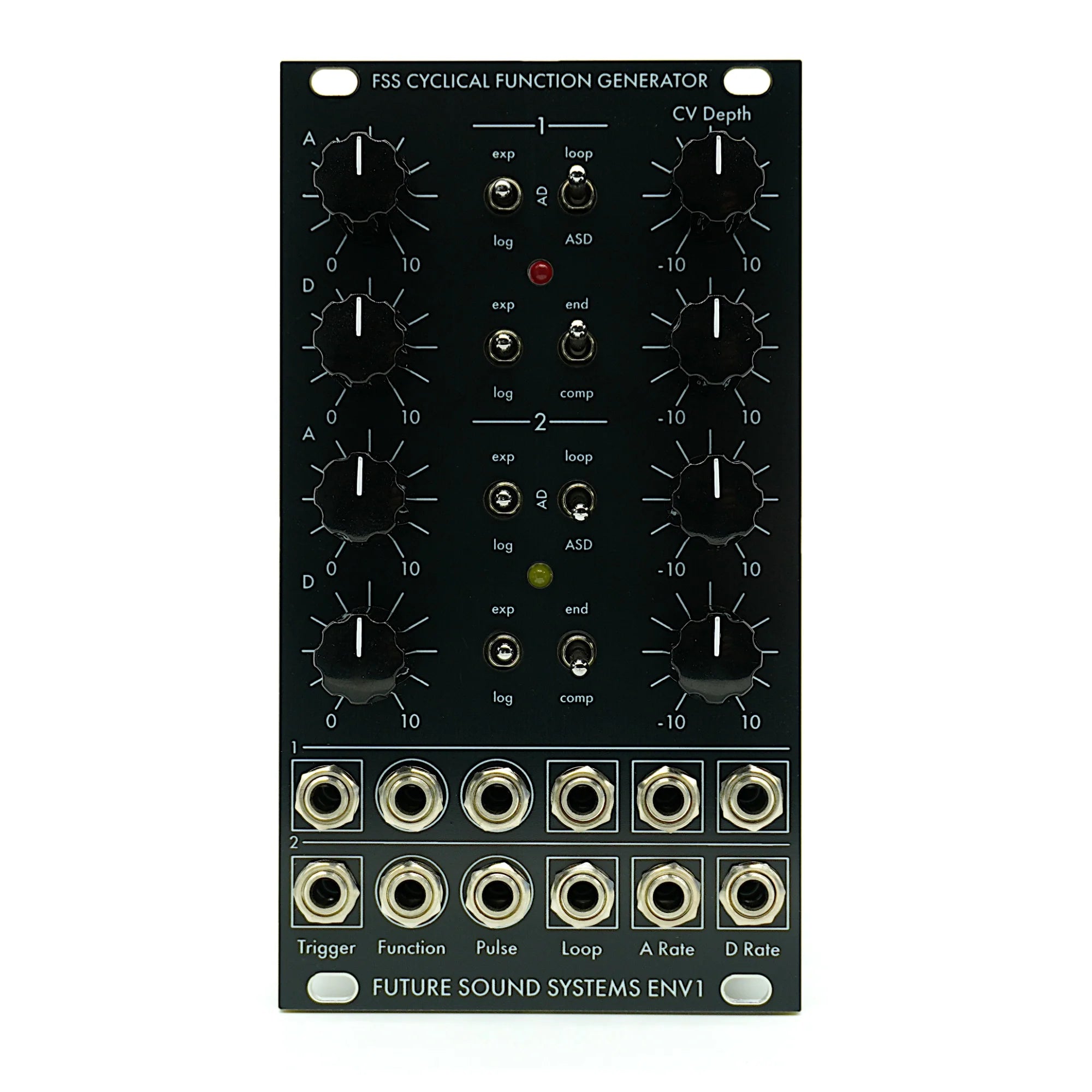

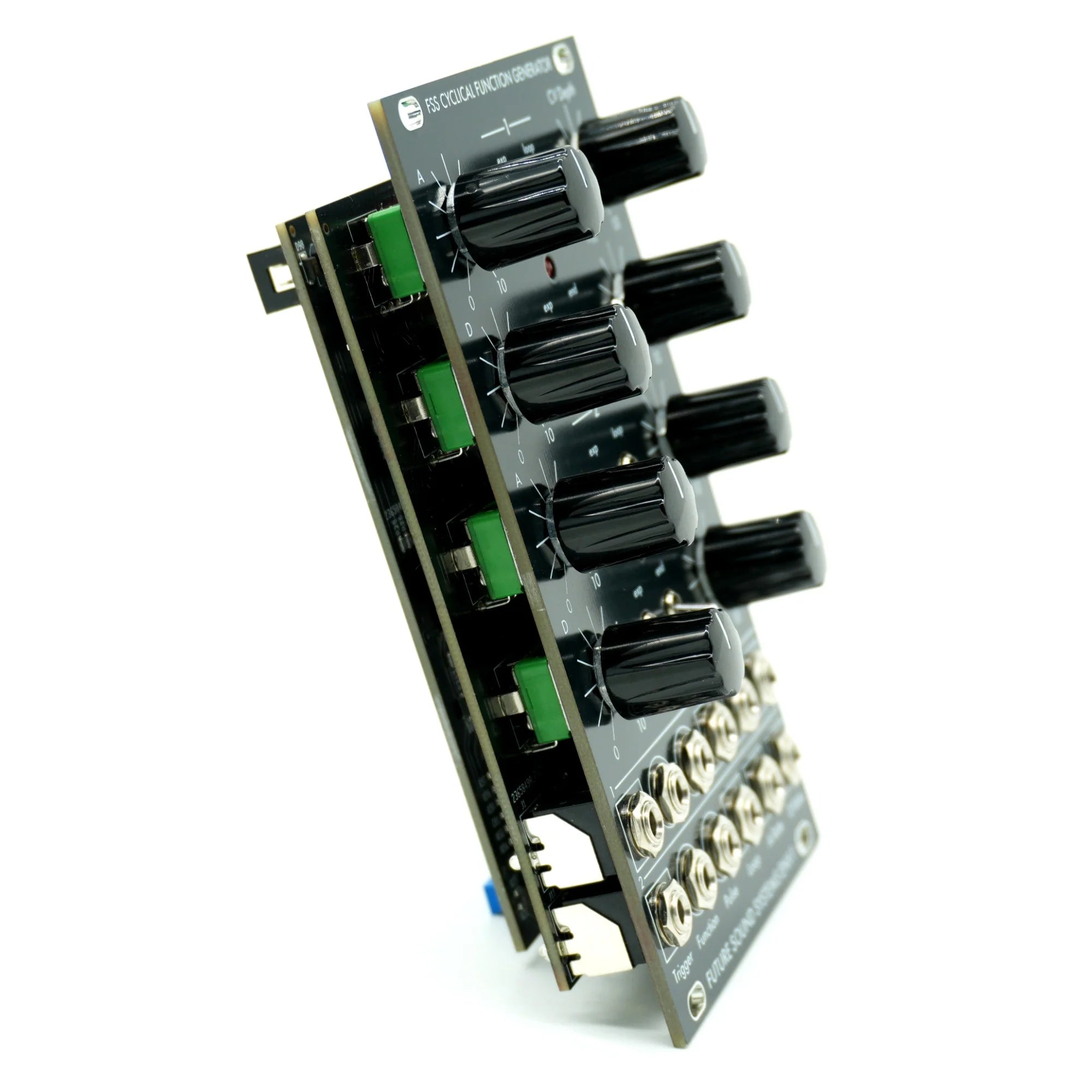

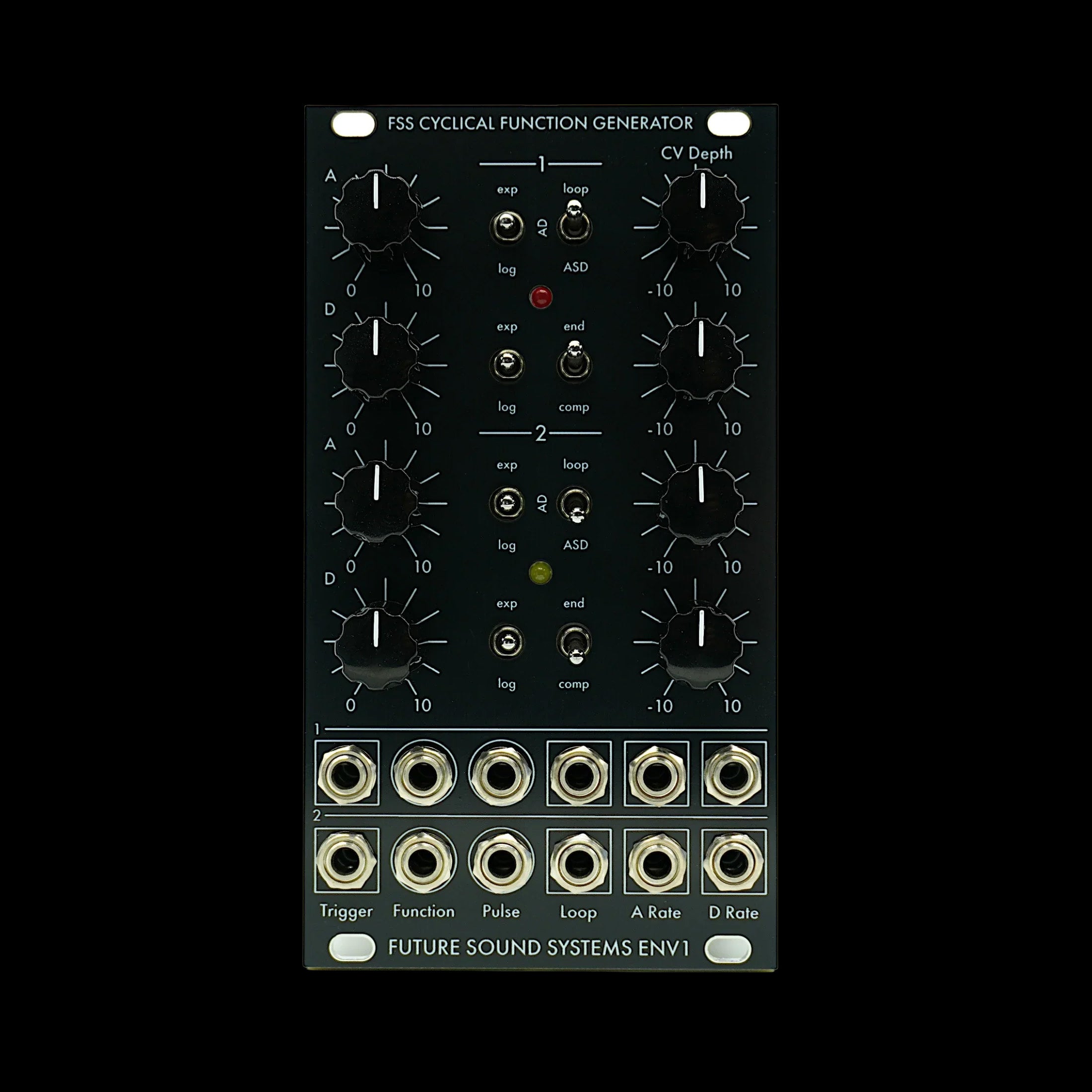

Future Sound Systems - ENV1 Cyclical Function Generator

The ENV1 from Future Sound Systems presents two Cyclical Function Generators, originally designed for Cric. Each CFG features: an Attack and... Read more Read more

Description

The ENV1 from Future Sound Systems presents two Cyclical Function Generators, originally designed for Cric. Each CFG features:

an Attack and Decay stage
different shape modes for the two stages (linear, exponential or logarithmic)
modulation over each stage's time
a Pulse output, switchable between an End of Decay pulse or a Comparator output which goes high when the CFG slope is above 50% of its total range
three modes of operation - looping, attack/decay and attack/sustain/decay
a Loop input, coupled with jumpers on the rear of the module to also force each CFG to trigger on an incoming pulse to this input

The CFG has been designed to cover a wide time range for both attack and decay stages, with their minimum times resulting in oscillations in the kHz range, up to their maximum times of several minutes per stage for a single cycle.

The Pulse source derived from each CFG can be switched between End of Decay (EoD) or Comp. In EoD mode, a brief trigger is sent as soon as the Decay stage has completed. This can be used to chain several CFGs together in a sequential fashion. Meanwhile, in Comp mode, a comparator sends a pulse which is high as long as the Slope is above the midpoint of its range, and low when it is beneath this midpoint. With Attack and Decay set to produce a perfectly triangular slope, a 50:50 square wave will be generated in Comp mode.

The CV Depth attenuverters follow the law that, for a positive voltage source at the corresponding destination, negative settings (anti-clockwise from 12 o’clock) reduce the stage times and positive settings (clockwise from 12 o’clock) extend the stage times. Without a jack present at the corresponding input, the CV Depth control becomes a fine tune for each stage, which is particularly useful if using the CFG as an audible oscillator.

As with many "West coast" inspired function generators, each CFG can cover a plethora of use cases:

low-frequency oscillator
envelope generator
frequency sub-divider / sub-harmonic generator
audio oscillator
pulse-train generator
gate/trigger delay and monostable

Technical Specifications:

Module width: 14HP
Module depth: 40mm behind 2mm FR4 front panel
Current consumption: 90mA on +12V, 70mA on -12V
Function voltage range: 0V to 10V
End of Decay pulse volage range: 0V to +10V
Comparator pulse voltage range: 0V to +5V
Minimum threshold for Trigger and Loop voltage inputs: +2.5V
