Description

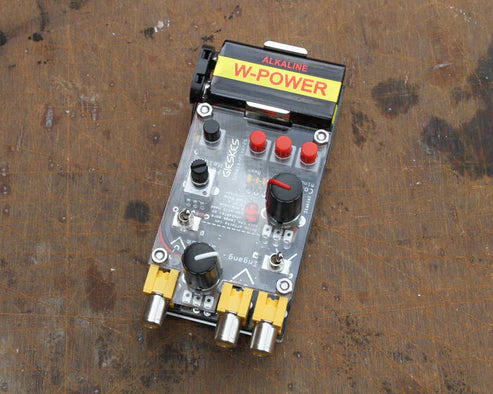

This is a simple analog video mixer based on the LM1881 sync separator. There is a cross fader, cross dissolve (50% in the center). And a fade effect, with 3 settings. The fade effect quickly charges a capacitor with the video signal, and slowly discharges it back into the video signal. Selecting the filter will filter out the color information, resulting in a black and white image. Because all video devices have slightly different video sync speeds the selected video will stand still on the screen and the other video signal will scroll horizontally. That is where the name schele comes from, which is dutch for cross eyed. It works by taking the sync of one of the two connected video signals, and pushing it under the output video signal. So blanking periods will partially be ignored, making it not 100 percent valid video signal. In the 2b version extra effects are added that when turned on can distort the video signal so much that it will be to bad for displaying it on a video projector. this can be solved by adding a time base corrector. or you can connect it directly to a analogue tv. These effects can very quite a bit depending on the device that you connect it to so try different devices for different results.

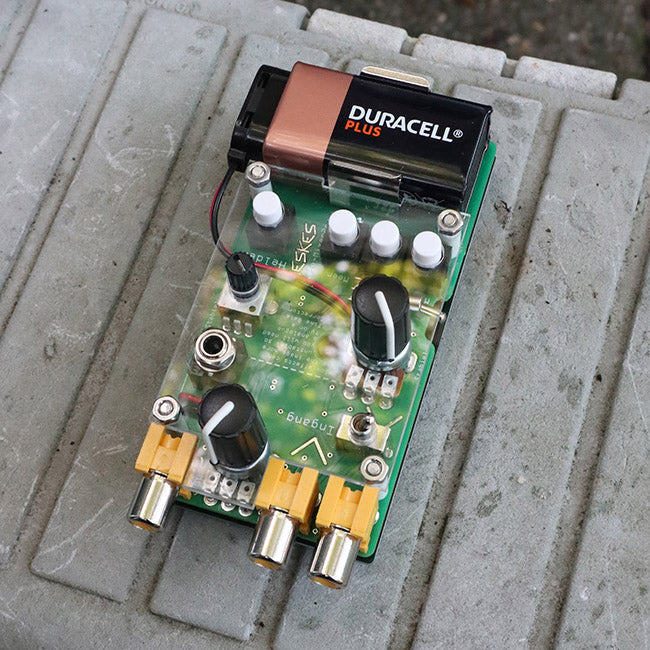

The Schele Mixer 2C is the same as the Schele Mixer 2B, but this one also has a 10V PP Audio input which you can connect Eurorack oscillators and use their signal to influence the brightness of the image.
