Description

3x MIA 1U Mixer, Attenuverter and Offset Utility

The Happy Nerding 3x MIA 1U combines six channels of mixing, attenuation, inversion and offset generation in a 1U Eurorack format. Its DC-coupled signal paths let you work with audio, control voltages or both at the same time.

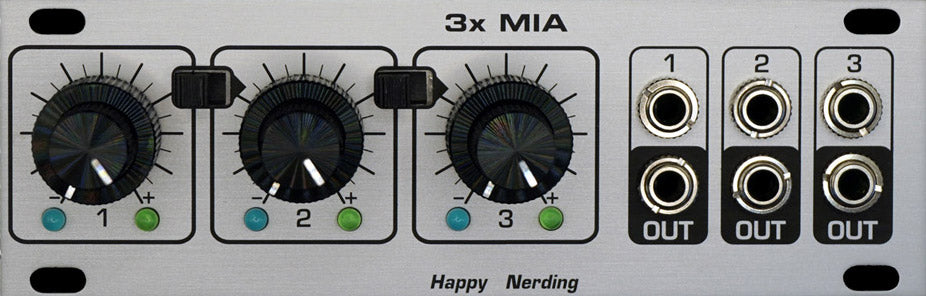

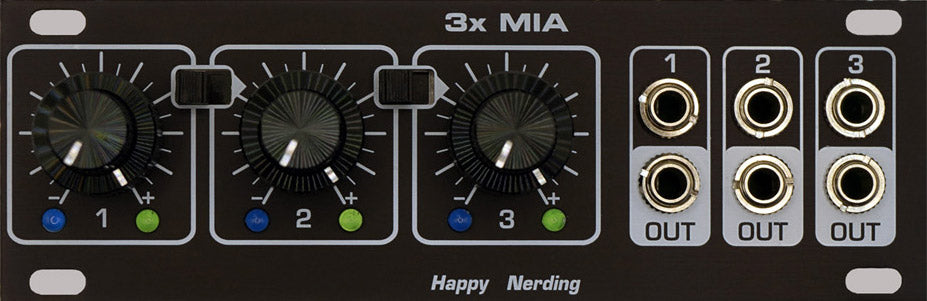

Three two-channel mixer blocks use dual concentric controls to scale signals and change their polarity. Use each pair separately or link sections to create 2-2-2, 4-2 or six-channel mixing configurations. Choose a silver or black panel to suit your setup.

Mixing and Signal-Control Features

• Six-channel attenuverting mixer: three blocks of two inputs for flexible signal mixing.
• DC-coupled operation: process audio, CV or a combination of the two.
• Dual concentric controls: inner knobs control the A inputs; outer knobs control the B inputs.
• Switchable section linking: mix a section with the next section for 2-2-2, 4-2 or six-channel configurations.
• Offset generation: an offset is normalled to each unpatched input.
• Scaling and polarization: adjust signal level and polarity to shape your patch.

Technical Specifications

• Format: 1U Eurorack
• Depth: 35mm
• Current draw: 80mA at ±12V
• Panel options: silver and black

Looking for the 3U Version?

Explore the Happy Nerding 3x MIA 6HP Eurorack mixer for the standard 3U format.
