Description

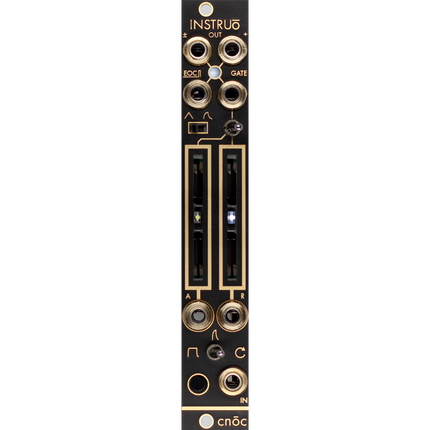

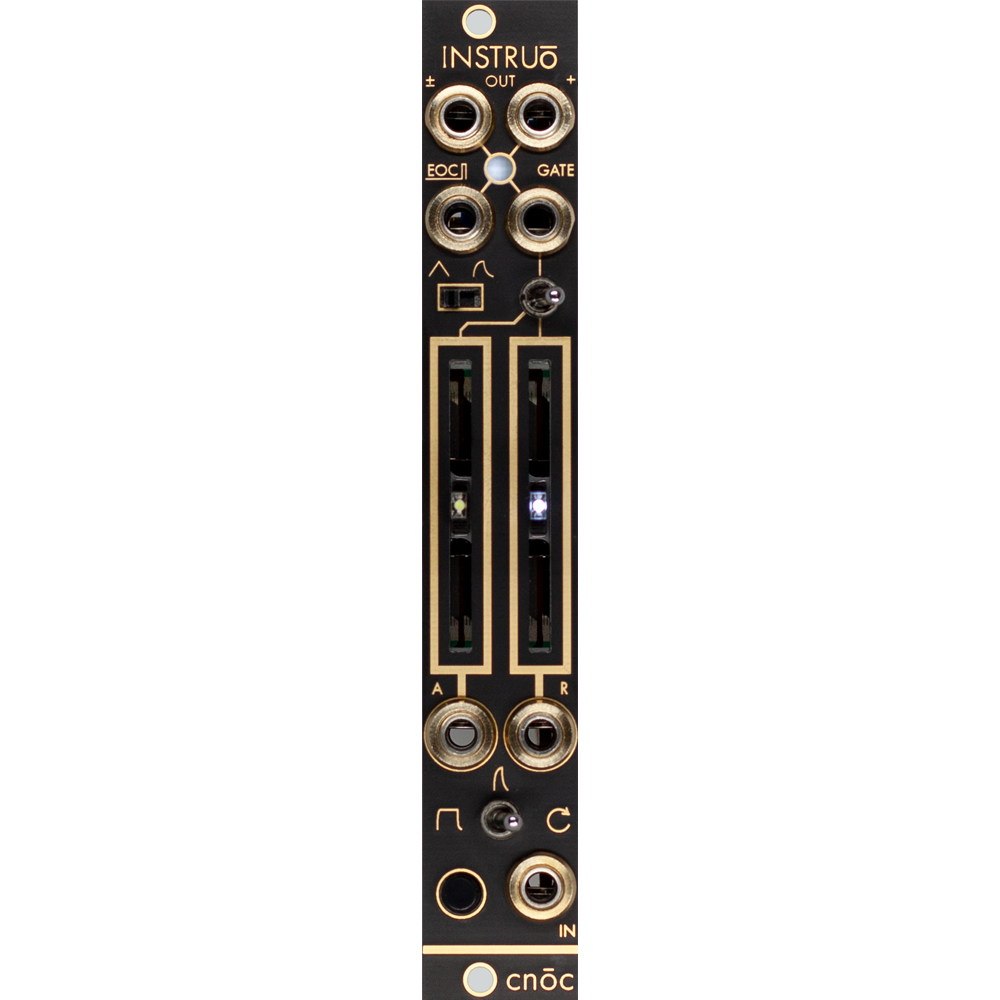

The Instruō cnōc is a fully analogue voltage-controlled two stage function generator. This style of function generator was pioneered by the West-coast mindset of sound synthesis and goes far beyond the functionality of a traditional envelope generator. With AR, ASR, and Looping modes, as well as its unipolar positive and bipolar outputs, cnōc finds its home in any patch.

Whether you need a general envelope generator, LFO, delayed gate signal, or a slew limiter to add portamento to your pitch sequences, cnōc fits the bill.

cnōc | noun (landscape) a natural elevation or raised landscape; an accumulated heap or mound

MANUAL

QUICKSTART GUIDE

Description

Size

4HP
Depth: 27mm

Power

+12V: 45mA
–12V: 40mA

Features

• AR, ASR, and Looping envelope modes
• External control over Attack and Release stages
• Unipolar positive and bipolar outputs
• Assignable gate output
• Manual trigger button
• Slew limiting functionality
• Two response curve settings
