Description

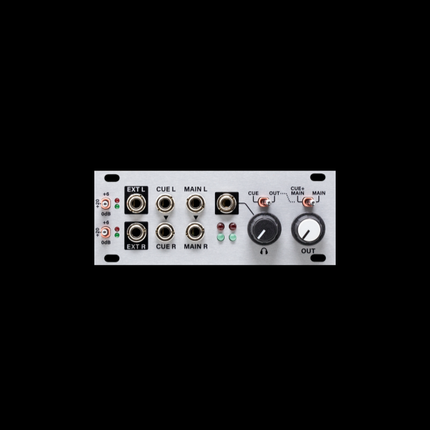

The Stereo I/O 1U is an all-in-one audio input/output module designed to bridge the gap between your Eurorack system and line-level devices. Whether you want to process external audio with your modules, monitor your patch with headphones, or connect your system to mixers or interfaces with line level, Stereo I/O 1U has got you covered.

Features

• Main output to balanced stereo line level with volume control (for line mixers, FX, speakers etc.)
• Stereo input from balanced line level with gain switches (for Grooveboxes, FX, Synthesizers etc.)
• ⅛” stereo headphone output with independent level control & source selection.
• Cue output for monitoring with headphones or summing with the main output.
• Pairs well in a 1U row with the Aux Mix 1U module

The Stereo I/O module connects to compatible Intellijel Cases & Modules using 6-pin or 3-pin connectors (included with the module) on the module’s rear. These multi-pin connectors are compatible with:

• Built-in Audio Jacks on Intellijel Performance & Palette Cases
• Stereo Line In Jacks / Stereo Line Out Jacks 1U modules
• X/Y I/O 1U

Because Stereo I/O 1U is designed specifically for audio (and not for CV mixing), it’s AC-coupled, and uses audio-grade, logarithmic attenuators for a smooth, even response across the entire volume range.
