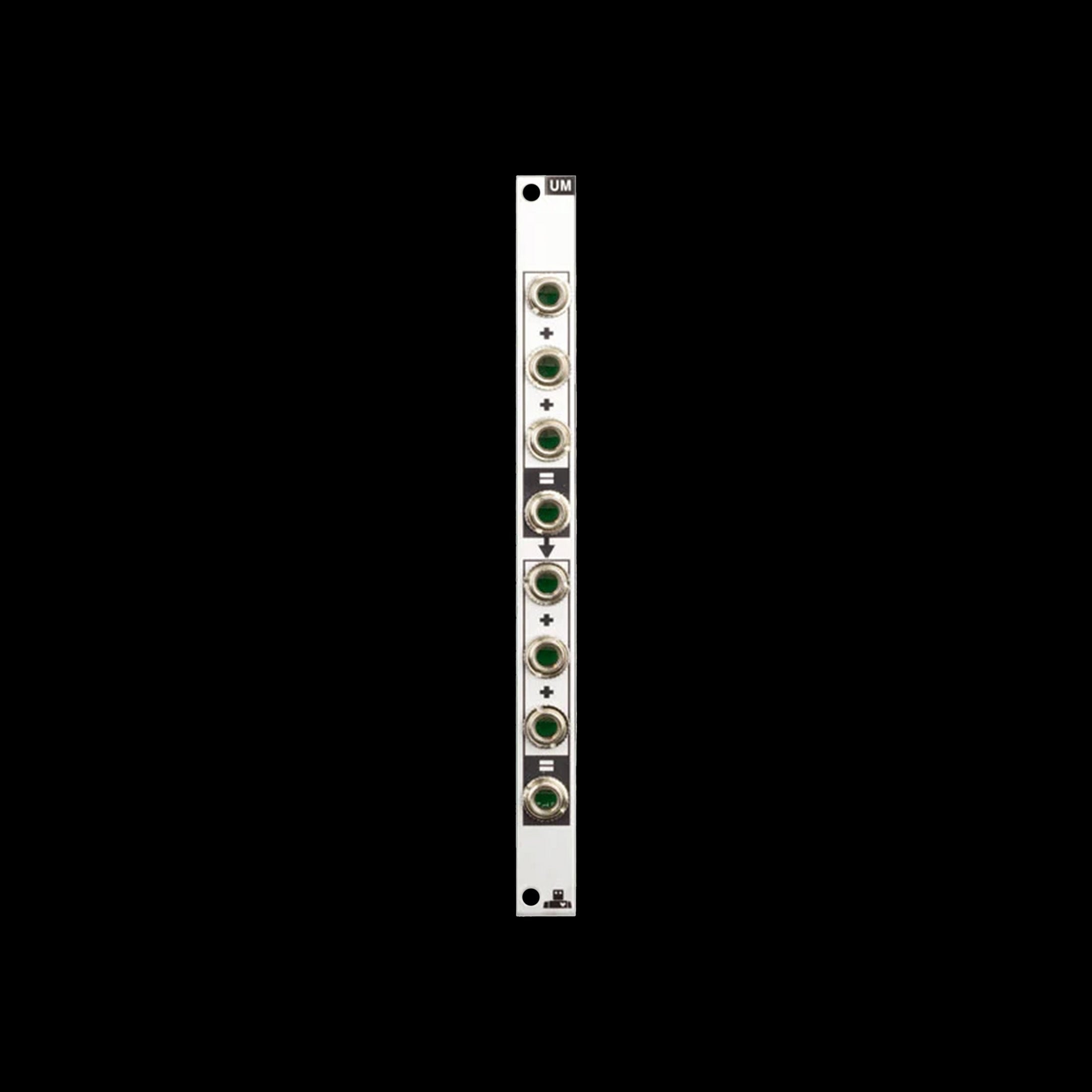

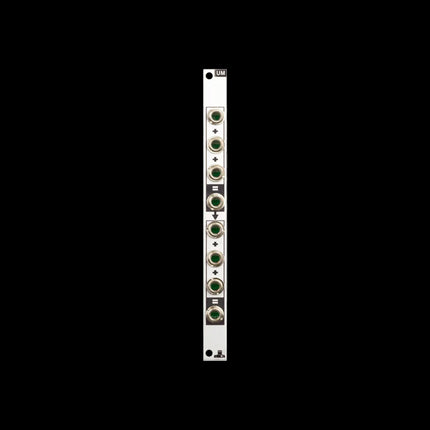

Intellijel Unity Mixer

Intellijel’s Unity Mixer can either be used as a dual 3:1 audio/CV mixer, or as a 6:1 mixer. The module contains six buffered inputs and two buffered outputs. Like most unity mixers, the top input is normalled to the bottom mixer (for 6:1 operation), and the input signals are devoid of any attenuation.

Unity Mixer Features

• Output of top mixer is normalled to the bottom mixer to give a 6:1 mix
• Outputs are phase correct (e.g. the output audio is not inverted)
• The input signals are neither boosted nor attenuated (unity mixing). their resultant sum is the output (e.g. if input 1: 2v, input 2: 4v, input 3: 3v then output1: 9v [input1 + input2 + input3 = 2v + 4v + 3v = 9v])
