Liquid Sky D-Vices - UFO System+

  • HP:

Liquid Sky D-Vices - UFO SYSTEM+ Includes: Liquid Sky D-Vices -V4CO Liquid Sky D-Vices - GLITHc Expendr Synthetic Sound Labs... Read more Read more

$1,699.00

      Description

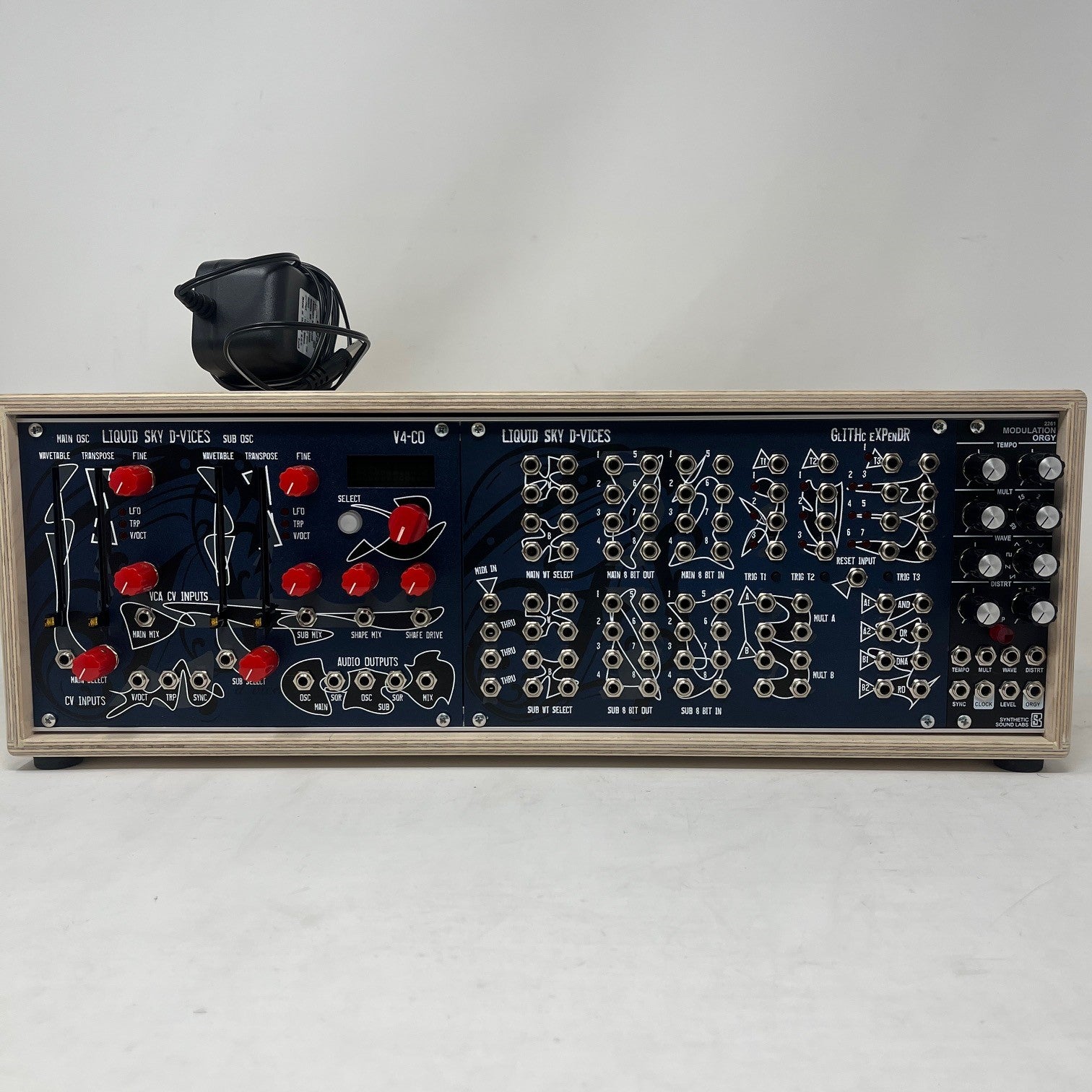

      Liquid Sky D-Vices - UFO SYSTEM+

      Includes:

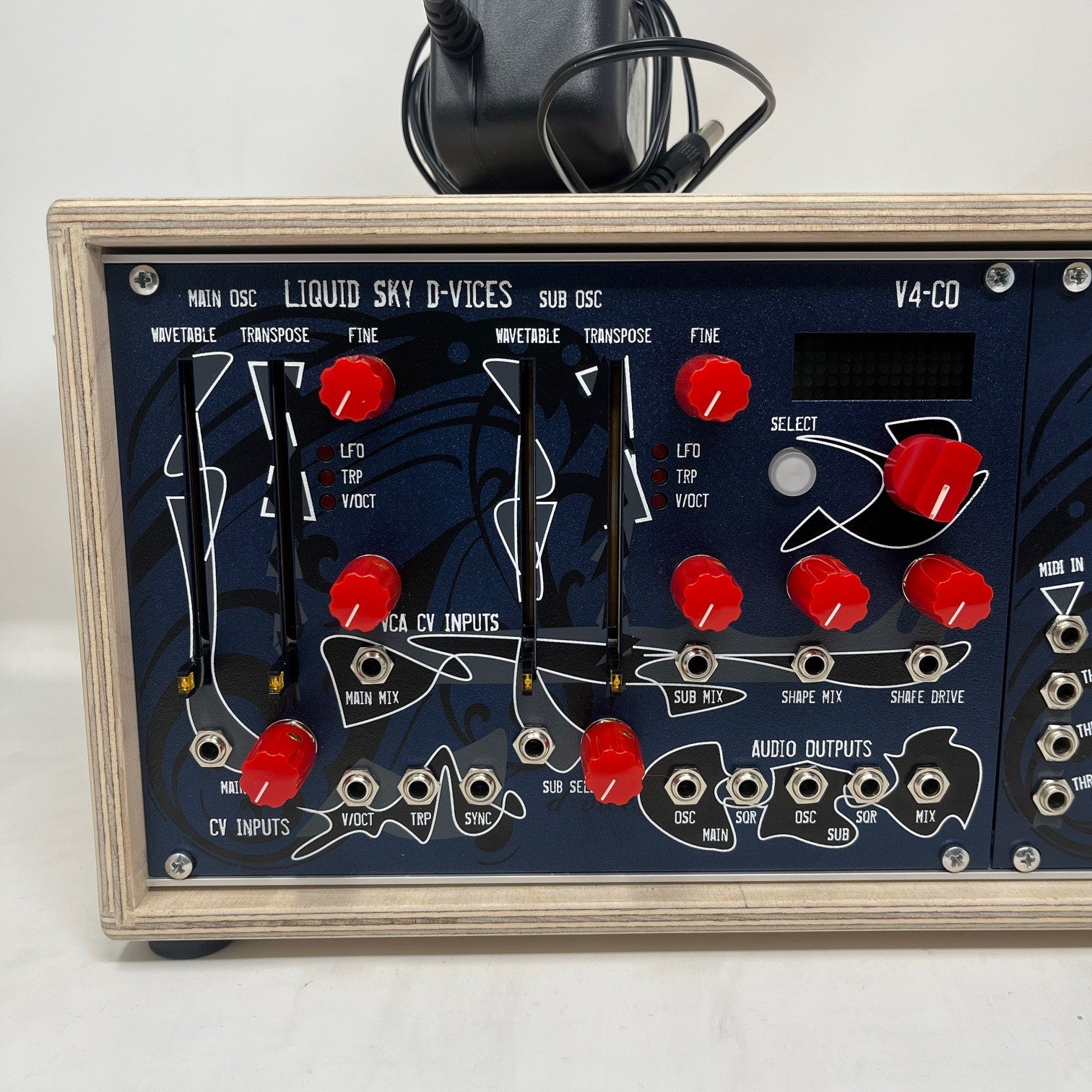

      Liquid Sky D-Vices -V4CO

      Liquid Sky D-Vices - GLITHc Expendr

      Synthetic Sound Labs - Modulation Orgy

      Doepfer - A-100LC3 Powered Case



      • dual 8-bit wavetable oscillator, each with separate sub-bass oscillator
      • 16×16 waveforms, different for each oscillator
      • each module has a base (16 x 6) set and an unique set (16 x 10) of waveforms
      • 8 octaves
      • detuning, hard sync, and waveform shuffle
      • analog VCA for each oscillator
      • analog overdrive controllable via VCA
      • audio / LFO mode for each OSC
      • quantizer (chromatic)
      • complex waveform LFO
      • single outputs for each OSC / SUBOSC and mix output (w/o SUBOSC)

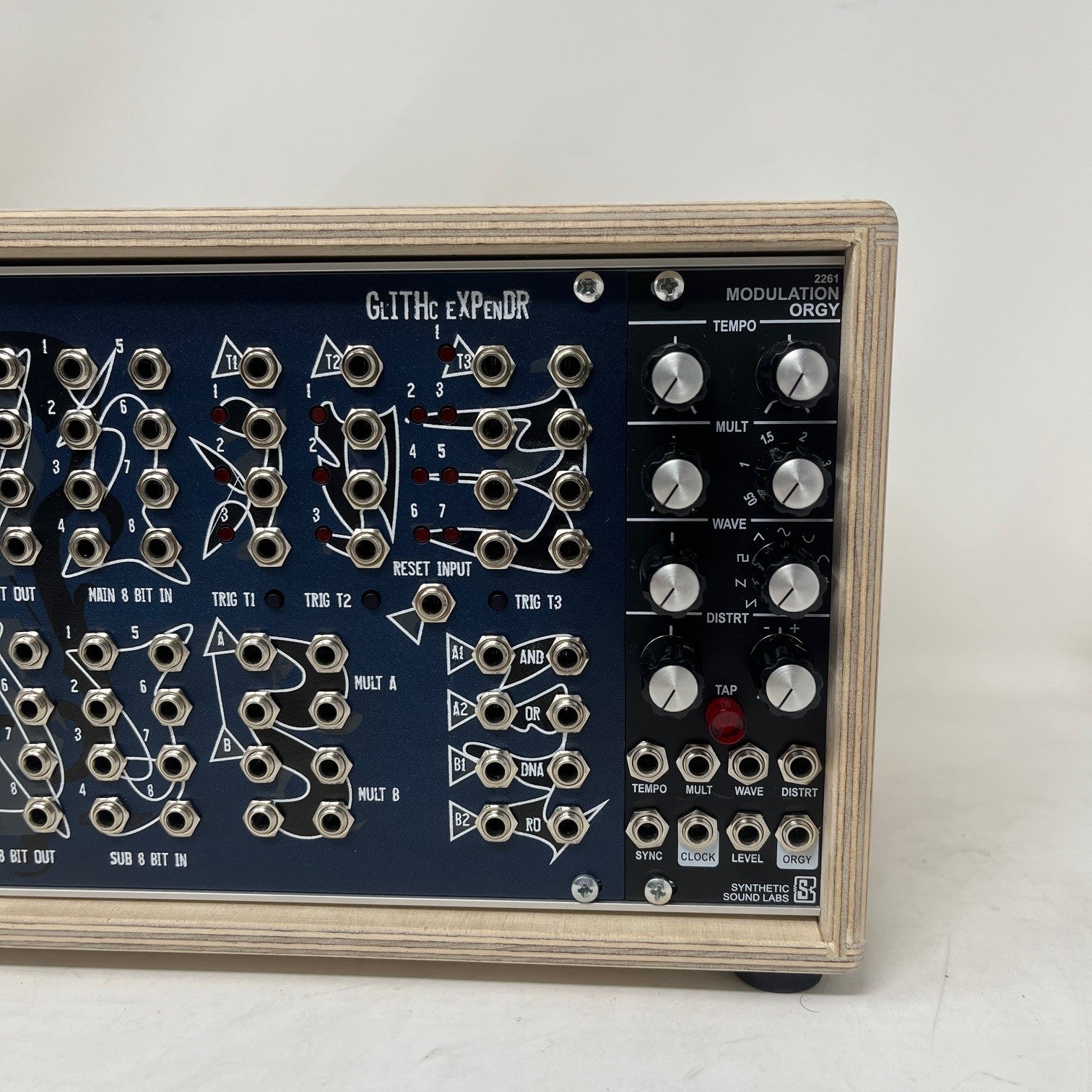

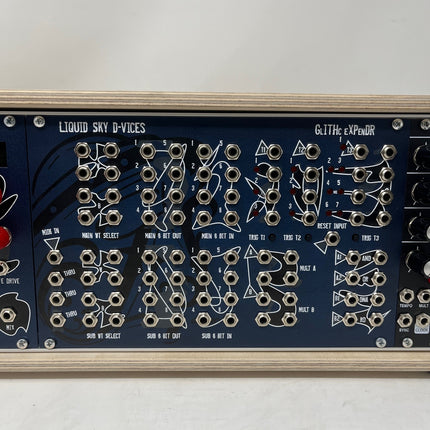

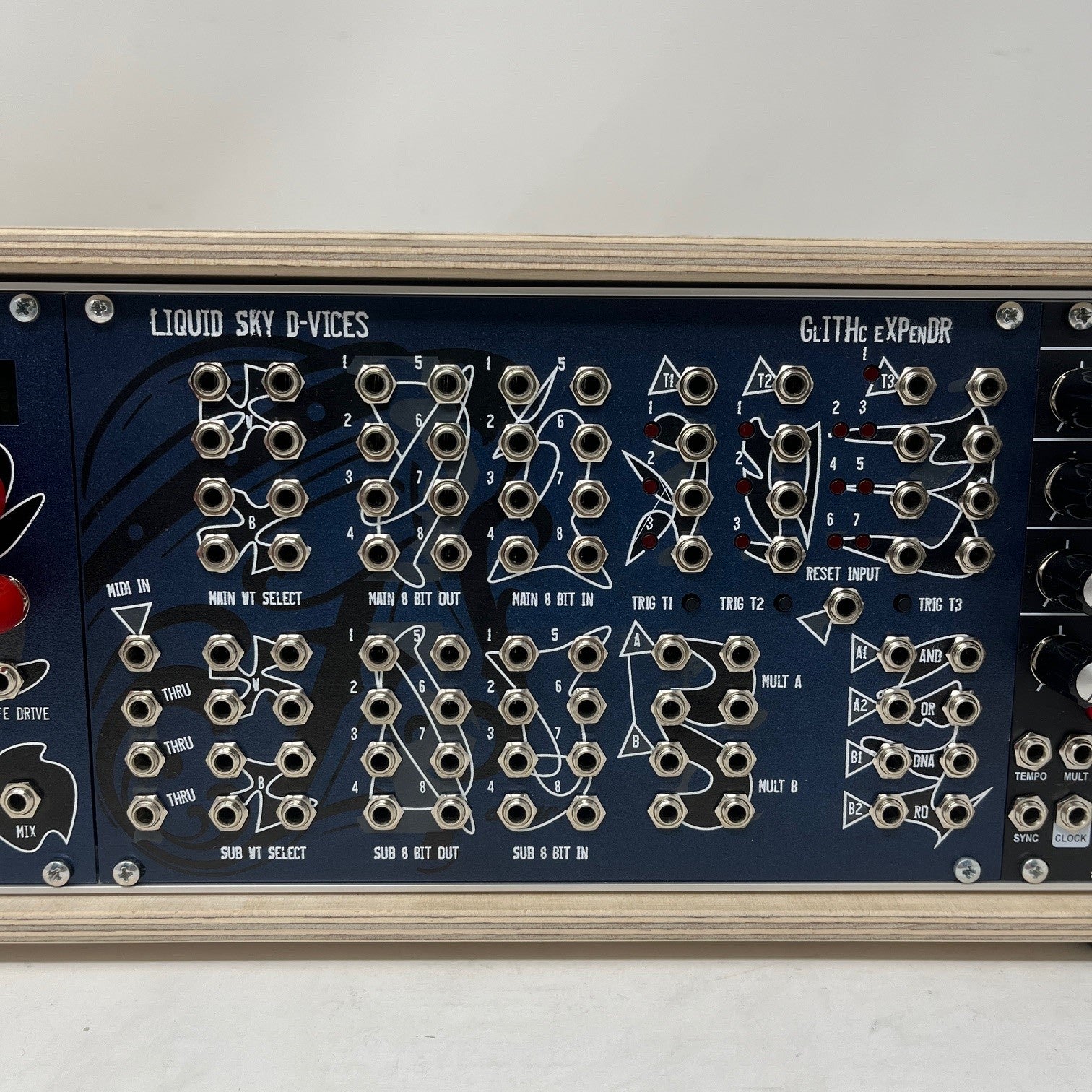

      Glithc Expendr or glitch expander

      GLITHc is an one of its kind circuit bending expander for the v4co which you can use without being in danger to destroy any hardware

      GLITHc is basically 4 modules in one

      - REAL circuit bending (you actually manipulate the internal routing)
      - Bit-manipulation of
      — individual bits for Wave and Bank select
      — individual bits of actual wavetable
      --- 4 Logic functions: AND/OR/NAND/NOR
      ---- 3 mini non consecutive sequencer for
      ----- BANK/WAVE Sequencing
      ------manipulating Wavetables
      -------- multiples
      --------- MIDI + 3 Thru

      opens up many door (of perception) via MIDI implementation

      MIDI implementation:
      Switching the waves/banks
      Switching the modes for LFO, TRP and V/OKT
      MIDI notes, pitch bend and vibrato on CC1
      Random selection of two wavetables from the active bank.
      The MIDI interface is placed on GLITHc and works exclusively with
      the V4CO


      Synthetic Sound Labs - Modulation Orgy

      The 2261 Modulation Orgy is a unique Low Frequency Oscillator (LFO) that offers unmatched modulation flexibility.  It features both manual and external voltage control over LFO Tempo (speed), tempo Multiplier, Waveform and Waveform Distortion.

      Eight Waveforms are produced, including Sawtooth, Ramp, Rectangle, Triangle, Sine, Sweep, Lumps and Random with morphing between adjacent waves.  Waveforms may be further modified using the Wave Distort controls.


      Doepfer - A-100LC3

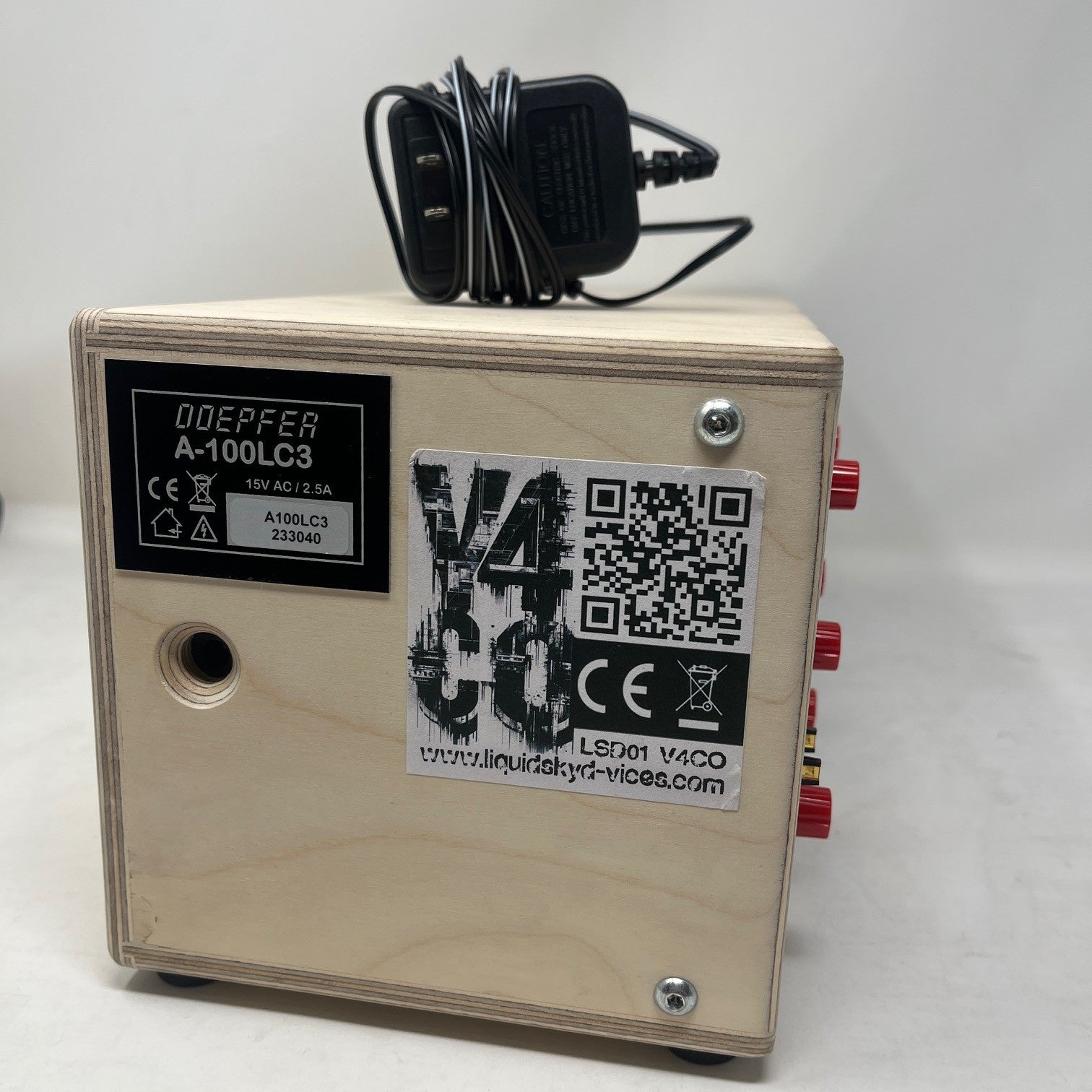

      This frame is the small version of the low-cost cases A-100LC6/LC9, which is identical in construction to the A-100LC6, but has only one row with 84HP available for the installation of modules. It is equipped with a power supply (1200mA). For space reasons, the power supply of DIY-Kit #1 is used, as there is not enough space for the "normal" power supply A-100PSU3. Power is supplied by an external 230 volt AC power supply (transformer) as in DIY kit #1, with a hole on the left side of the case for plugging in the power supply (the external power supply is not shown in the photos above). The housing is made of raw wood and can be painted in any desired colour with the aid of a paint spray can, for example.

      - Dimensions:

      • outside: approx. 445 (W) x 150 (H) x 160 (D)
      • inside: 1 x 84 HP x 3 U
