Description

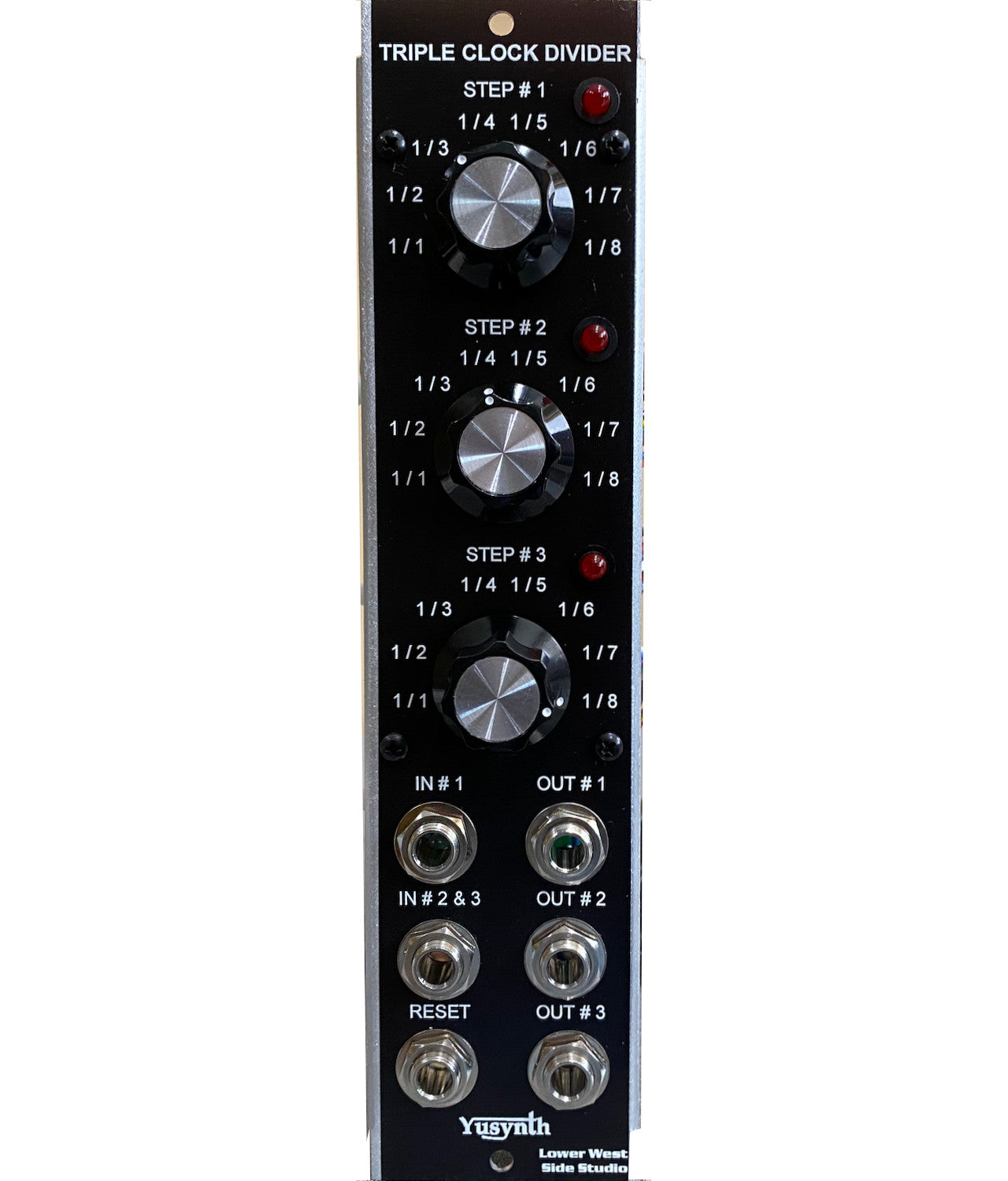

The Yusynth Triple Clock Divider takes an input signal and…. well…. divides it. 3 Outputs are available each with its own division setting. Divisions of 2, 3, 4, 5, 6, 7 and 8 are possible on each channel.
The signal from Input 1 is normalled to the second Input but can be overridden by connecting a second clock source. This source will then be used by Outputs 2 and 3.
A Reset Input is provided to synchronize the dividers.
What makes the Yusynth Triple Clock Divider interesting is that it offers odd divisions of the clock (3, 5 and 7) which provides more flexible options for timing setups and sequencing.
The Triple Clock Divider comes in a 1U width with 1? (25.4mm) knobs controlling 3 switches for selection of time division.
Feedback is provided through 3 LEDs.
The module operates at +/- 15V and comes with a Synthesizers.com style power connector.

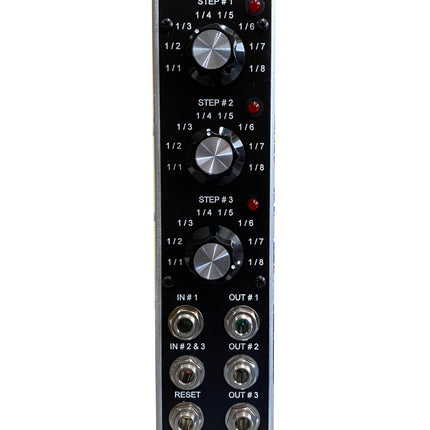

Lower West Side Studio - Yusynth Triple Clock Divider
$249.00Excl. VAT
Description
The Yusynth Triple Clock Divider takes an input signal and…. well…. divides it. 3 Outputs are available each with its own division setting. Divisions of 2, 3, 4, 5, 6, 7 and 8 are possible on each channel.
The signal from Input 1 is normalled to the second Input but can be overridden by connecting a second clock source. This source will then be used by Outputs 2 and 3.
A Reset Input is provided to synchronize the dividers.
What makes the Yusynth Triple Clock Divider interesting is that it offers odd divisions of the clock (3, 5 and 7) which provides more flexible options for timing setups and sequencing.
The Triple Clock Divider comes in a 1U width with 1? (25.4mm) knobs controlling 3 switches for selection of time division.
Feedback is provided through 3 LEDs.
The module operates at +/- 15V and comes with a Synthesizers.com style power connector.
