Mehr Music Machines - Crossfaded

  • HP: 14

Crossfaded is 14HP VCA-core utility for Eurorack Modular Synthesizers Features: Dual 2-channel crossfader/panner VCACV control over pan/fadeBuilt in LFO with... Read more Read more

$199.00

      Description

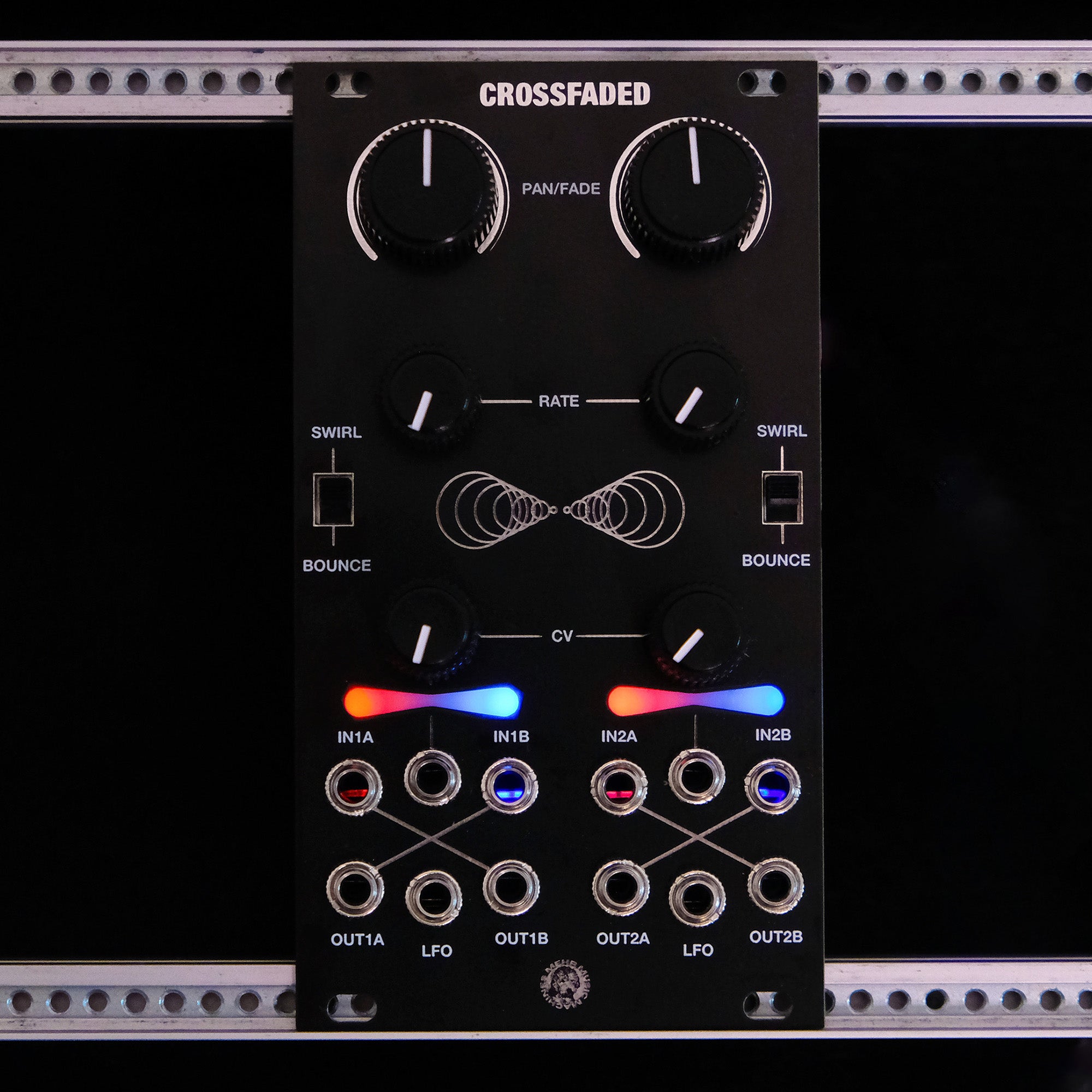

      Crossfaded is 14HP VCA-core utility for Eurorack Modular Synthesizers

      Features: Dual 2-channel crossfader/panner VCA
      CV control over pan/fade
      Built in LFO with two shapes: Swirl (triangle) & Bounce (square)
      Dedicated LFO output

      Each of the two crossfader sections has 2-input and 2-output. When using both signal inputs the output signal will present the opposing input signal. For example: Signal input 1A fades between outputs B to A. While simultaneously the opposite is true; Signal input 1B fades between outputs A to B.

      When only one input is used the outputs can be patched to a mixer's left + right channels for a classic "Auto-Pan" effect. Adjust the LFO's rate and depth to taste.

      VCA mode: for a classic VCA, patch a signal into either section's input, and utilize a single output. You now have a smooth linear.


      The CV knob determines the depth of the control voltage's effect on the crossfader. With no external CV patched in, the CV knob will control the depth of the on-board LFO. Patching an external CV overrides the LFO. However, the LFO can still be used independently via its output.

      To offset/adjust the zero point for CV control, each section has a trimmer potentiometer on the back of the PCB.

      Patch Ideas:
      Patch channel 1's LFO into IN1A
      Patch channel 2's LFO into IN1B
      Choose different rates for each LFO,
      Patch Out 1A to a filter (Poodleface?) cutoff
      Manually use the crossfade knob to scan between the two LFO's
      This creates interesting combinations and time-warping modulations.
