Description

Mehr Music Machines - Divvy

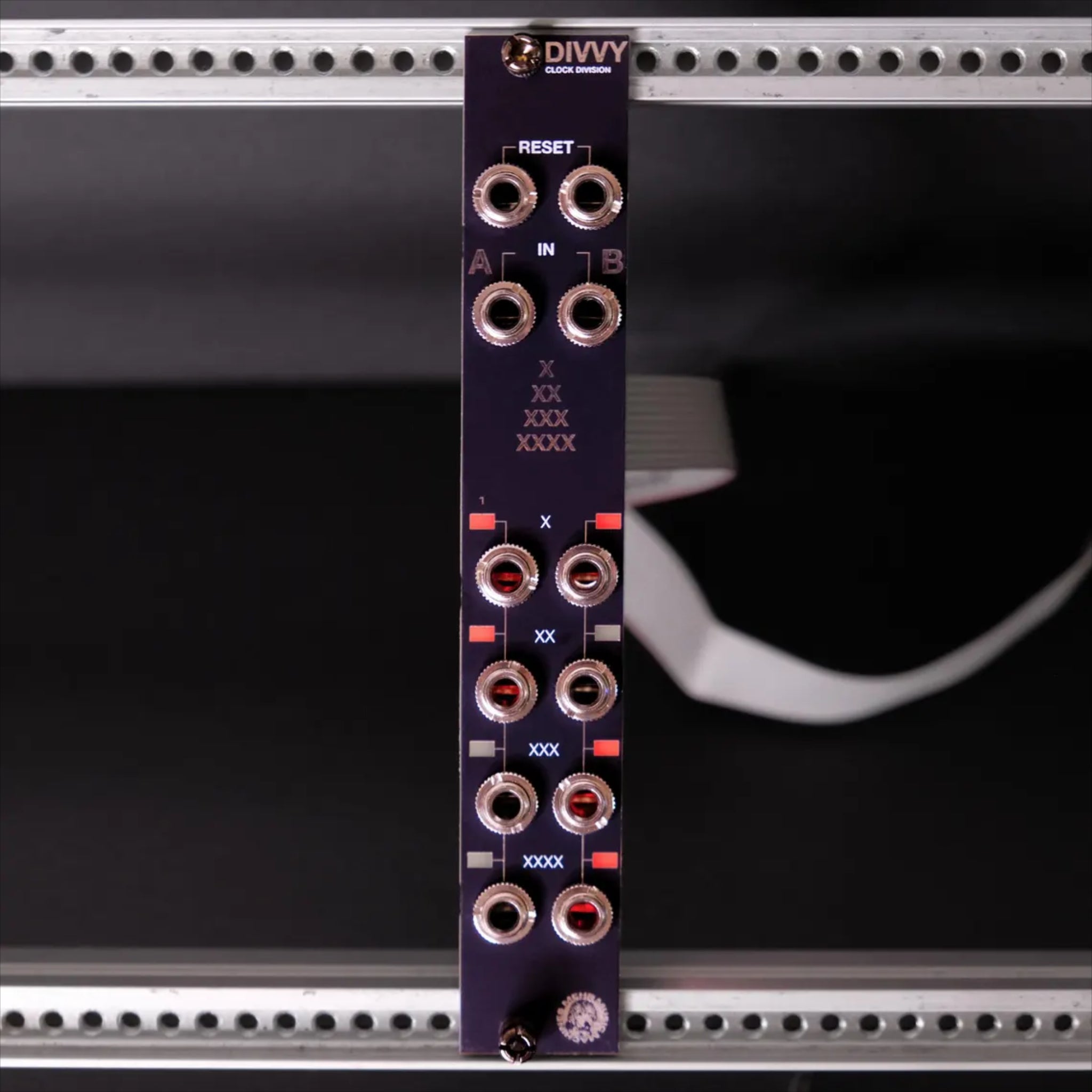

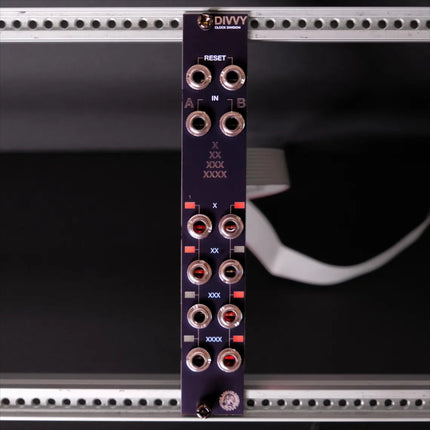

DIVVY - 8 HP - Dual Clock Divider

Divvy can be used as a dual clock divider, or single extended clock divider.

There is a normal connection from the largest division to the oppossing-side’s clock input.

For example XXXX on the B-side is connected to A-side clock input. The same is true for the opposite config; A’s XXXX -> B clock. When a patch cable is connected to either clock input; the normal connection is broken, allowing the module to be used in a dual configuration.

Side A’s divisions are as follows
X = /2
XX = /4
XXX = /8
XXXX = /16

Side B’s divisions are:
X = /8
XX = /16
XXX = /32
XXXX = /64

Click divisions are not just for clocks. Try patching the various clock division outputs into your favorite macro-vco, or open VCA’s/VCF’s. Thus allows the divisions to act as slower tempo-synced unipolar LFO.
