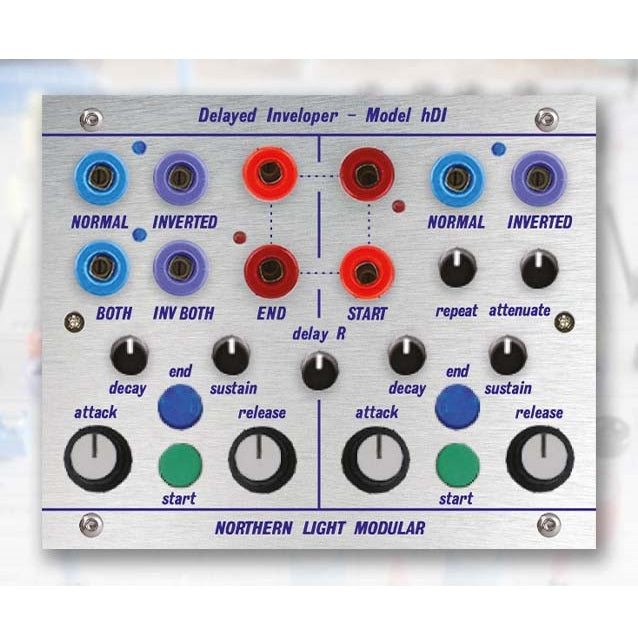

NLM - hDI [H-Module]

Dual looping ADSR/AD envelope

The missing link in our East Coast 4U system

Analog envelopes driven by a digital heart
Normal and Inverted outputs for each envelope
Max/Min mixed outputs with attenuated ENV2 lev
Looping functions per envelope or from one to the other both ways and combined
Manual Start/Stop buttons while in looping mode

Envelope 2 offers up tp 10 repetitions before producing end trigger.
Envelope 2 also sports an up to 6 second trigger delay that offsets it start.
The delay can be set to be the same length or be randomized in time every new cycle.

The outputs produce exponential curves at every stage of the envelope..
The purple outputs provide inverted curves, the blue one normal ones.
The BOTH outputs produce a MAX/MIN version .. see pictures
The red outputs produce the end triggers at 3ms length.

The h series modules require a h bracket to be mounted in a 1U space
