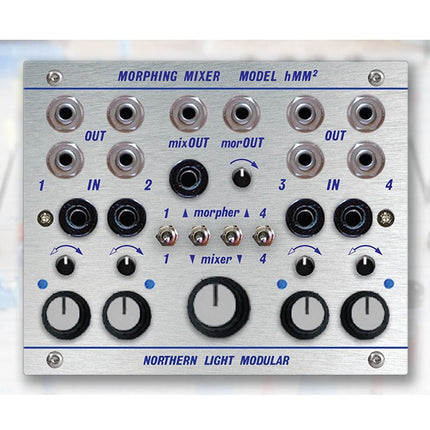

NLM - hMM2 [H-Module]
4 channel 16x gain mixer with selectable routing into a distortion stage
A 2164 based 4 channel mixer with extra spice added by the WaveMorpher borrowed from the RSF Kobol.
The mixer has 4 audio inputs , 4 linear CV controlled VCAs and a dedicated Morpher section .
The Morpher has its own output and can be fed back into another channel of the mixer.
The new version adds dedicated VCA outputs for each channel , a mute position for the routing switch, LED level indication for both offset and CV plus new panel graphics.
Every input has unity gain at the 12 o’clock position (detent) and 2x gain at fully CW.
Channel cascading allows for 16x gain which is perfect to boost low level Buchla signal to Eurorack or feed high impedance sources like the 2SR and the clock detector of the 2OC
The h series modules require a h bracket to be mounted in a 1U space
