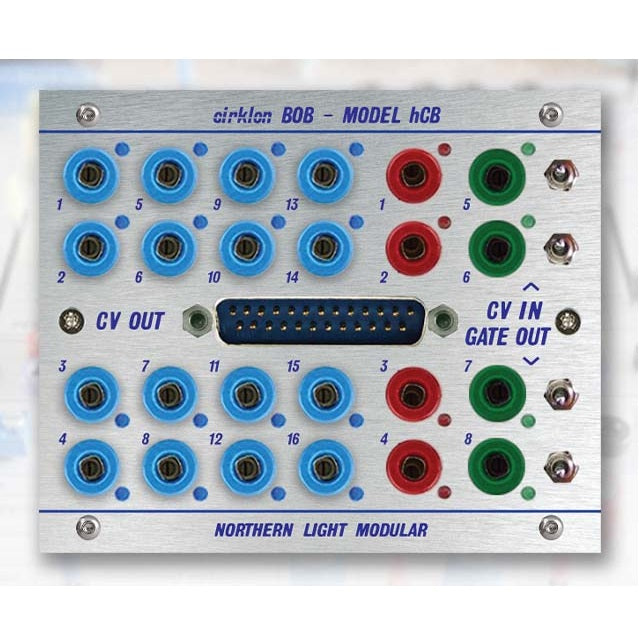

Northern Light Modular - cirklon BOB – Model hCB
A 24 channel break out box for the mighty Sequentix Cirklon sequencer.
The module works as an extension to the cvIO board that needs to be present in the Cirklon.
This is not a midi convertor but a fully analog bi-directional interface.
All out and inputs are buffered and feature a level indicator LED to make easy to determine the signal present at the port.
16 CV channels feature an on board automatic 1V to 1,2V conversion
4 Gate channels come with a 5V to 10V booster
4 more sockets provide 4 additional boosted gates or can be switched to function as CV to CC conversion
The h series modules require a h bracket to be mounted in a 1U space
