Description

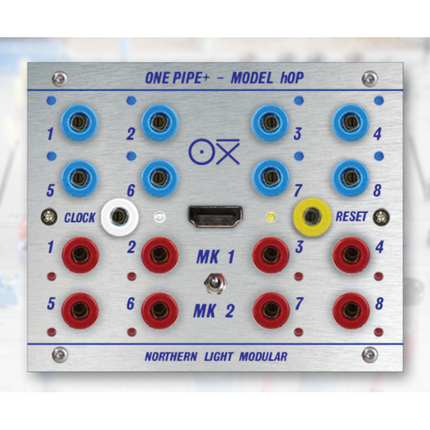

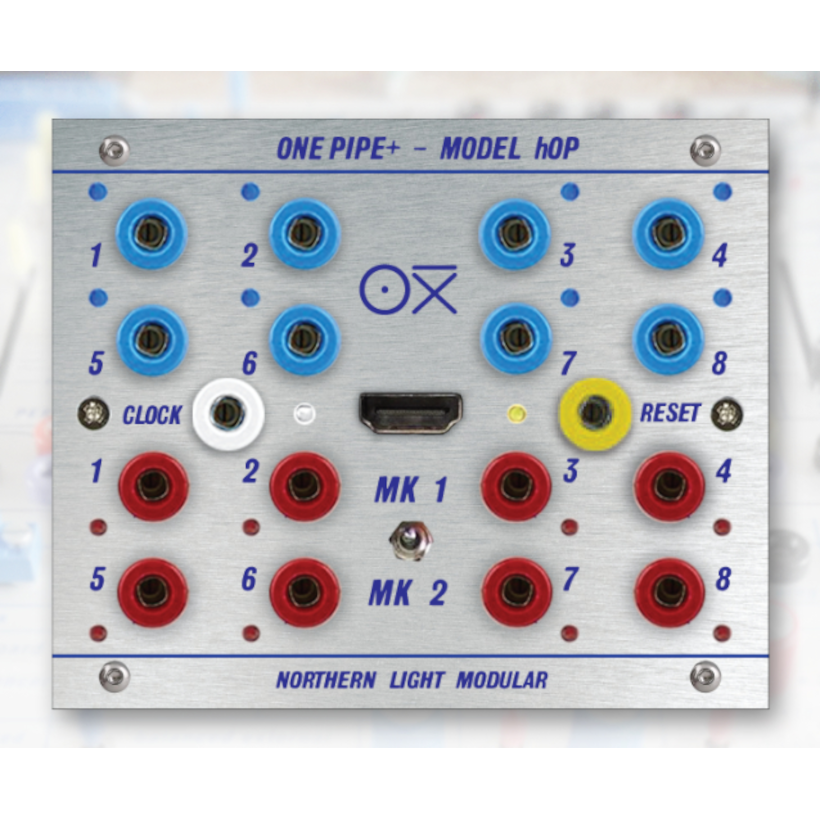

An 18 channel interface module for the OXI ONE sequencer

8 channels of 0-12V continuous controls
8 channels of 10V or 14V gates
Clock and START/stop as inputs for MK1 and outputs for MK2

All signals 200e save and illuminated by low noise LEDs.

This is NOT a passive adapter but an 18 channel level shifter and scaler with 0.05V precision
MK1 and MK2 both work and will have either input or output clock and reset modes based on the OXI ONE used

The MK Switch acts as a clock mute and reset breaker
Make sure to select the right version for your sequencer

The h series modules require a h bracket to be mounted in a 1U space
Combine it with another h series module for the best experience and get a custom panel made for you
