NLM - 2SR [200r]

Northern Light Modular!

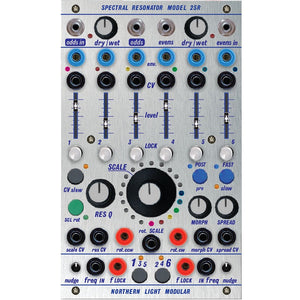

The Spectral Multiband Resonator , originally from 4ms Company , is an innovative resonant filter which can process audio like a classic filter bank, ring like a marimba when plucked/struck, vocode, re-mix tracks, harmonize, output spectral data, quantize audio to scales, and much more…
A gorgeous ring of colored lights displays the frequency of each filter, as well as the levels and current scale selection(s).
For the Buchla compatible version we invented a switch matrix that keeps the interface experience of the e series.
CV inputs and Envelope follower outputs have been adapter to Buchla standards.
We also added two simple audio mixers so the effect can be added gradually without an additional mixer.

Version 5.1.1:

• Bug Fix:
  • Env Outs 3 and 4 would sometimes output steady 8V after booting. Fixed.

• Improvements:
  • Freq jacks have less slew
  • Locked Q values are loaded from saved slots

Audio firmware file
